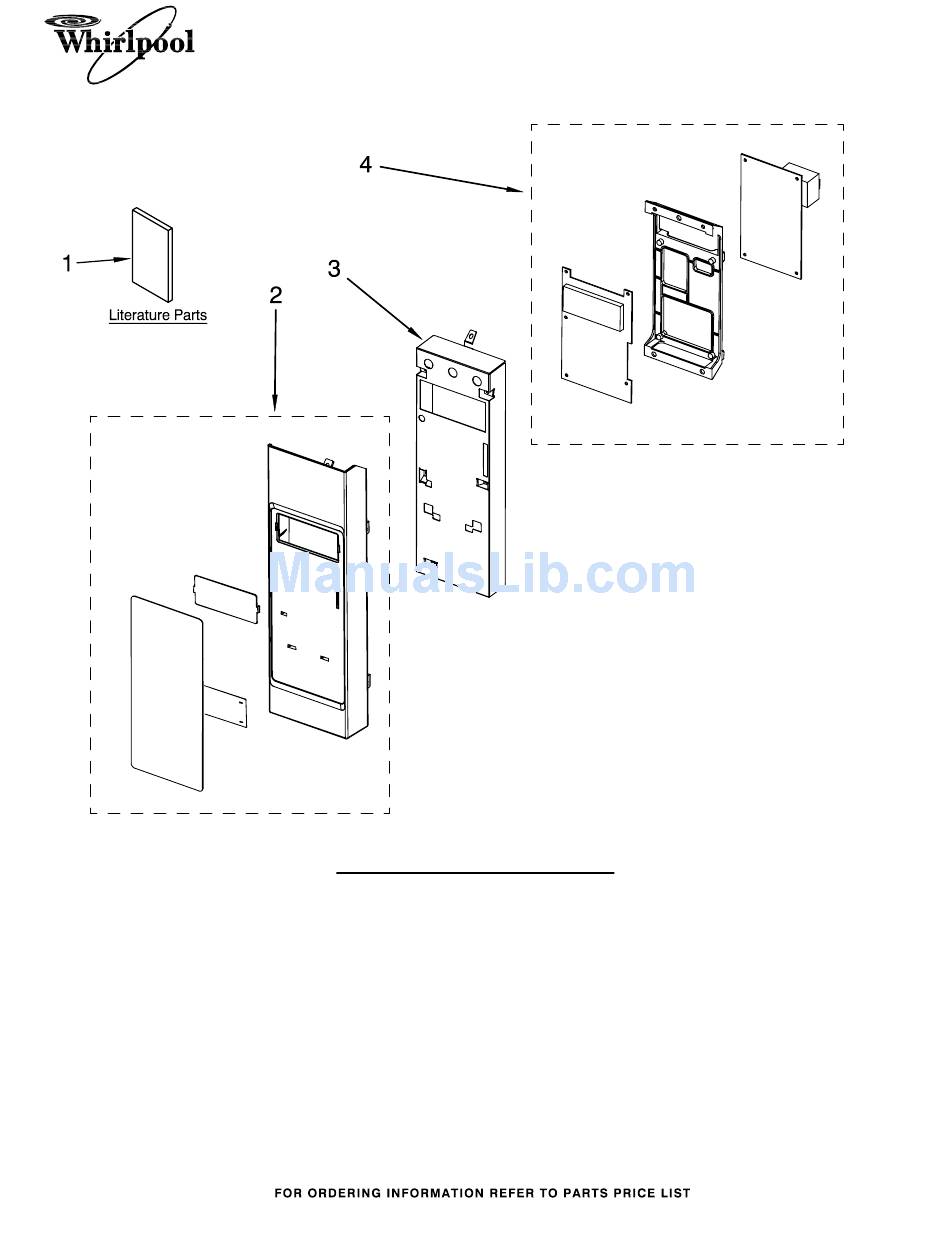

CONTROL PANEL PARTS
For Models: MH2175XSB1
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
W10110894 U & C Guide
W10110899 Tech Sheet
8205888 Cook Guide Label
8206587 Install,Instruct.
2
Panel Asy, Control
Includes Lens and
Membrane Switch
8206621 Black
3 W10156814 Bracket, Control
4
8206619 Microcomputer
(Black)
1
Microwave Oven/Hood
1.7 Cu. Ft.
Part No. W10158785 Rev. A
Advertisement
Related Manuals for Whirlpool MH2175XSB1
Summary of Contents for Whirlpool MH2175XSB1
-
Page 1: Control Panel Parts
CONTROL PANEL PARTS 12−07 Litho in U.S.A. (rek) For Models: MH2175XSB1 (Black) Illus. Part DESCRIPTION Literature W10110894 U & C Guide W10110899 Tech Sheet 8205888 Cook Guide Label 8206587 Install,Instruct. Panel Asy, Control Includes Lens and Membrane Switch 8206621 Black... -
Page 2: Door Parts
DOOR PARTS For Models: MH2175XSB1 (Black) Illus. Part DESCRIPTION COMPLETE DOOR 8206395 Black 2 W10138802 Screw W10158785... - Page 3 INTERIOR AND VENTILATION PARTS For Models: MH2175XSB1 (Black) W10158785...
- Page 4 INTERIOR AND VENTILATION PARTS For Models: MH2175XSB1 Illus. Part 8206387 Reflector, Lamp 8206232 Lamp 8206374 Holder, Lamp 8206229 Filter, Grease 8206386 Plate, Bottom 8206376 Glass, Lamp 8206375 Holder, Glass 8206345 Switch, Micro 8206347 Switch, Micro 10 W10156812 Spring, Interlock 11 W10156811 Plate, Cam...
- Page 5 8206626 Sensor, Humidity 4393681 Lamp 8206371 Cover, Side Inlet 6 W10114550 Motor, Fan Assy 7 W10156816 Shield 8206627 Air Guide W10158785 AIR FLOW PARTS For Models: MH2175XSB1 (Black) Illus. Part DESCRIPTION 8206230 Filter, Charcoal 10 W10110862 Mounting, Nut (2) 8206625 Channel, Air...
- Page 6 Part DESCRIPTION 8206389 Cover, Inlet Includes Nails and Bushings 8206118 Hook, Rack (4) 3 W10138801 Nails/Bushings (4 of each) TURNTABLE PARTS For Models: MH2175XSB1 (Black) Illus. Part DESCRIPTION 4393799 Turntable 8206227 Ring, Turntable 8206228 Driver, Turntable 8183953 Motor, Turntable Illus.
- Page 7 CABINET AND INSTALLATION PARTS Illus. Part DESCRIPTION 8206315 Plate, Mounting 8206385 Support, Wire Clip 8206442 Damper Assembly 8206388 Cord, Power W10158785 For Models: MH2175XSB1 (Black) Illus. Part DESCRIPTION Case, Outer 8206338 Black Grille, Vent 8206391 Black 7 W10157207 Plate, Damper Illus.
