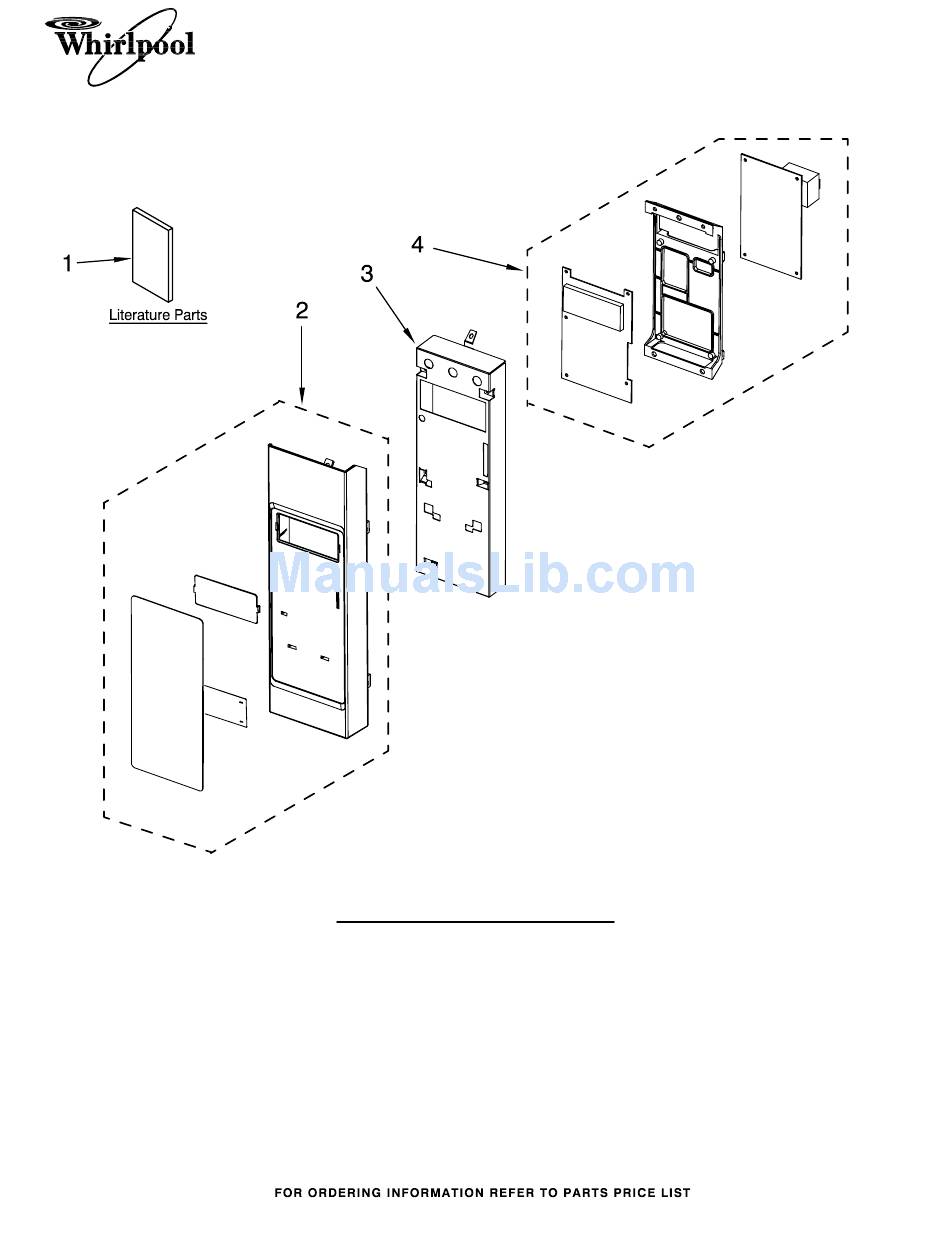

CONTROL PANEL PARTS
For Models: MH1160XSS1,MH1160XSY1,MH1160XSD1
(Stainless) (Designer Universal Silver) (Universal Silver)
Illus.
Part
No.
No.
1
W10110881 U & C Guide
W10132038 Tech Sheet
8205879 Cook Guide Label
8206587 Install,Instruct.
2
W10164600 SS & SY Models
W10164606 SD Model
3 W10156814 Bracket, Control
4 W10164590 Microcomputer
DESCRIPTION
Literature
Panel Asy, Control
Includes Lens and
Membrane Switch
1
Microwave Oven
1.7 Cu. Ft.
Part No. W10165273 Rev.A
