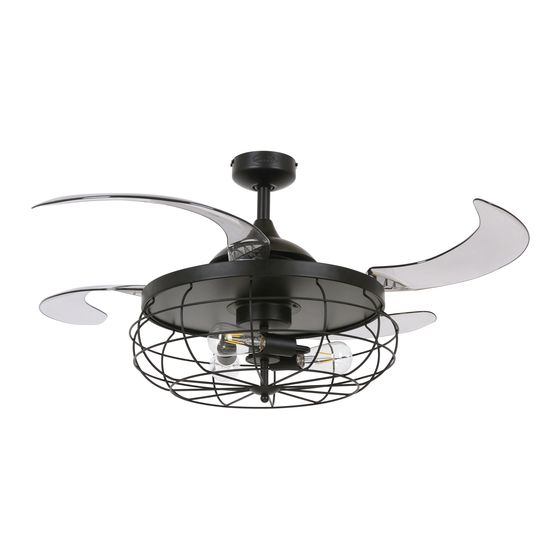

- Page 1 FANAWAY INDUSTRI CEILING FAN • INSTALLATION • OPERATION • MAINTENANCE • WARRANTY INFORMATION CAUTION READ INSTRUCTIONS CAREFULLY FOR SAFE INSTALLATION AND FAN OPERATION. V1.0 AU (09/2019)
-
Page 2: Safety Precautions
Fanaway Industri Installation Instructions THANK YOU FOR PURCHASING Thank you for purchasing this quality Fanaway product. To ensure correct function and safety, please read and follow all instructions carefully before assembly, installation and use of this ceiling fan. Please keep instructions for future reference. - Page 3 Fanaway Industri Installation Instructions Example: If a fan is connected to a circuit that can be isolated via an all-pole safety switch at the switchboard, then this is considered to be an all-pole disconnection to the ceiling fan electrical circuit, meeting the requirements of clause 7.12.2 of AS/NZS 60335.1.
-
Page 4: Parts List
Fanaway Industri Installation Instructions PARTS LIST • Unpack your ceiling fan carefully. Remove all parts and hardware. • Lay out all the components on a smooth surface and make sure there are no components missing before assembling. If parts are missing, return the complete product to the place of purchase for inspection or replacement. -
Page 5: Installing The Mounting Bracket
Fanaway Industri Installation Instructions Mounting bracket x 1 Retraction mechanism x 1 Canopy screws x 4 Light kit base x 1 Canopy x 1 Light kit x 1 Down rod x 1 Mounting screws x 2 Down rod coupling housing cover x 1... -
Page 6: Installing The Fan
Fanaway Industri Installation Instructions INSTALLING THE FAN INSTALLING THE DOWN ROD (Fig. 4) Remove the ball joint (2) and dowel pin from the down rod (5) by loosening the set screw (3). Do not discard keep these parts, they are required to reassemble later. -
Page 7: Light Kit Installation
Fanaway Industri Installation Instructions LIGHT KIT INSTALLATION LIGHT KIT INSTALLATION (Fig. 6 & 7) 1. Loosen the screw (1) from the fan bracket. Align the two slot screws with the keyhole slots (2) of the light kit bracket. (Fig. 6) 2. -
Page 8: Electrical Wiring Diagram
Fanaway Industri Installation Instructions ELECTRICAL WIRING DIAGRAM WARNING: FOR YOUR SAFETY ALL ELECTRICAL CONNECTIONS MUST BE UNDERTAKEN BY A LICENSED ELECTRICIAN. NOTE: AN ADDITIONAL ALL POLE DISCONNECTION SWITCH MUST BE INCLUDED IN THE FIXED WIRING. NOTE: Wiring diagram includes the light kit wiring. The light wiring diagram and switch is omitted when no light kit is used with the ceiling fan. - Page 9 Fanaway Industri Installation Instructions USE WITH REMOTE WIRING DIAGRAM: (REMOTE sold separately) Ensure the motor earth wire is connected to the single earthing terminal block “2” in the diagram (Fig. 8), for (Fig. 9 and Fig. 10) 1/ Remote without quick connectors (manual wiring) Fig.
-
Page 10: Finishing The Installation
Fanaway Industri Installation Instructions FINISHING THE INSTALLATION • After completing the electrical connection at the mounting bracket terminal block, connect the ceiling fan wiring via the quick connector plug. • Ensure the earth wiring is secure and correct, by performing an earthing continuity test from the fan’s accessible metal body and lamp base back to the earth terminal at the terminal block on the mounting bracket. -
Page 11: After Installation
Fanaway Industri Installation Instructions REVERSING FUNCTION (Fig. 13) Your ceiling fan can operate in either summer or winter mode. SUMMER Mode: The reverse switch should be in the SUMMER position to rotate the fan in an anticlockwise direction. The airflow will be directed downwards, for cooling in summer. -
Page 12: Care And Cleaning
To clean the fan blade, wipe with only a damp clean cloth with NO organic solvents or cleaners. • The motor has a permanently lubricated ball bearing so there is no need to oil. TECHNICAL INFORMATION 48’’ fan – fanaway industri Fan Models LD-48’’FAN IN Rated Voltage... - Page 13 In the event of a service being required, please call the Lucci Warranty Service Hotline acting as the service agent for Fanaway on 1800 602 243 between 9AM and 5PM (E.S.T) Monday to Friday. Ensure you have the following details on hand.
- Page 14 CONTACTS: Contact Lucci Warranty Service Hotline acting as the service agent for Fanaway on 1800 602 243 between 9AM and 5PM (E.S.T) Monday to Friday, or go to Website: for more information.
