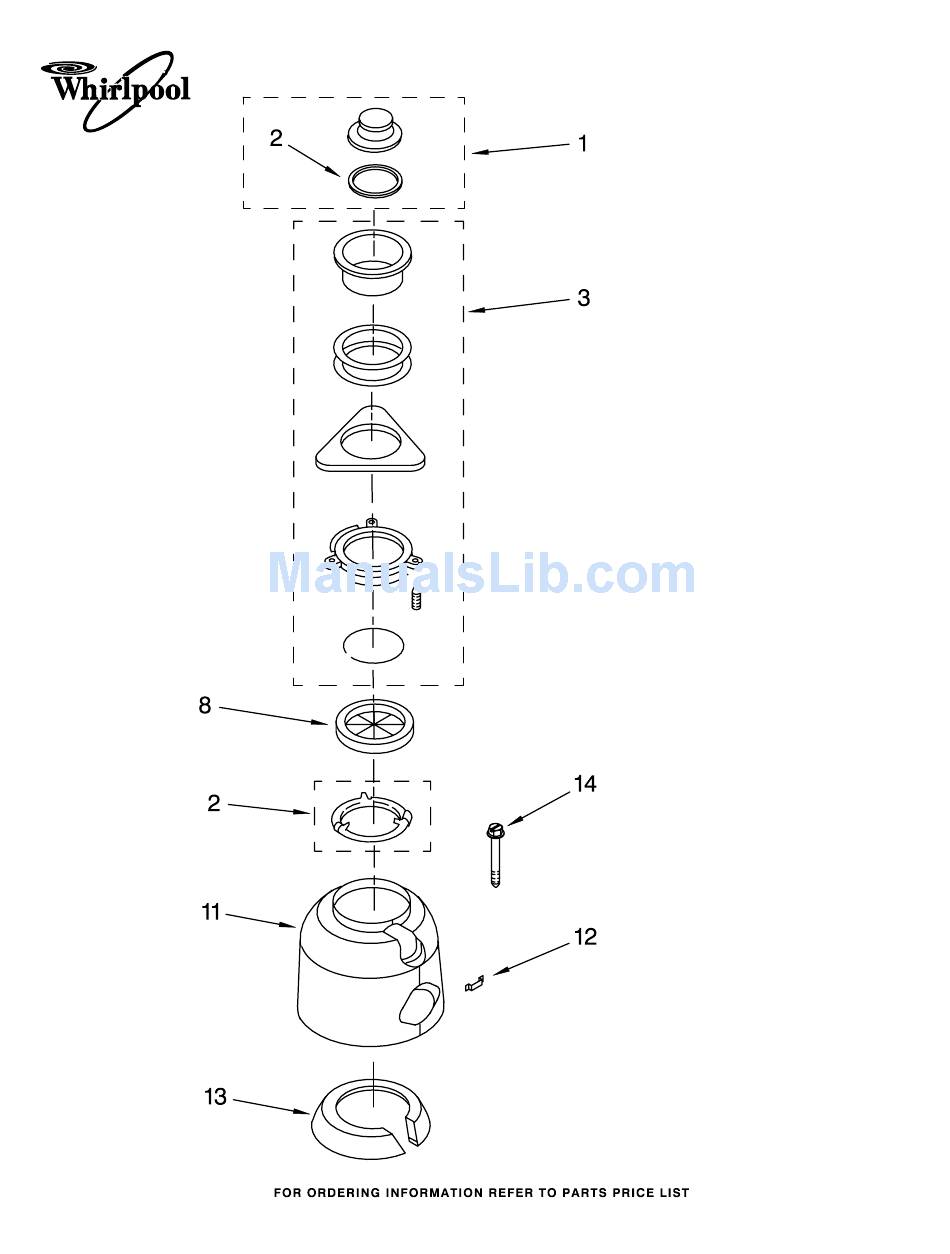

UPPER HOUSING AND FLANGE PARTS
6−04 Litho in U.S.A. (bd)
For Model: GC5000XE2
1
Illus.
Part
No.
No.
DESCRIPTION
1
4211577 Stopper Assembly
2
4211333 Gasket, Stopper
3
8174335 Mounting Assembly
8
4211615 Gasket, Mounting
11
8174357 Trim Shell
12
8174342 Clip
13
4211649 Insulation
14
8174343 Bolt, Thru
Part No. 8174351
DISPOSER

Advertisement

loading

  Summary of Contents for Whirlpool GC5000XE2

  • Page 1 UPPER HOUSING AND FLANGE PARTS 6−04 Litho in U.S.A. (bd) For Model: GC5000XE2 Illus. DISPOSER Part DESCRIPTION 4211577 Stopper Assembly 4211333 Gasket, Stopper 8174335 Mounting Assembly 4211615 Gasket, Mounting 8174357 Trim Shell 8174342 Clip 4211649 Insulation 8174343 Bolt, Thru Part No. 8174351...
  • Page 2 LOWER HOUSING AND MOTOR PARTS For Model: GC5000XE2 Illus. Part 4211322 Actuator Assembly, 8174337 Stator Assembly 8174312 Switch Assembly, 8174347 Overload, 8174345 End Frame Assembly 8174355 Kit, Installation 4211326 Shield, Wire 8174315 Cover, Terminal 8174310 Wrench, Emergency Following Parts Not Illustrated...
