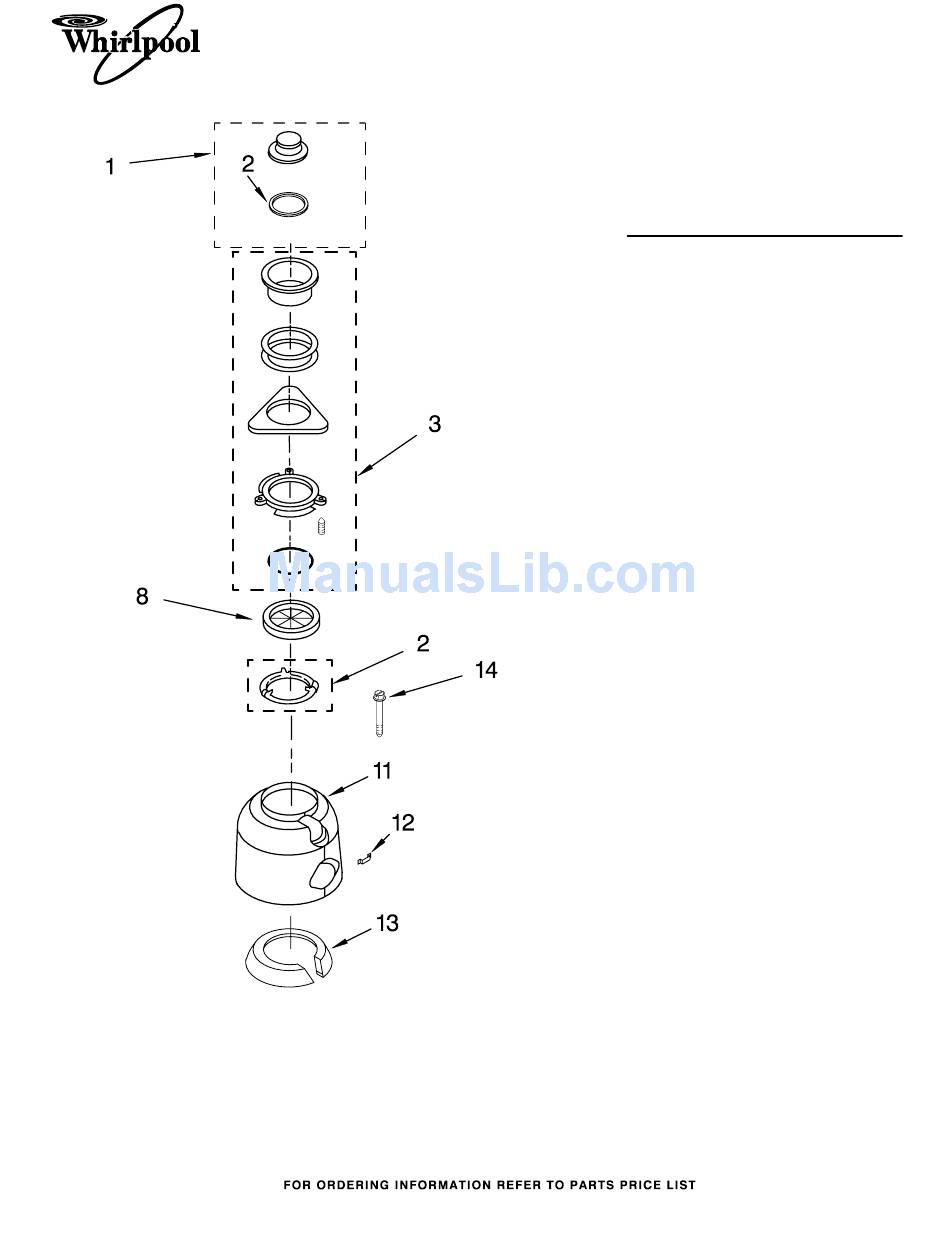

UPPER HOUSING AND FLANGE PARTS
7−01 Litho in U.S.A. (kdj)
For Model: GC5000XE
1
Illus.
Part
No.
No.
DESCRIPTION
1
4211577 Stopper Assembly
2
4211333 Gasket, Stopper
3
8174335 Mounting Assembly
8
4211615 Gasket, Mounting
11
8174336 Trim Shell
12
4211339 Clip
13
4211649 Insulation
14
8174309 Bolt, Thru
Part No. 8174339
DISPOSER
