Summary of Contents for Munters Farm Silo FSLC-04

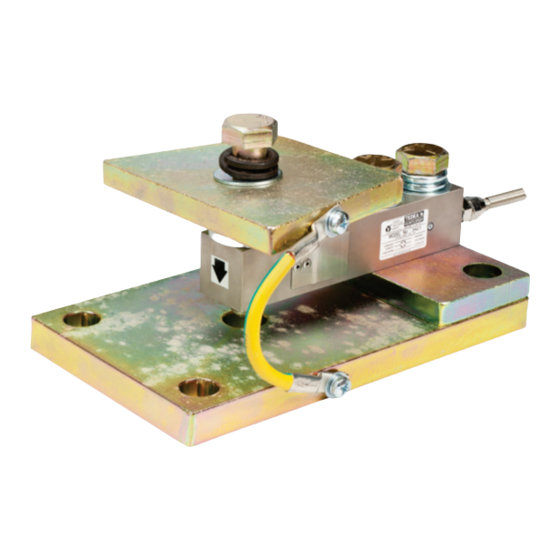

- Page 1 Farm Silo Load Cell Manual for use and maintenance Farm Silo Load Cell Silo Weighing Scale Ag/MIS/UmGB-2200-06/14 rev 1.3 P/N: 110306...
- Page 2 Munters reserves the right to effect modifications to the apparatus in accordance with technical and legal developments. © Munters AB, 2014...
-
Page 3: Table Of Contents
1.1 Disclaimer ----------------------------------------------------------------------------------------------------------- 1.2 Introduction --------------------------------------------------------------------------------------------------------- 1.3 Notes ---------------------------------------------------------------------------------------------------------------- INSTALLATION ------------------------------------------------------------------------------------------ 5 2.1 Installing the Load Cell ------------------------------------------------------------------------------------------ 2.2 Wiring the Load Cells ------------------------------------------------------------------------------------------- 2.3 Load Cell Test Procedure ------------------------------------------------------------------------------------- TROUBLESHOOTING -------------------------------------------------------------------------------- 13 WARRANTY -------------------------------------------------------------------------------------------- 18 © Munters AB, 2014... -
Page 4: Introduction
1.3 Notes Date of release: July 2010 Munters cannot guarantee to inform users about the changes or to distribute new manuals to them. NOTE All rights reserved. No part of this manual may be reproduced in any manner whatsoever without the expressed written permission of Munters. The contents of this manual are subject to change without notice. -
Page 5: Installation
The only missing component is the silo’s leg, which is shown in Figure 6. 2. Place the half ball on the load cell with the flat side facing down. It is very important that the flat side faces down or the load cell will not function properly. © Munters AB, 2014... - Page 6 7. The spring supplied measures 11 mm/0.43 inches. The bolt must be screwed to the point in which the spring measures 10 mm/0.39 inches. Figure 4: Measuring the Spring CAUTION Do not over tighten the bolt! Use a reliable measurement instrument and follow the instructions in full. © Munters AB, 2014...
-
Page 7: Wiring The Load Cells
Black – Black o Green – Green 2. Connect the cable that going from the FSW-2 to the fJB-4, to the “Controller” terminal block within the FJB-4 junction box. The connection colors of this cable are direct connection. © Munters AB, 2014... - Page 8 “Silo 1” terminal block within the FSW-2. The colors connections of this cable: Cable: Board • o Brown – Brown o White – Red o Red – White o Blue - Blue o Black – Black o Green – Green NOTE White and Red are swapped. © Munters AB, 2014...
- Page 9 Figure 7: FSW 2 Wiring Diagram *(up to Eight Load Cells) with an External Power Source Key: 1: Place two jumpers on EXT. 2: For more than six load cells, connect an external power supply and move the jumper to the EXT position. © Munters AB, 2014...
- Page 10 Figure 8: FSW 2 Wiring Diagram *(up to Eight Load Cells) with an Internal Power Source Key: 1: Place two jumpers on INT. © Munters AB, 2014...
- Page 11 Figure 9: FJB Connectors Key: 1: If there are six load cells, add the two remaining cells along with load cells 1 and © Munters AB, 2014...
-
Page 12: Load Cell Test Procedure
White - Red 285 Ohm The Farm Silo Weight-2 metallic shield connects on the FJB-4 side and four wires according to RPLP-1 Unprotected colors. TR2 for Silo 2 Adjustment RPLP-1 Figure 10: FSW-2 Silo Weight Offset Adjustment © Munters AB, 2014... -
Page 13: Troubleshooting
3 Specifications FSLC-04 Specifications • • FSLC-10 Specifications Figure 11 details the lower base plate dimensions. Figure 11: Lower Base Plate Dimensions (millimeters) © Munters AB, 2014... - Page 14 VDC or VAC RMS Input impedance 385±10 Ω Output impedance 351±5 Ω Insulation resistance >2000 MΩ Cable length Cable type 6-wire, braided, polyurethane, floating screen Standard Construction Nickel-plated alloy steel and stainless steel Environmental protection IP67 Recommended torque © Munters AB, 2014...
- Page 15 Temperature range, safe –10 to +40 °C Maximum safe central % of R.C. overload Ultimate central overload % of R.C. Excitation, recommended VDC or VAC RMS Excitation, maximum VDC or VAC RMS Input impedance 380 ± 10 Ω © Munters AB, 2014...
- Page 16 Figure 13 and Table 5 detail the FSLC-10 Load Cell dimensions. Figure 13: FSLC-10 Load Cell Dimensions Table 5: FSLC-10 Load Cell Dimensions Details Letter ØF ØG Dimension (mm) 171.5 95.4 38.1 19 Ø19.8 Ø19.8 40.9 76 7.5 © Munters AB, 2014...
- Page 17 In some cases, when the prior test is not effective and voltage between Black (common) wire and White, and between Black and Green, wires must be checked (amount of voltage must be between 4-4.5V and identical throughout load cells). © Munters AB, 2014...
-
Page 18: Warranty
12 months of the delivery of the defective product. Munters has thirty days from the date of receipt in which to take action, and has the right to examine the product at the customer’s premises or at its own plant (carriage cost to be borne by... - Page 19 The use of non-original spare parts or incorrect assembly exonerates the manufacturer from all liability. Requests for technical assistance and spare parts can be made directly to the nearest Munters office. A full list of contact details can be found on the back page of this manual.
- Page 20 Munters Brasil Industria e Comercio Ltda, Phone +55 41 3317 5050, Canada Munters Corporation Mason, Phone +1 517 676 7070, China Munters Air Treatment Equipment (Beijing) Co. Ltd, Phone +86 10 80 481 121, Denmark Munters A/S, Phone +45 9862 3311, India...
