Summary of Contents for Whirlpool ET25PK

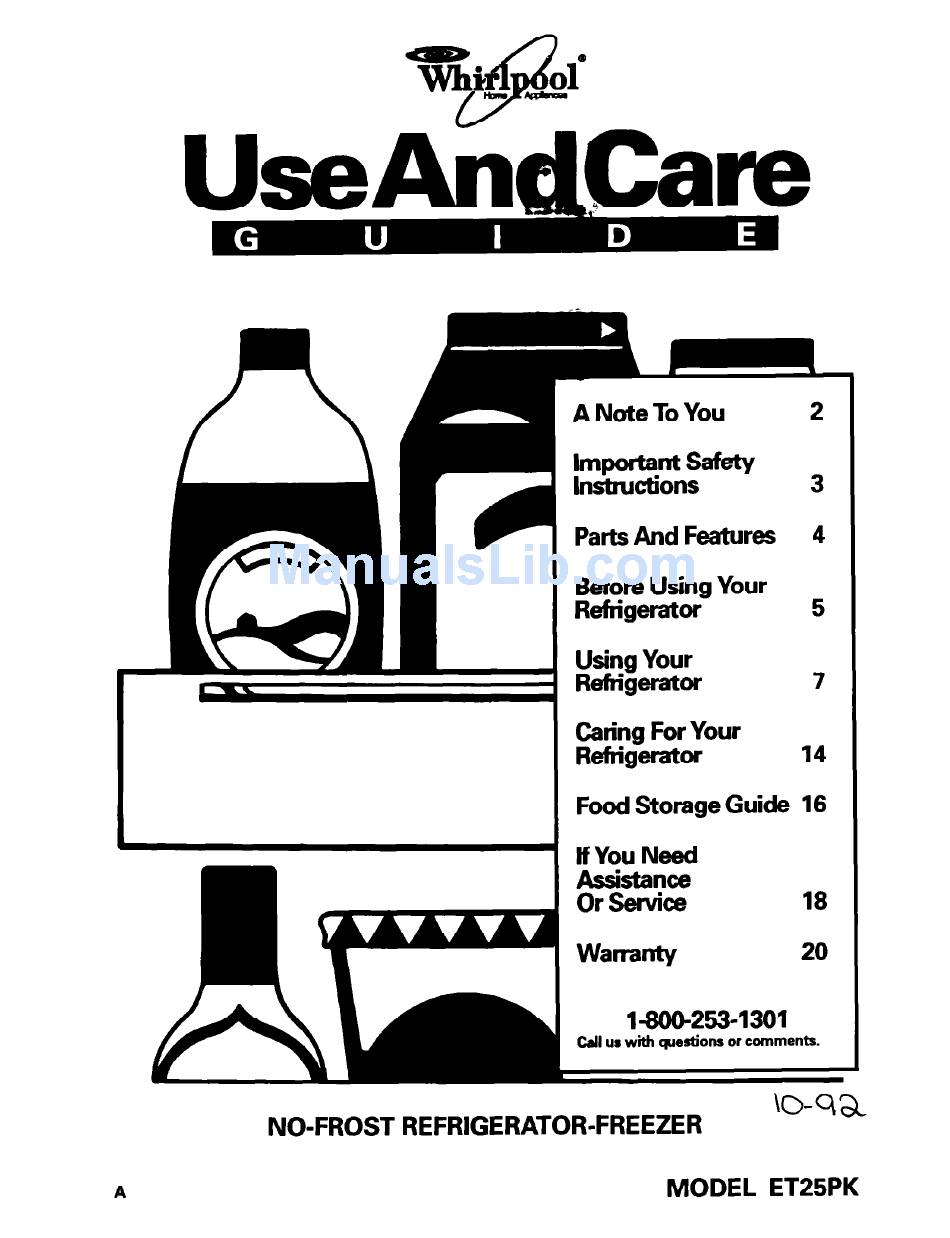

- Page 1 NO-FROST REFRIGERATOR-FREEZER A Note To You IFSZ:dw Parts And Features Before Using Your Refrigerator Using Your Refrigerator Caring For Your Refligerator Food Storage Guide 16 ’ IfYouNeed Warranty 1-800-253-1301 Cdl us with ~estions or comments. \o-9a MODEL ET25PK...
- Page 2 A Note To You Thank you for buying a Whirlpool You have purchased a quality, world-class home appliance. Years of engineering into its manufacturing. To ensure that you will enjoy many years of trouble-free developed this Use and Care Guide. lt is full of valuable information on how to operate and maintain your appliance properly and safely.
- Page 3 Important Safety Instructions To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions: Read all instructions before using the refrigerator. Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous .
-
Page 4: Parts And Features
Parts And Features This section contains captioned illustrations of your appliance. all parts and features are located and what they look like. Freezer shelf Ice cube bays ke bin Control panel ModolarKl serial number label. (on cd0 well) Moat drawer Utility Adjustable glass l bolva... -
Page 5: Before Using Your Refrigerator
Before Using Your Refrigerator In This Section it ............5 Cleaning it in . - Page 6 Leveling Your refrigerator has 2 front leveling screws-one Right to rake; left to lower on the right and one on the left. To adjust one or both of these, follow the directions below. Use a screwdriver Remove base grille. (See page 12.) Front 2.
-
Page 7: Table Of Contents
Using Your Refrigerator In This Section 9etiing the controle ... 7 ettingo ... 8 Changing the control Adjusting the dam bino ... 9 ... 9 Adjusting the hdf glii Actjuding the rdrigmrator shelve8 ..9 Removing the meat drsww and cover..9 Removing the crispera and crisper... -
Page 8: Changing The Control L Ettingo
Changing the control If you need to adjust temperatures in refrigerator or freezer, use the settings listed in the chart below as a guide. If you have questions, call our Consumer Assistance Center number. (See page 19.) CONDITION: REASON: lf Refrigerator Door opened often Section is Large amount of food added... -
Page 9: Adjusting The Dam Bino
Adjusting the shelf glide The glide can be used to secure odd-shaped items or to separate other items. To adjust a glide: 1. Grasp glide. 2. Slide glide along track. NOTE: Sheff glide cannot be removed. Adjusting the refrigerator Shelves can be adjusted to match the way you use your refrigerator. -
Page 10: Using The Ice Cube Trays
the crispers Removing To remove the crispers: Slide the crisper straight out to the stop. 2. Lii the front. 3. Slide out the rest of the way. 4. Replace in reverse order. To remove the cover: 1. Push up glass insert from the bottom, then slide it out with both hands. -
Page 11: Ming The Optional Automatic Ice Maker
Using the optional If you have an automatic ice maker, or if you plan to add one later (Part No. ECKMF-90) a few things you will want to know: The ON/OFF lever is a wire signal arm. Down . . . to make ice automatically. up . -
Page 12: Changing The Light Bulbs
Changing the light Electricel Shock Hazard Before removing a light bulb, either unplug the refrigerator or disconnect the electricity leading to the refrigerator at the main power supply. Failure to do so could result in electrical shock or personal injury. To change the refrigerator light: 1. -
Page 13: Rever8Ing The Door Owing
Reversing the door swing You can change the hinges on your refrigerator so the doors open the other way. Refer to the instruction sheet included with your refrigerator. Understanding Your new refrigerator may make sounds that your old one didn’t. Because the sounds are new to you, you migM be concerned about them. - Page 14 Caring For Your Refrigerator In This Section your refriiwator ....... ming Vacation and moving can .
- Page 15 PART WHAT TO USE Defrost pan Sponge or cloth with (behind refrigerator mild detergent and on top of motor) warm water Condenser coils Vacuum cleaner with extended narrow attachment Floor under Floor cleaners refrigerator Vacation and moving Long vacations Remove all the food if you are going for a month or more.
-
Page 16: Food Storage Guide
Power interruptions If electricity goes off, call the power company. Ask how long power will be off. 1. If service is to be interrupted keep both doors closed. This will help foods stay frozen. 2. If service is to be interrupted longer than 24 hours: (a) Remove all frozen food and store in a frozen food locker. - Page 17 Butter or margarine Keep opened butter in covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze. Cheese Store in the original wrapping until you are ready to use it. Once opened, rewrap tightfy in plastic wrap or aluminum foil.
- Page 18 If You Need Assistance Or Service This section is designed to help you save the cost of a service call. Part possible problems, their causes, and actions you can take to solve each problem. Parts 2 and 3 tell you what to do if you still need assistance or service.
- Page 19 Whirlpool appliance. To locate FSP replacement . . . refer to Step 3 above or call the Whirlpool Consumer Assistance Center 5. If you are not satisfied the problem solved .
-
Page 20: Warranty
Outside the United States, a different warranty may apply. For details, please contact your authorized Whirlpool distributor or military exchange. lf you need sewice, first see the “Assistance “Assistance or Sewice,”...
