- Page 1 Quick Start Guide FRDM-KW41Z FREEDOM DEVELOPMENT PLATFORM...

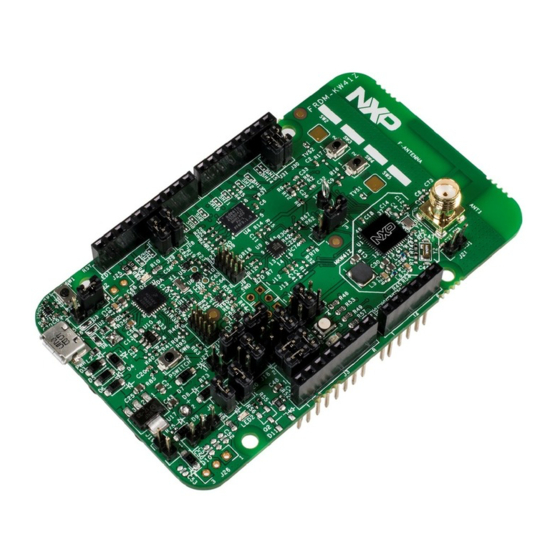

- Page 2 Quick Start Guide GET TO KNOW THE FRDM-KW41Z 32 MHz KW41Z MCU Crystal Push Buttons Printed SW3 and SW4 F-Antenna Connector TSI Buttons SW2 and SW5 XTAL_OUT J1 Header 32 kHz 1 – PTC6 Crystal ADC0_DM0/PTC2 – 6 2 – PTC7 PTB1/PTC3 –...
- Page 3 FRDM-KW41Z. Your FRDM-KW41Z RGB LED should start cycling through the colors Red, Green and Blue when you connect the board. Explore more out-of-box demos and download software and tools on www.nxp.com/FRDM-KW41Z/startnow. Enjoy your design freedom with the FRDM-KW41Z.
- Page 4 EUROPEAN DECLARATION OF CONFORMITY (Simplified DoC per Article 10.9 of the Radio Equipment Directive 2014/53/EU) This apparatus, namely FRDM-KW41Z Freedom Development Platform, conforms to the Radio Equipment Directive 2014/53/EU. The full EU Declaration of Conformity for this apparatus can be found at this location: www.nxp.com/FRDM-KW41Z...
