7−07 Litho in U.S.A. (els)

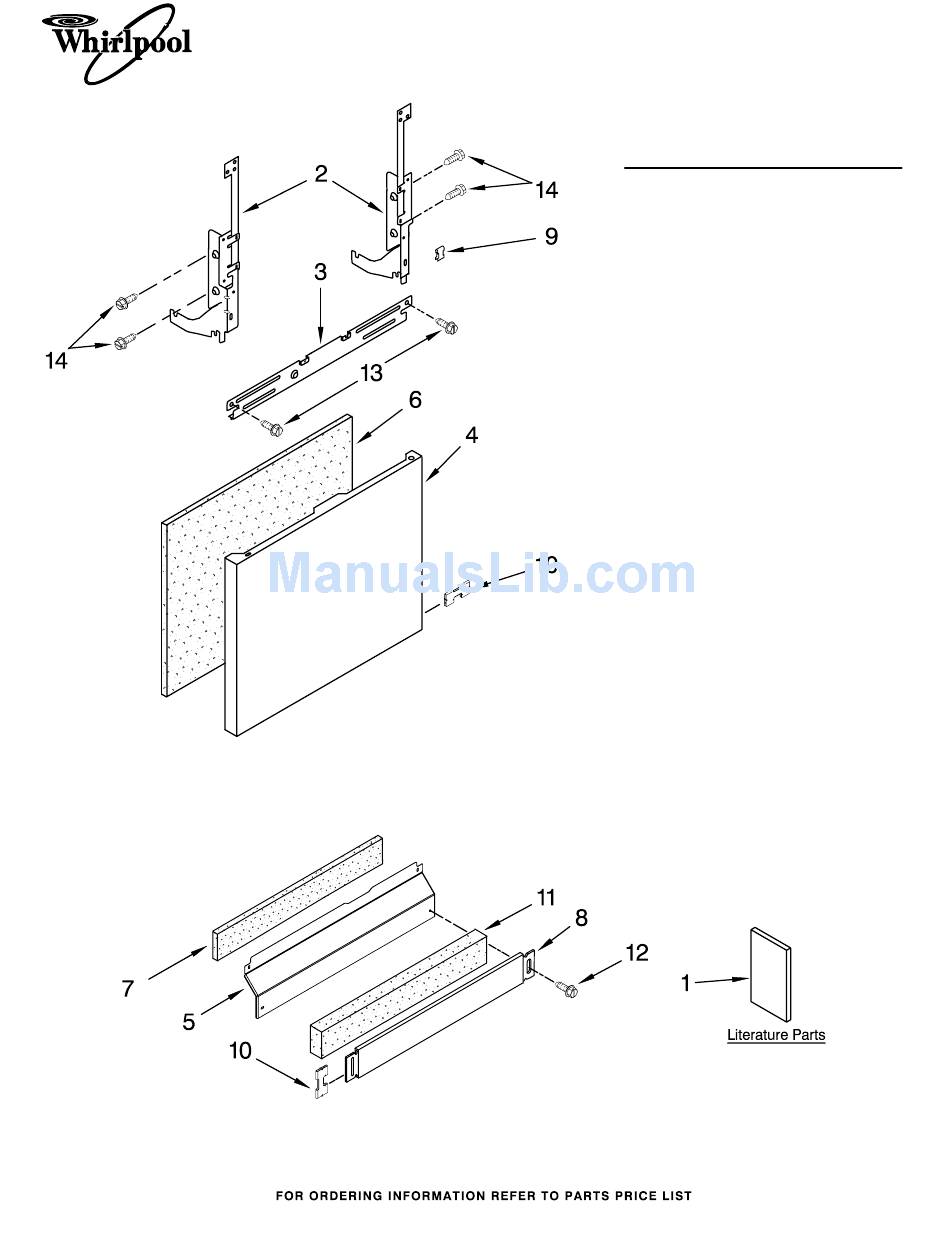

DOOR AND PANEL PARTS
For Models: GU2200XTSB3, GU2200XTSQ3, GU2200XTSS3
(Black)
(White)
(Stainless)
Illus.
No.
1
2
3
4
5
6
7 W10073540 Insulation,
8
9
10
11 W10073550 Insulation,
12
13
14
1
UNDERCOUNTER
DISHWASHER
Part
No.
DESCRIPTION
Literature Parts
8575348 Instructions,
Installation
W10102784 Energy Guide
8575899 Guide, Use & Care
Tech Sheet
W10082651 English/French
Arm, Hinge
8534858 Left
8534857 Right
8268983 Stiffener,
Door
Panel Front
W10073200 Black
W10073210 White
W10137625 Stainless
Access Panel
(Includes Item 7)
8558260 Black
8558261 White
8268580 Insulation, Door
Access Panel
Toe Panel
(Includes
Items 10 & 11)
8558252 Black
8558253 White
8269740 Clip, Grounding
8269016 Clip, Grounding
Toe Panel
Screw
302868 Black
3400836 White
343641 Screw
489470 Screw
Part No. W10153392 Rev. A
