Summary of Contents for Whirlpool GDU4050XPW1

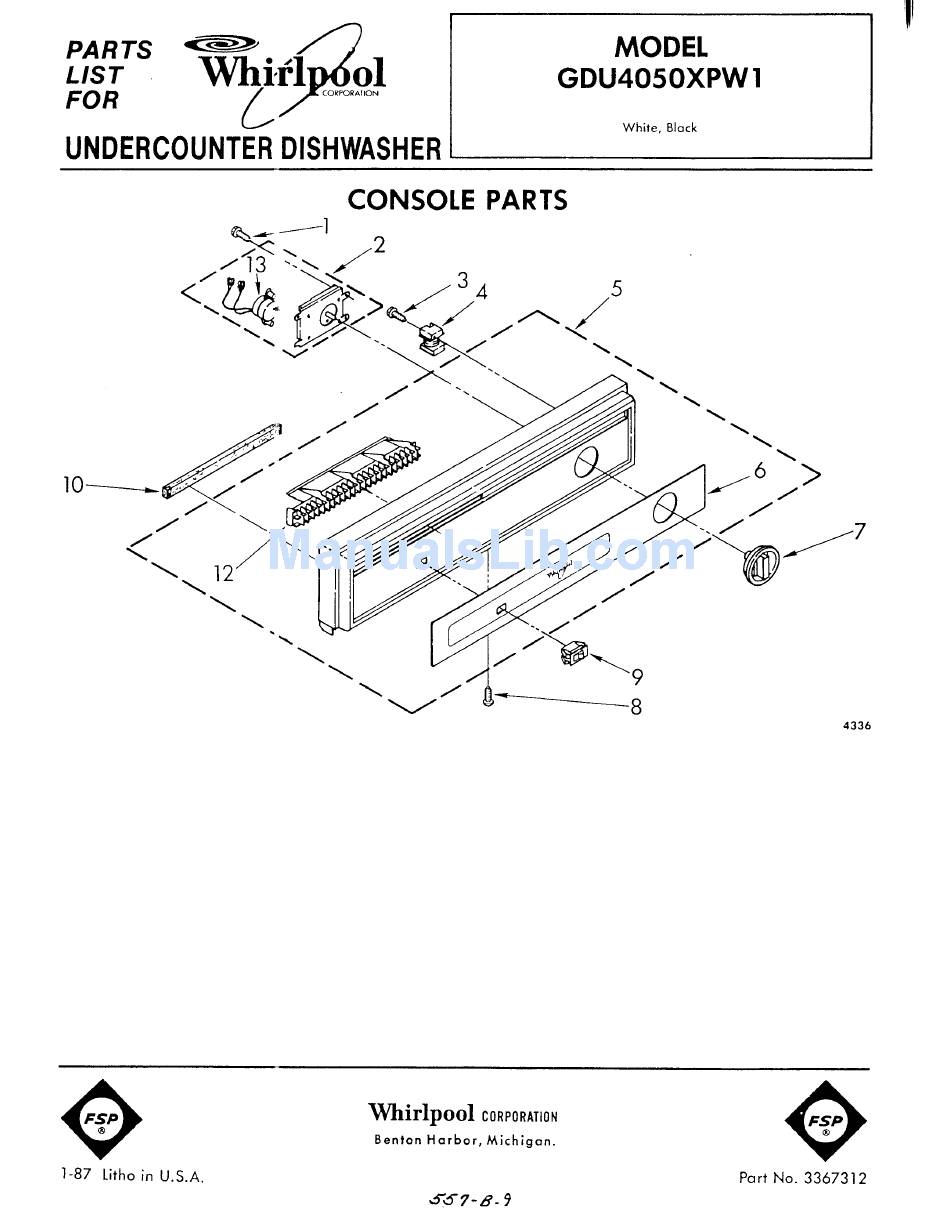

- Page 2 304231 Screw, 8-16 x 1/2 Slot Hex Wash Hd (3) 304464 Timer 304232 Screw, 7-18 x 1-3/8 Slot Hex Wash Hd 304409 Relay, Start 304613 Console 304834 Insert, Decorative 304435 Knob, Timer 304234 Screw, 8-18 x 1/2 Phlps Truss Hd Hi-Lo (4) 661511 Rocker Switch 3367733 (Alt.)
- Page 4 300796 Bracket, Mounting (2) 3367464 Tub Assembly 303294 Edge Protector 300974 Inlet, Water 304670 Hose, Inlet 301958 Clamp 356138 Clamp 719954 Hose, Drain 90767 Screw, 8A x 3/8 Hex Head Tapping (4) 303111 Brace 3367284 Leg & Hinge Assembly, L.H. 718178 Screw, 8-32 x 3/8 Hex Washer Head Slotted Tapping Ground (1) 3367498...
- Page 5 596490 Clip, Strap 301663 Clip, Gasket 304786 Soundshield, Tub OPTIONAL PARTS NOT INCLUDED PAINT,TOUCH UP (1/2 oz.) 72017 White 72107 Almond 72110 Golden Harvest 72032 Black 72112 Toast 72113 Platinum PAINT PRESSURIZED SPRAY (13 oz.) 350930 White 350956 Almond 261890 Golden Harvest 350939 Black...
- Page 7 3367387 Door, Inner 3367201 Support, Door (R.H.) 3367202 Support, Door (L.H.) 717921 Gasket, Door 303978 Barrier 300115 Pin, Lid Hinge 301957 Sp\a\cer, Cor\ru\ga\te\d 304392 Screw, 8-18 x 1/2 (2) 300234 Pin, Pivot (2) LIT302081 Label, User Guide 300246 Screen, Vent 3367058 Latch Assembly Switch, Interlock...
- Page 9 300995 Wheel & Axle Assembly (4) 303991 Wheel & Carrier Assembly (4) 304187 Dishrack, Upper 304204 Spray Arm, Upper 304170 Tower 304176 Dishrack, Lower 304490 Bumper |Panel, Reversible 3367117 Basket, Silverware (2) 3367549 Panel, Lower Side Panel 12035 Washer, Lower Side Panel Mounting (2) 9419621 Screw, Lower Side Panel Mounting (2) 965176...
- Page 11 3367443 Pump & Motor Assembly (Includes Illus. 41) Parts, Refer To Pump And Motor Parts Page. 675488 Check Ball & Retainer 300800 Valve, Check (Includes Illus. 21 & 23) 95080 ``O'' Ring 719576 Bearing Nozzle 303870 Cap, Nozzle 302767 Spray Arm, Lower 717000 Gasket, Pump 717273...
- Page 13 302720 Plate, Perforated (Includes Illus. 5) (Also Order Illus. No. 30) See Note A. 302726 Base, Inlet (Includes Illus. 1 & 5) (Also Order Illus. No. 30) See Note A. 303573 Screw, 8-18 x 5/8 St. Stl. 302710 Seal, Inlet Base 302709 Ball, Check 303573...
- Page 15 94614 Terminal 352088 Terminal, Female 353425 Receptacle, Terminal (3 Way) 94613 Terminal 719585 Receptacle (5-Circuit) 304503 Harness, Wiring 301219 Connector Block Connector Block 300708 Alternate 374230 Alternate 358736 Insulator .250 Terminal...
