Carrier 50FC Series Service And Maintenance Instructions
  1. Manuals
  2. Brands
  3. Carrier Manuals
  4. Air Conditioner
  5. 50FC Series
  6. Service and maintenance instructions

Carrier 50FC Series Service And Maintenance Instructions

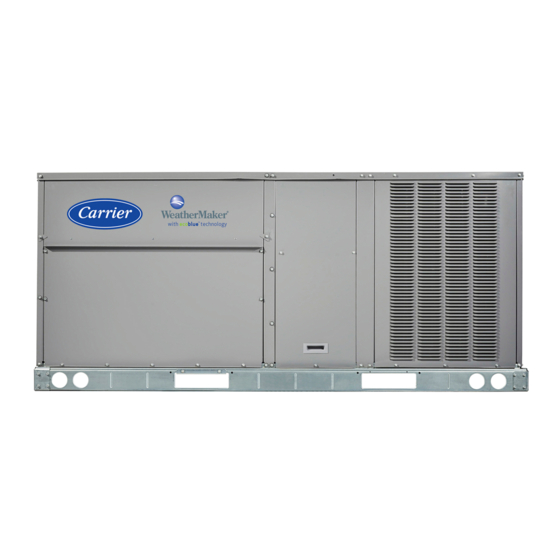

Single package rooftop electric cooling unit
Hide thumbs Also See for 50FC Series:
Table of Contents

Advertisement

Quick Links

Service and Maintenance Instructions

Safety Considerations . . . . . . . . . . . . . . . . . . . 2
Unit Arrangement And Access . . . . . . . . . . . . 3
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Routine Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . 3
Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Supply Fan (Blower) Section . . . . . . . . . . . . . . 4
Supply Fan (Direct-Drive) . . . . . . . . . . . . . . . . . . . . . . 4
Staged Air Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Condenser Coil Maintenance and Cleaning
Recommendation . . . . . . . . . . . . . . . . . . . . . . . . . 10
Evaporator Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Evaporator Coil Metering Devices . . . . . . . . . . . . . . 12
Txv Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replacing Txv . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Puron (R-410A) Refrigerant . . . . . . . . . . . . . . 14
Refrigerant Charge . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Cooling Charging Charts . . . . . . . . . . . . . . . . 14
COMPRESSOR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Lubrication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Replacing Compressor . . . . . . . . . . . . . . . . . . . . . . . 16
Compressor Rotation . . . . . . . . . . . . . . . . . . . . . . . . 17
Filter Drier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Condenser-Fan Adjustment . . . . . . . . . . . . . . . . . . . 17
Troubleshooting Cooling System . . . . . . . . . . . . . . 18
Convenience Outlets . . . . . . . . . . . . . . . . . . . . 19
Convenience Outlets . . . . . . . . . . . . . . . . . . . . . . . . 19
Installing Weatherproof Cover . . . . . . . . . . . . . . . . . 19
Non-Powered Type . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Unit-Powered Type . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Fuse On Powered Type . . . . . . . . . . . . . . . . . . . . . . . 20
Electric Heaters . . . . . . . . . . . . . . . . . . . . . . . . 20
Completing Heater Installation . . . . . . . . . . . . . . . . 21
SMOKE DETECTORS . . . . . . . . . . . . . . . . . . . . . . . . 22
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Smoke Detector Sensor . . . . . . . . . . . . . . . . . . . . . . 22
Smoke Detector Locations . . . . . . . . . . . . . . . . . . . . 22
Completing Installation of Return Air Smoke
Detector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Sensor And Controller Tests . . . . . . . . . . . 25
Sensor Alarm Test . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Controller Alarm Test . . . . . . . . . . . . . . . . . . . . . . . . 25
Manufacturer reserves the right to discontinue, or change at any time, specifications or designs without notice and without incurring obligations.
Catalog No. 04-53500204-01
Single Package Rooftop Electric Cooling Unit
Printed in U.S.A.
Form 50FC-4-7-01SM Rev. A Pg 1
®
with Puron
Dirty Controller Test . . . . . . . . . . . . . . . . . . . . . . . . .25
Dirty Sensor Test . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Changing The Dirt Sensor Test . . . . . . . . . . . . . . . . .25
Remote Station Test . . . . . . . . . . . . . . . . . . . . . . . . .25
Dirty Sensor Test Using An Sd-Trk4 . . . . . . . . . . .26
Detector Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Protective Devices . . . . . . . . . . . . . . . . . . . . . . .27
Compressor Protection . . . . . . . . . . . . . . . . . . . . . . .27
Relief Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Control Circuit, 24-V . . . . . . . . . . . . . . . . . . . . . . . . .28
Systemvu Control System . . . . . . . . . . . . . . . .28
Systemvu Interface . . . . . . . . . . . . . . . . . . . . . . . . . .28
Additional SystemVu Installation and
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .28
Rtu Open Control System . . . . . . . . . . . . . . . .29
Sensory/Accessory Installation . . . . . . . . . . . . . . . .29
Additional RTU Open Installation and
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .30
Economizer Systems . . . . . . . . . . . . . . . . . . . . .30
EconoMi$er2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Economi$Er X (Factory Option) . . . . . . . . . . . . . . . .39
Pre-Start-Up/Start-Up . . . . . . . . . . . . . . . . . . . .52
Start-Up, General . . . . . . . . . . . . . . . . . . . . . . . .52
Unit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Additional Installation/Inspection . . . . . . . . . . . . . .52
Return-Air Filters . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Outdoor-Air Inlet Screens . . . . . . . . . . . . . . . . . . . . .52
Compressor Mounting . . . . . . . . . . . . . . . . . . . . . . . .52
Internal Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
Refrigerant Service Ports . . . . . . . . . . . . . . . . . . . . .52
Compressor Rotation . . . . . . . . . . . . . . . . . . . . . . . .53
Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Ventilation (Continuous Fan) . . . . . . . . . . . . . . . . . .53
Fastener Torque Values . . . . . . . . . . . . . . . . .53
Start-Up, Rtu Open Controls . . . . . . . . . . . . .53
Start-Up, Systemvu Controls . . . . . . . . . . . .53
APPENDIX A — MODEL NUMBER
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . .54
APPENDIX B — PHYSICAL DATA . . . . . . . . . . . . . . .55
APPENDIX C — FAN PERFORMANCE . . . . . . . . . . .58
APPENDIX D — WIRING DIAGRAMS . . . . . . . . . . . .87
APPENDIX E — LOW AMBIENT CONTROL SENSOR
LOCATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .109
Start-Up Checklist . . . . . . . . . . . . . . . . . . . . .CL-1
50FC04-07
(R-410A) Refrigerant
3 to 6 Nominal Tons
8-19
Replaces: New
