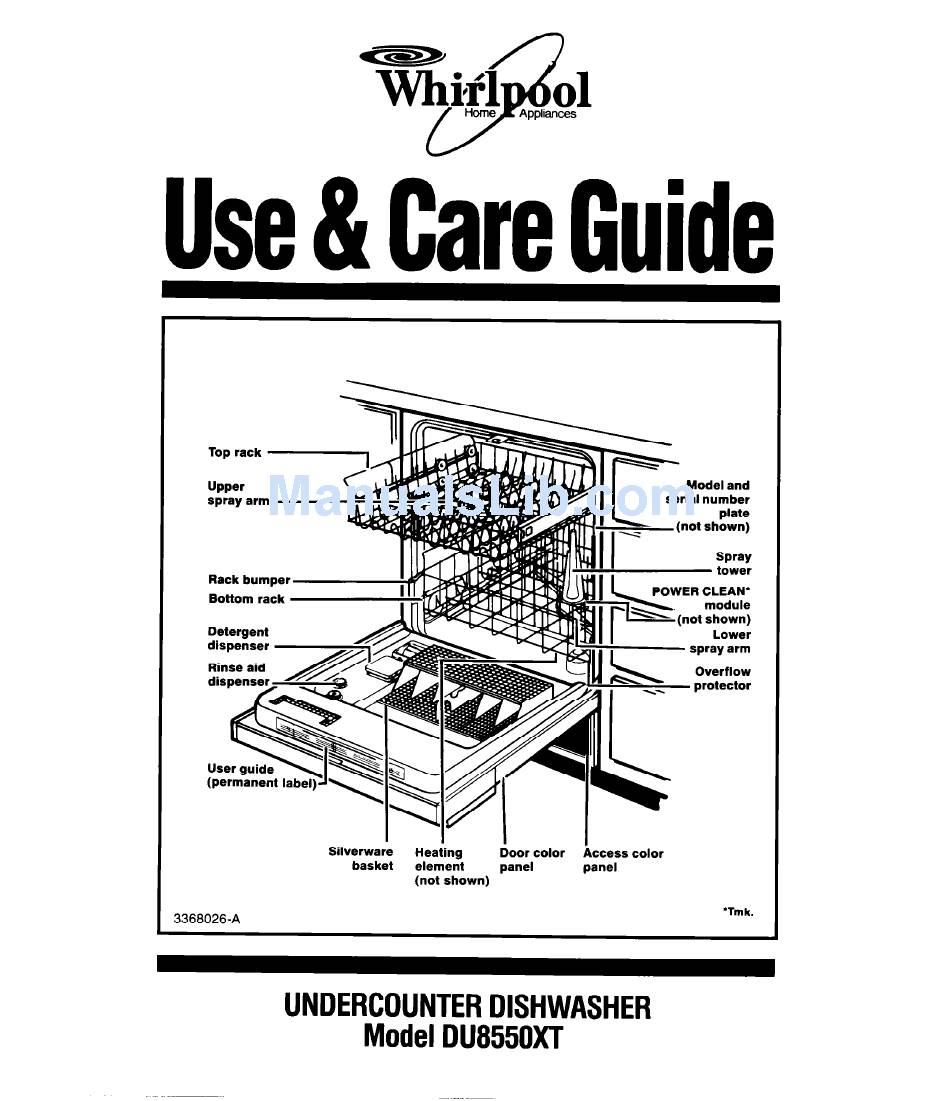

Upper spray Detergent dispenser Rinse aid dispenser User guide (permanent label) Silverware Heating basket element (not shown) 3366026-A UNDERCOUNTER Model DU8550XT Model serial number plate (not shown) Spray tower POWER CLEAN’ Lower spray arm Door color Access color panel panel...
..Common Dishwashing Problems If You Need Service Or Assistance Whirlpool Dishwasher Warranty 01988 Whirlpool Corporation Thank you for buying a Whirlpool appliance. Please complete and mail the Owner tration Card provided with this product.
Important Safety Instructions To reduce the risk of fire, electrical shock, or injury when using your dishwasher, follow basic precautions including the following: Read all instructions before using the dishwasher. Properly connect to electricity and water. . DISHWASHER MUST BE ELECTRICALLY GROUNDED.
Operating Instructions Continued Starting your dishwasher 1. Push a Cycle Selector Button for the desired cycle. NORMAL WASH, LOW ENERGY WASH and RINSE & HOLD Cycles share the same button. The Cycle Control Knob determines which cycle operates. 2. Push an Option Selector Button for each desired option.
What happens in each cycle Pots & Pans Cycle Maximum cleaning for cooked- or baked-on foods. Timer delays while the dishwasher automatically heats the water to 145°F (63°C) in both washes and the last rinse (marked ). Cycle time** will be about 1% to 2 hours, depending on time needed to heat water.
Operating Instructions Continued Low Energy Wash Cycle For pre-rinsed or lightly soiled loads. Cycle time** is about 53 minutes plus the time needed to heat the water if the HI-TEMP WASH option is selected. What happens in each option Hi-Temp Wash When this option is selected, water for the main wash and the final rinse is heated (except in the RINSE 8 HOLD Cycle) to 145°F (63°C).
Proper Loading Cup and glass load Mixed load Preparation for loading It is not necessary to rinse dishes before putting them into the dishwasher. Just remove large pieces, bones and other hard items. The POWER CLEAN’ Module will remove food particles from the water.
Page 8
Proper Loading Continued Mixed load Bottom rack loading Items with cooked-on or dried-on food should be loaded in the bottom rack, with soiled surfaces facing inward to the spray. Mixed load . Make sure pot handles and other items do not stop rotation of either the upper or lower spray arm.
Adding Detergent And Rinse Aid Liquid dishwasher detergent Powdered dishwasher detergent See phosphorus content on product labels. Cover Cover latch I--- Use covered section for... Normal Wash Cycle Low Energy Wash Cycle Use both sections Pots 8 Pans Cycle What kind of detergent to use automatic dishwasher...
For Best Results Hot water is a must Hot water dissolves and activates the dishwashing detergent. Hot water dissolves grease on dishes and helps dry glasses spot-free. Make certain loads are washed in hot water (at least 140°F - 60%). Two ways to have a reliable hot water supply..
Page 11
Energy saving tips You can help save energy if you: 1. Wash full loads. Running a half-filled dish- washer uses the same amount of electricity and hot water as a fully loaded machine. 2. Use the LOW ENERGY WASH Cycle whenever possible.
Common Dishwashing Problems Spotting and filming (hard water film) Hard water Fill detergent dispensers to capacity. Use dishwasher detergent with highest available phosphorus content. May be necessary to install water softener. To remove spots and film, try a vinegar rinse... 1.
Page 13
Dishes not washing clean Water is not hot enough Water temperature should be at least 140°F (60%). Set water heater thermostat to a higher setting. Run water at sink until hot before starting and/or use HI-TEMP WASH Option. Improper loading Make sure dishes and glassware are loaded so spray reaches all surfaces and items drain properly.
Whirlpool appliance. To locate FSP replacement parts in your area, refer to Step 3 above or call the Whirlpool COOL- LINE service assistance number in Step 2. ‘If you must call or write, please provide: model number, serial number, date of purchase, and a complete description of the problem.
Page 15
POWER CLEAN* washing system parts covered by your warranty spray Spray tower Nozzle Lower spray POWER CLEAN* module motor...
Page 16
C. Pick up and delivery. This product is designed to be repaired in the home. D. Damage to dishwasher caused by accident, misuse, fire, flood, acts of God or use of products not approved by Whirlpool. E. Anv labor costs durina limited warranties.
