Mora System Cantilever Installation and
™
Disassembly for Recycling Instructions.
How to assemble your Cantilever.
Tools Required
Power Driver
1/8" Drill Bit
Level
Safety Glass

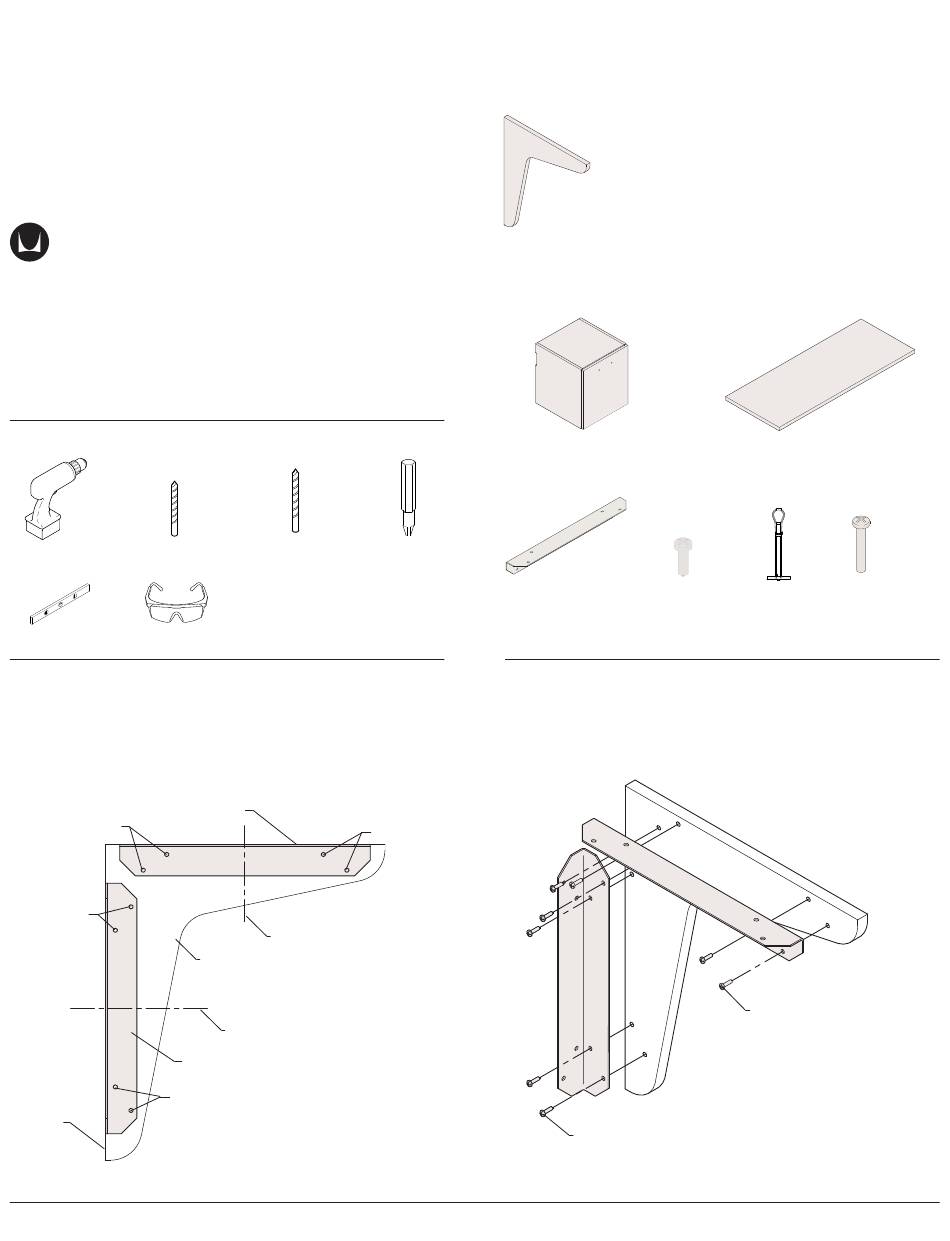

Step 1
1.1 Position top Wall Cabinet Bracket on back of Cantilever, flush with top
edge, vertically centered on cantilever.
1.2 Position other Wall Cabinet Bracket flush with back edge of Cantilever,
centered on horizontal center.
1.3 Mark holes.
Wall Cabinet Bracket
Mark Holes
Mark Holes
Wall Cabinet Bracket
Mark Holes
Back Edge
HermanMiller for Healthcare
1/2" Drill Bit
Mark Holes
Centerline of Cantilever
Cantilever
Centerline of Cantilever
Parts Included
Cantilever
Additional Products Needed - Sold Seperately
CH200 Series Wall Mounted Cabinet or
Phillips Bit
Wall Cabinet Bracket
1.4 Remove brackets. Drill 1/8" pilot holes 5/8" deep. Be careful not to drill
through cantilever.
1.5 Re-position brackets onto cantilever. Secure to cantilever with 4 #10 - 3/4"
pan head tapping screws provided with bracket.
1
Work Surface
#10-12 x 5/8 Pan Head
Toggle Bolt (4)
Tapping Screw(4)
CH646. Surface Wall Attachment Support (2)
Pan Head Tapping Screw
Pan Head Tapping Screw
1BLHZT rev B
#8-32 x 1 Pan Head
Machine Screw(4)
