Summary of Contents for Abstract Data ADE-51

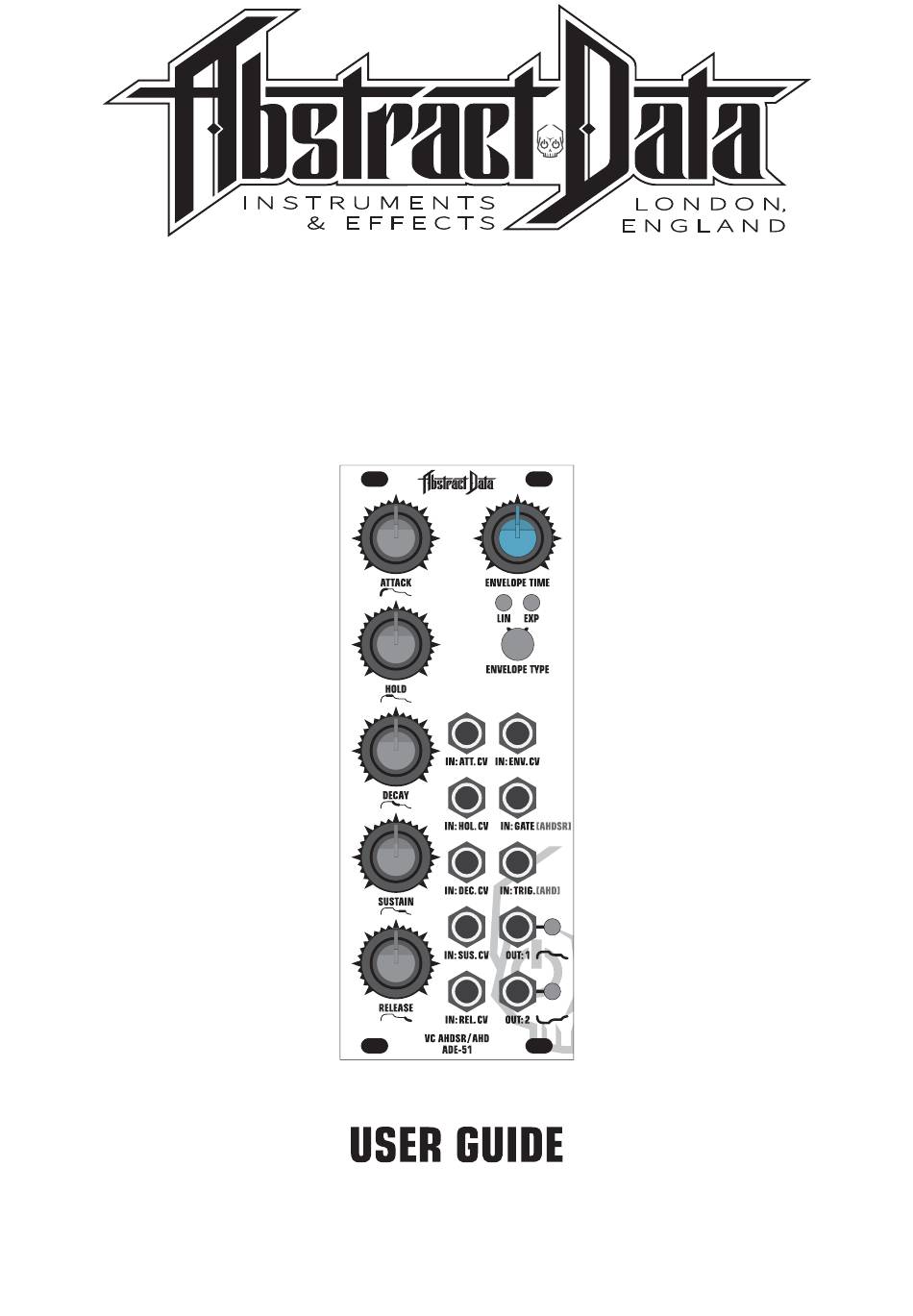

- Page 1 ADE-51 VC AHDSR/AHD 3 or 5-stage Envelope Generator with Linear & Exponential curves, Trigger & re-Trigger functionality, dual outputs & complete CV control. © 2017 Abstract Data Ltd. http://www.abstractdata.biz Version 1.0.2...
-
Page 2: Specifications
Your first patch OPERATION: Inputs & Outputs Explanation of all sockets Knobs Explanation of knob functions Buttons Explanation of button functions FEATURES: Operation Envelope types and variations SPECIFICATIONS: Specs Hardware and spec overview © 2017 Abstract Data Ltd. Version 1.0.2... -
Page 3: Module Overview
PCB. • The ADE-51 works with a standard 0-5V CV range on all CV inputs. CV outside of the 0-5V range will be blocked by the CV input conditioning - but please try to ensure that the CV signals used are generally within the Eurorack standard. -
Page 4: Front Panel
Gate input to Trigger AHDSR envelopes IN:TRIG [AHD] Trigger Input for AHDSR re-Triggering and generating AHD envelopes OUT: 1 Standard ‘rising’ envelope output from 0 to +5V OUT: 2 Inverted ‘falling’ envelope output from +5 to 0V © 2017 Abstract Data Ltd. Version 1.0.2... -
Page 5: Rear Connections
The rear panel of the ADE-51 has exposed parts and connections. Please ensure when handling the ADE-51 that the unit is held by the sides of the front panel or the sides of the PCB (Printed Circuit Board). -
Page 6: Quick Start
09:00 (pointing left). The LED at OUT:1 should now be showing that the envelope is triggering. Adjust the individual controls for each stage of the envelope to achieve the desired envelope time, shape and sound. © 2017 Abstract Data Ltd. Version 1.0.2... -
Page 7: Inputs And Outputs
A CV signal at this input enables external control over the time of the Attack stage of the envelope. ADE-51 CV inputs are designed to take a 0-5V CV signal. CV signals outside of the 0-5V range (<0V and >5V) will be blocked by the final output of the CV circuit - but please try to ensure that the CV signals used are generally within the Eurorack standard. - Page 8 Provides manual control over the level of the Sustain stage of the envelope. 5) RELEASE Provides manual control over the time of the Release stage of the envelope. 6) ENVELOPE TIME Provides manual control of the overall time of the entire envelope. © 2017 Abstract Data Ltd. Version 1.0.2...
- Page 9 7) Buttons Page 7 of 9 1) ENVELOPE TYPE Selects between an output with an Exponential response and an output with a Linear response. © 2017 Abstract Data Ltd. Version 1.0.2...
-
Page 10: Operation
Attack stage at whatever level the envelope it is at when re-Triggered. When the initial Gate signal ends - the envelope enters the Release stage as normal. The AHD envelope type operates independently of Trigger/Gate length with all stage times set by the relative front panel controls. © 2017 Abstract Data Ltd. Version 1.0.2... - Page 11 1x 10-16-pin, IDC Screws: 4x M3 Jumper: 1x spare connector CREDITS: Firmware Development: Tom Wiltshire Beta Testing: Radek Rudnicki Ben Wilson CONTACT: Justin Owen @ Abstract Data info@abstractdata.biz www.abstractdata.biz facebook.com/abstractdatabiz twitter.com/abstractdatabiz instagram.com/abstractdatabiz soundcloud.com/abstractdatabiz youtube.com/abstractdatabiz © 2017 Abstract Data Ltd. Version 1.0.2...
