Whirlpool SF367LXS Parts Manual

30" gas freestanding self clean range sealed burner
Hide thumbs


Advertisement

Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10110368 Use & Care Guide
Tech Sheet
W10116296 English
W10116297 French
9762997 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
Safer Cooking Tips
9762761 English
9759133 French
2
Cap, Burner
LF & RF
3191905 Grey
3191904 Black
LR
3191903 Grey
3191901 Black
RR
3191899 Grey
3191898 Black
02−07 Litho in U.S.A. (mek)

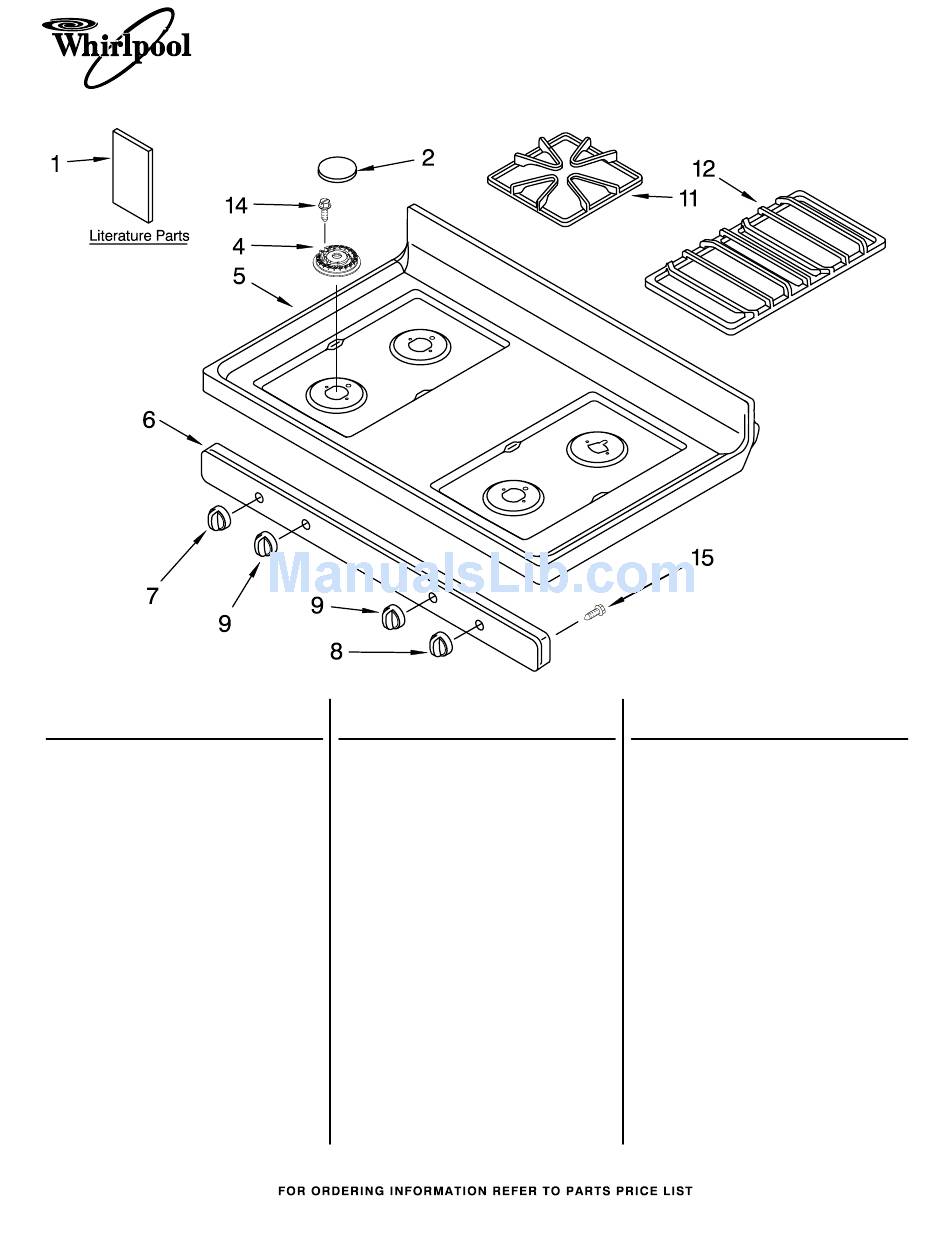

COOKTOP PARTS
For Models: SF367LXSQ1, SF367LXSB1, SF367LXSS1, SF367LXSY1
(Designer White) (Black) (Stainless Steel)(Universal Silver)
Illus.
Part
No.
4
4455981 LF & RF (12K)
4455980 LR − RF(9K)
4455979 RR(6K)
5
8272251 White
8272253 Black
6
8523854 White
8523855 Black
7
8273104 White
8273103 Black
No.
DESCRIPTION
Burner
Cooktop
Panel, Manifold
Knob, Control (2)
1
30" GAS FREESTANDING
SELF CLEAN RANGE
SEALED BURNER
Illus.
Part
No.
No.
DESCRIPTION
8
Knob, AccuSimmer
8273108 White
8273107 Black
9
Knob,
Powerburner (2)
8273112 White
8273111 Black
11
Grate, Burner (4)
8522850 Grey
8522851 Black
12
Grate, Center
8522847 Gray
8522846 Black
14
3400701 Screw
15
3196557 Screw
Part No. W10122867 Rev. B
