Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9762998 Installation
Instructions
Anti−Tip Template
9757142 English/Spanish
9757143 English/French
W10110369 Owners Manual
W10116295 Tech Sheet
9762761 Safer Cooking Tips
05−07 Litho in U.S.A. (rek)

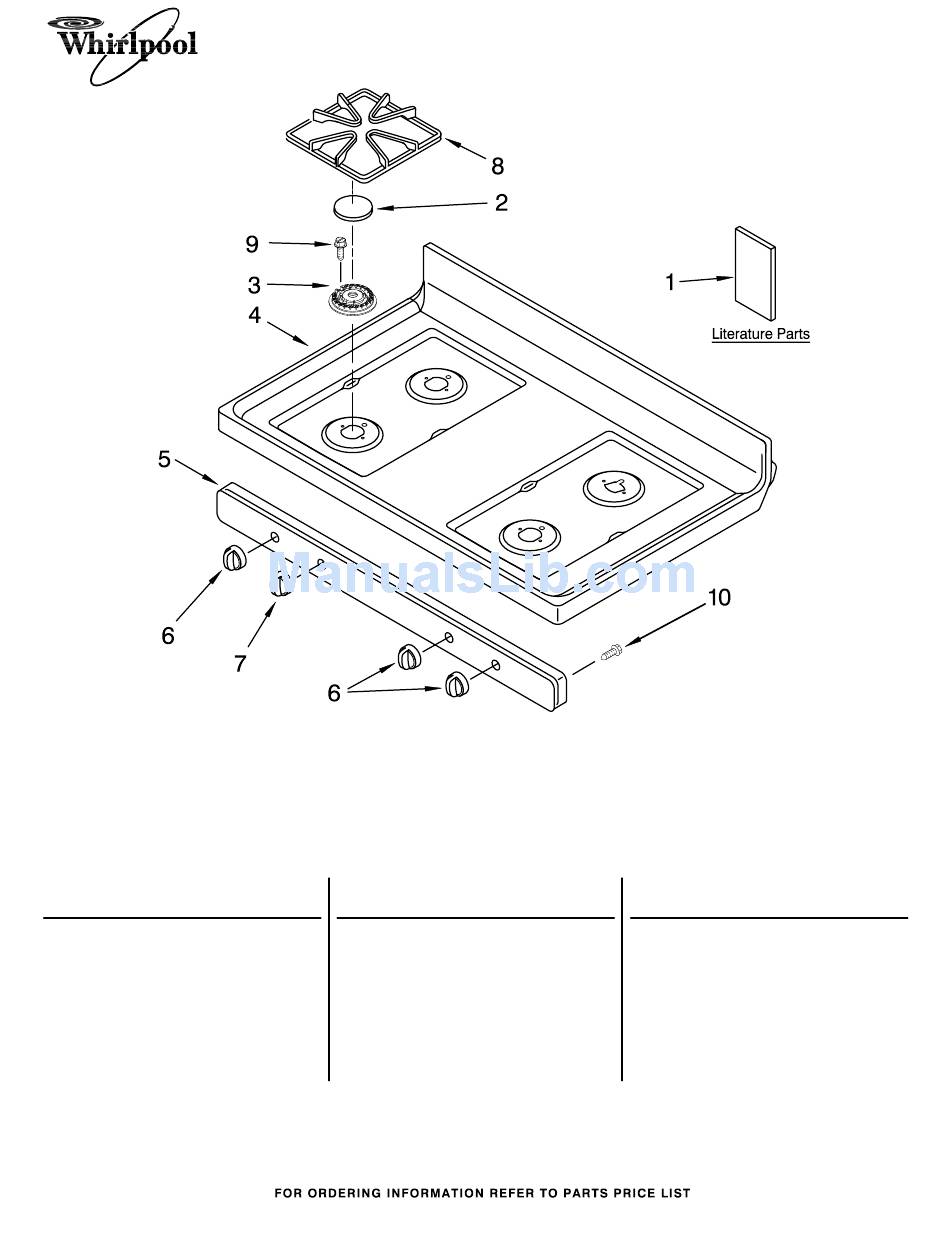

COOKTOP PARTS
For Models: SF272LXTD1
(Universal Silver)
Illus.
Part
No.
No.
DESCRIPTION
2
Cap, Burner
3191904 Left Front
3191901 R. Front, L. Rear
3191898 Right Rear
3
Burner
4455981 Left Front
4455980 R. Front, L. Rear
4455979 Right Rear
1
30" GAS FREESTANDING
SELF CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
4
8272253 Cooktop
5
8523855 Panel, Manifold
6
8273103 Knob, Control (3)
7
8273111 Knob, Powerburner
8
8053458 Grate, Burner (4)
9
3400701 Screw
10
3196557 Screw
Part No. W10139618 Rev. A
