Whirlpool SCS3017RB01 Parts Manual

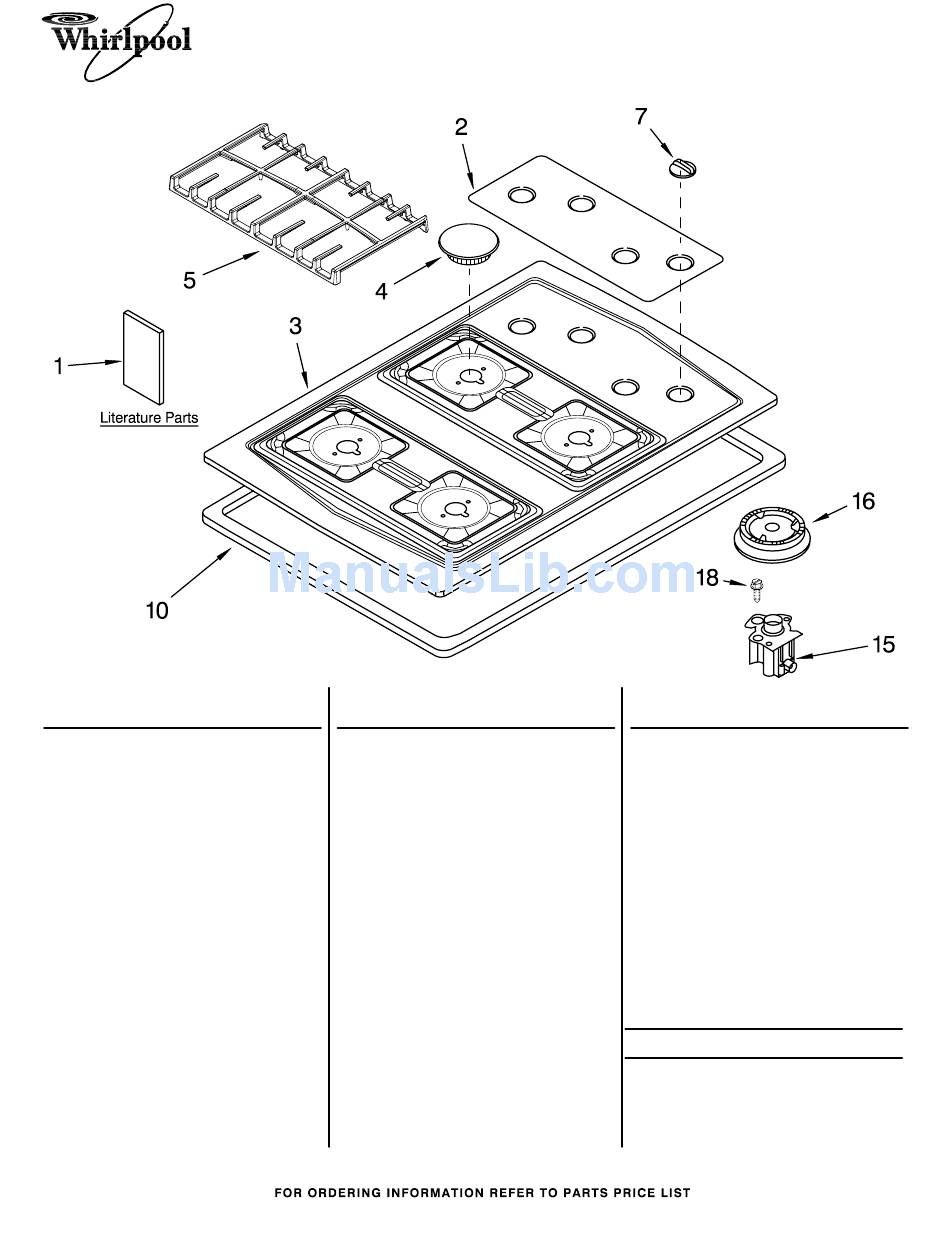

COOKTOP, BURNER AND GRATE PARTS
For Models: SCS3017RB01,SCS3017RQ01, SCS3017RS01,SCS3017RT01
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
3192098 Wiring Diagram
8286304 Installation
Instructions
8286615 Use & Care Guide
3191638 Safe Cooking Tips
9759133 Safe Cooking Tips
8286620 LP Conversion
Instructions
2 Panel, Control
8286502 Black
8286503 White
8286504 Biscuit
3 Cooktop
3191242 Black
3191243 White
3191288 Stainless
8284705 Biscuit
5−06 Litho in U.S.A. (cre)
(Black) (Designer White) (Stainless)
Illus. Part
No. No. DESCRIPTION
4 Cap, Burner
6K (1)
8286153CB Coal Matte Black
8286153CG Cumberland Gray
8286153EP Espresso
9.5K (1)
8286154CB Coal Matte Black
8286154CG Cumberland Gray
8286154EP Espresso
12.5K (2)
8286155CB Coal Matte Black
8286155CG Cumberland Gray
8286155EP Espresso
5 Grate
R.Hand
8285888CB Coal Matte Black
8285888CG Cumberland Gray
8285888EP Espresso
L.Hand
8285886CB Coal Matte Black
8285886CG Cumberland Gray
8285886EP Espresso
1
(Biscuit)
30" GAS COOKTOP
Illus. Part
No. No. DESCRIPTION
7 Knob, Control (4)
8286057BL Black
8286057WH White
8286057BT Biscuit
10 3193090 Seal, Foam
(S.Steel Mdl Only)
15 Holder, Orifice
(Includes 13 & 14)
8286513 Auxi
8286178 Semi Rapid
8286180 Rapid
16 Head, Burner
8286182 12K Rapid
8286181 6K Auxi
8286184 9K Semi−Rapid
18 4449809 Screw
Following Parts Not Illustrated
Harness, Wire
Ignitor
4456626 15"
4456627 28"
Part No. 8186516
