Whirlpool RF272LXTD3 Parts List

Whirlpool RF272LXTD3 Parts List

30" electric freestanding self clean range
Hide thumbs Also See for RF272LXTD3:
1
2
3
4
5
6
7

Advertisement

Quick Links

Download this manual See also: Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature
W10141166 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
W10162204 Owners Manual
W10133890 Tech Sheet
9762761 Safer Cooking Tips
11−07 Litho in U.S.A. (rek)

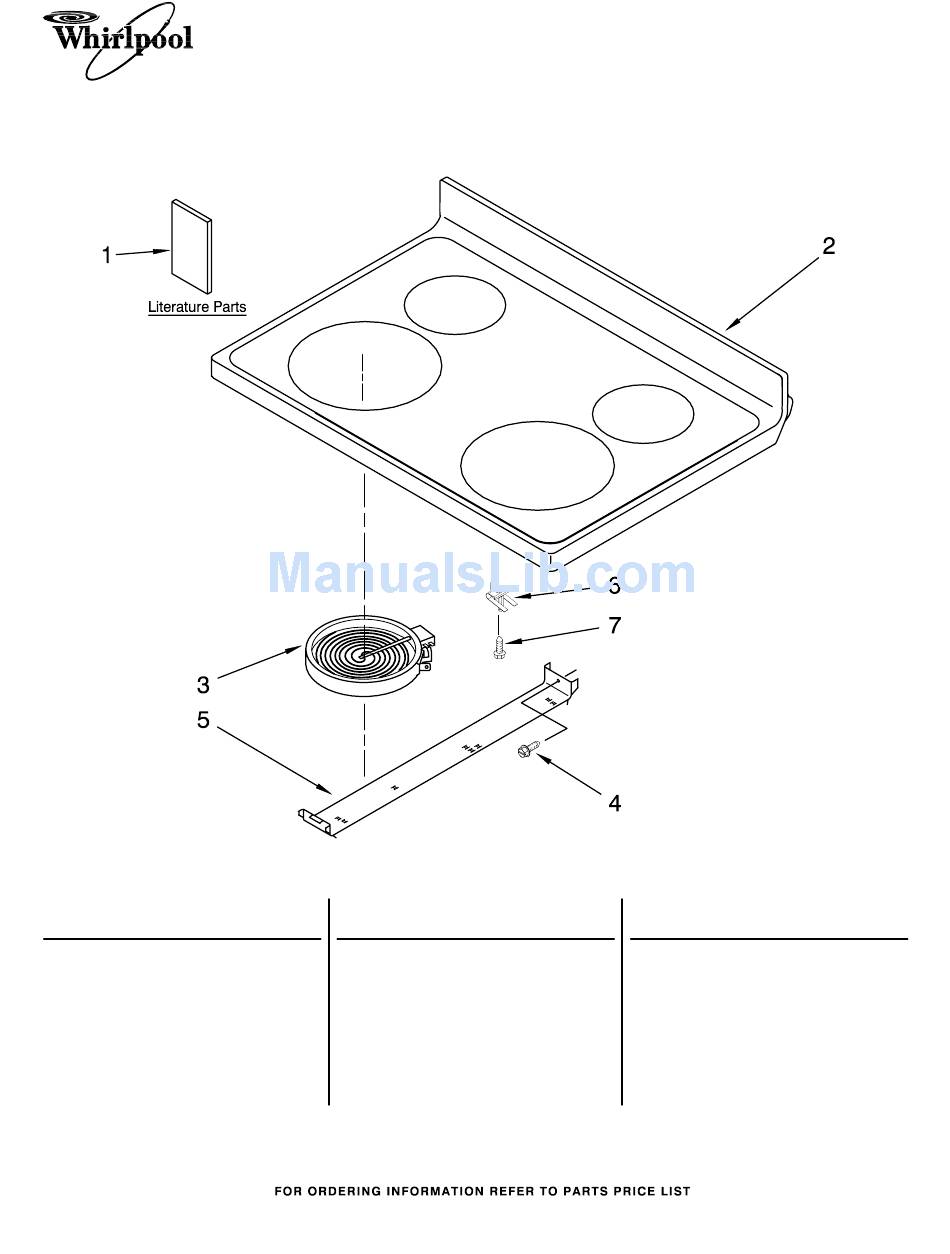

COOKTOP PARTS
For Models: RF272LXTD3
(Universal Silver)
Illus.
Part
No.
No.
DESCRIPTION
2 W10134935 Cooktop
3
Element, Surface
8273992 2500 W − LF/RF
8273994 1200 W − LR/RR
1
30" ELECTRIC FREESTANDING
SELF CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
4
3196169 Screw
5
8272791 Bracket, Element
6 W10035930 Spring, Locator
7
3196170 Screw
Part No. W10176979 Rev.A
