Illus.
Part
No.
No.
DESCRIPTION
1
Literature
9762996 Instructions
Installations
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
W10116309 Tech Sheet
9762761 Safer Cooking Tips
05−07 Litho in U.S.A. (rek)

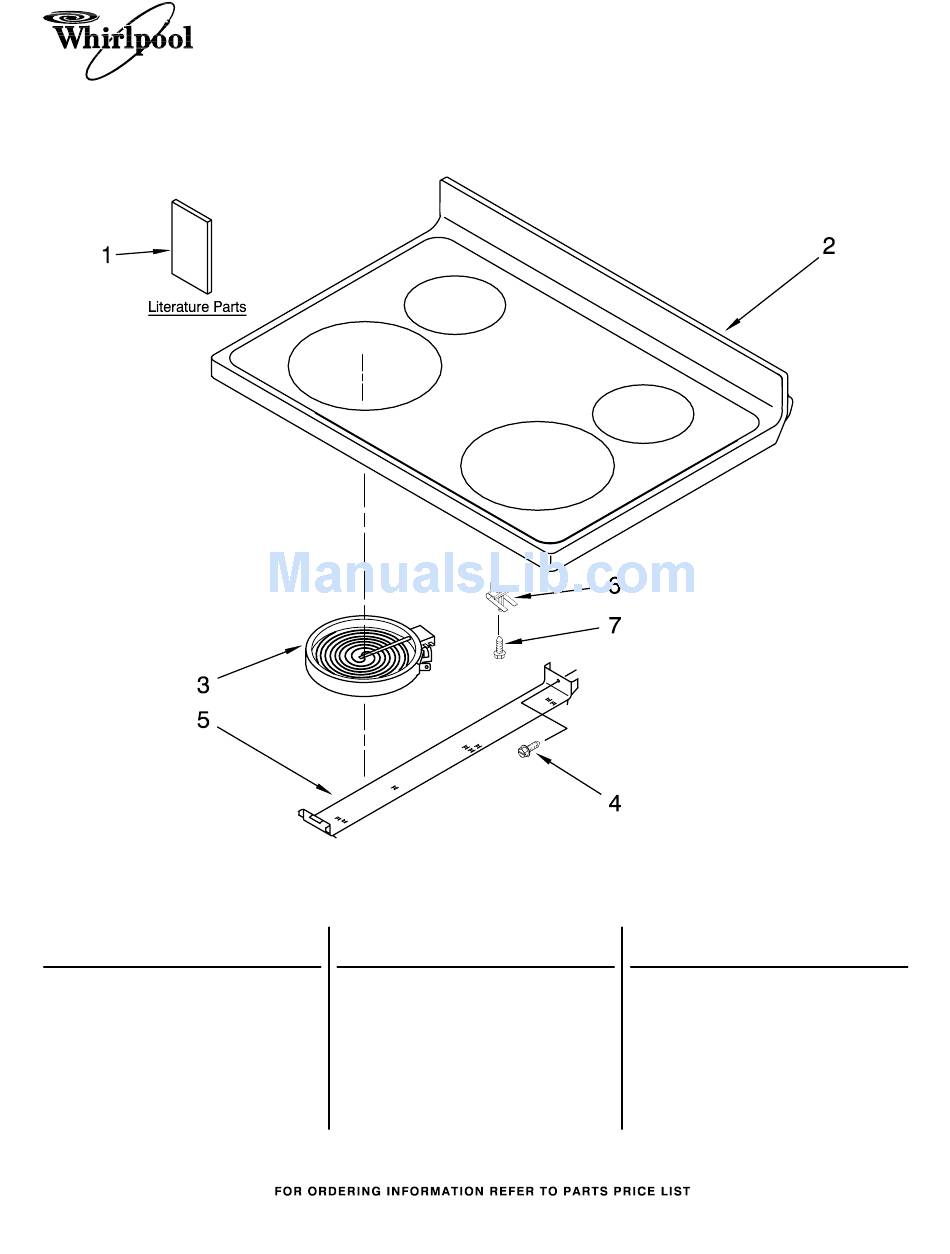

COOKTOP PARTS
For Models: RF272LXTD1
(Universal Silver)
Illus.
Part
No.
No.
DESCRIPTION
2
9763326 Cooktop
3
Element, Surface
8273992 2500 W − LF/RF
8273994 1200 W − LR/RR
1
30" ELECTRIC FREESTANDING
SELF CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
4
3196169 Screw
5
8272791 Bracket, Element
6 W10035930 Spring, Locator
7
3196170 Screw
Part No. W10139616 Rev. A
