Whirlpool RF110AXSQ3 Parts List

Whirlpool RF110AXSQ3 Parts List

30" electric freestanding standard clean range
Hide thumbs Also See for RF110AXSQ3:
1
2
3
4
5
6
7

Advertisement

Table of Contents

See also: Use and Care Manual
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
W10141166 Instructions,
Installation
9763000 Owners Manual
W10114281 Sheet, Tech
9762761 Safer Cooking Tips
Template,Anti−Tip
9757142 English/Spanish
9757143 English/French
5−08 Litho in U.S.A. (mo)(bay)

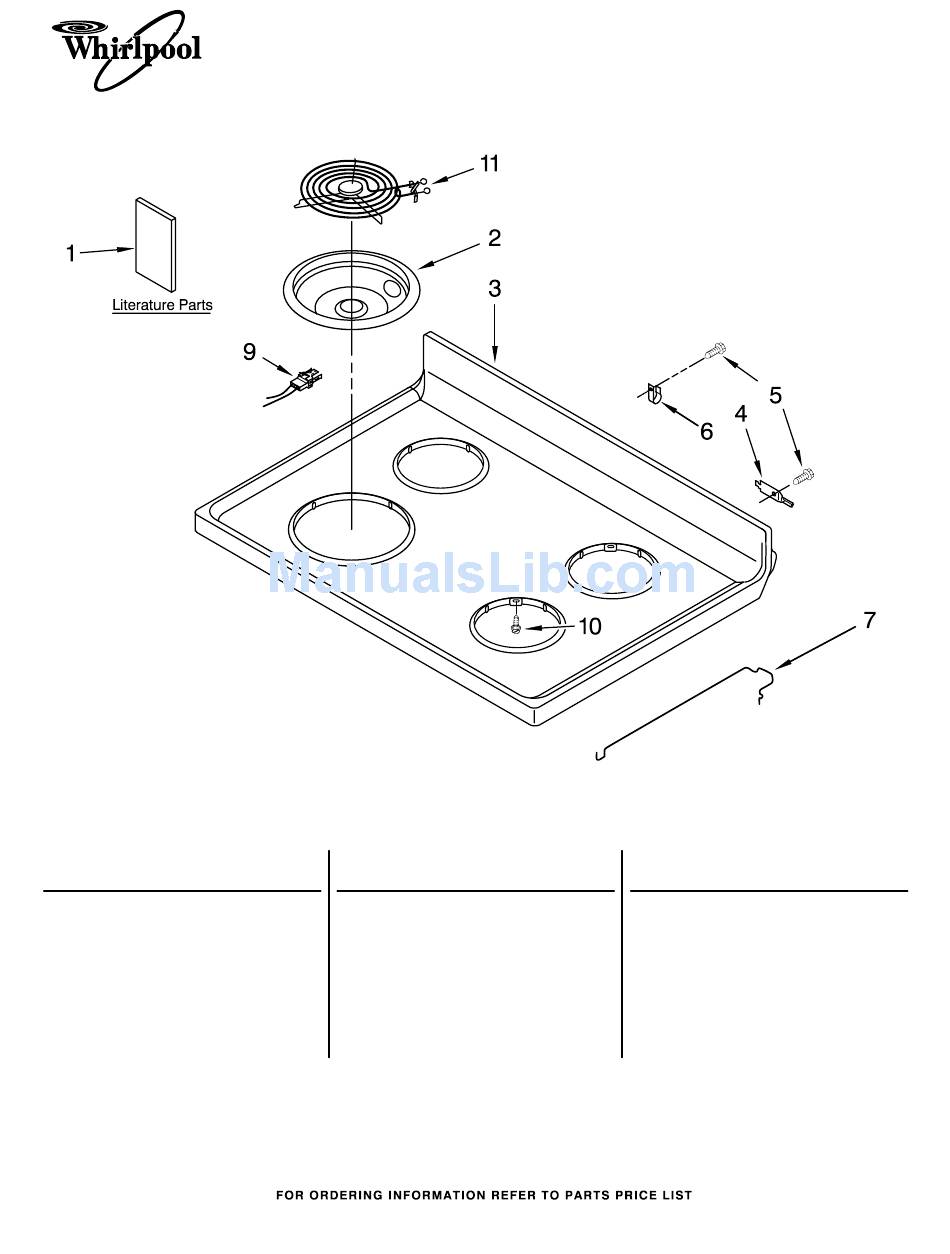

COOKTOP PARTS
For Model: RF110AXSQ3
(Designer White)
Illus.
Part
No.
No.
DESCRIPTION
2
Bowl, Drip
3195208 6" Chrome (3)
3195209 8" Chrome (1)
3
Cooktop
3186235 White
4
3195060 Hinge, Cooktop (2)
5
3196178 Screw
1
30" ELECTRIC FREESTANDING
STANDARD CLEAN RANGE
Illus.
Part
No.
No.
DESCRIPTION
6
308605 Strain Relief
7
3195812 Rod, Support (2)
9
814399 Receptacle, Elmnt
10
3196154 Screw
11
Element, Surface
9761348 6" (3)
9761346 8" (1)
Part No. W10206581 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF110AXSQ3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whirlpool RF110AXSQ3

Summary of Contents for Whirlpool RF110AXSQ3

  • Page 1 9763000 Owners Manual W10114281 Sheet, Tech 9762761 Safer Cooking Tips Template,Anti−Tip 9757142 English/Spanish 9757143 English/French 5−08 Litho in U.S.A. (mo)(bay) COOKTOP PARTS For Model: RF110AXSQ3 (Designer White) Illus. Part DESCRIPTION Bowl, Drip 3195208 6" Chrome (3) 3195209 8" Chrome (1)
  • Page 2 W10009040 Left Hand White W10009050 Right Hand White 9757609 Nameplate Panel, Backguard W10170674 White Switch, Infinite 3148953 Use W/ 8" Element 3148951 Use W/ 6" Element For Model: RF110AXSQ3 (Designer White) Illus. Part DESCRIPTION 8523265 Indicator, 125V 9762215 Cntrl−Elec ROC60 7 W10182322 Brkt−Mntg,Console...
  • Page 3 CHASSIS PARTS For Model: RF110AXSQ3 (Designer White) W10206581...
  • Page 4 CHASSIS PARTS For Model: RF110AXSQ3 (Designer White) Illus. Part DESCRIPTION 3169143 Vent Tube 3186144 Box, Burner Panel, Side (2) 8053830 White−Textured 4 W10129032 Seal, Oven Door 9757340 Element, Broil 9758541 Element, Bake 7 W10031780 Screw 9760407 Brkt, Mounting 9 W10114344 Glide, Drawer Frnt...
  • Page 5 DRAWER & BROILER PARTS W10206581 For Model: RF110AXSQ3 (Designer White) Illus. Part DESCRIPTION 1 W10138079 Rack, Oven (2) 9761031 Drawer, Storage 3 W10174396 Bracket, Drawer(2) Rivet, Push (2) 3196814 White Panel, Drawer Frnt 8053339 White 8053334 Glide, Drawer (2) 3196168 Screw...

  • Page 6: Door Parts

    Illus. Part DESCRIPTION 1 W10031790 Screw 9761342 Liner 8272618 Insulation, Door 4 W10031780 Screw 9761495 Hinge (2) 3196163 Screw DOOR PARTS For Model: RF110AXSQ3 (Designer White) Illus. Part DESCRIPTION Panel, Steel 3195560 White Spacer, Handle 3196143 White Handle, Oven Door 3195263 White Illus.
  • Page 7 242825 Wire, Red 14 Ga. 150 c 242831 Wire, Red 14 Ga. 200 c 242827 Wire, Yellow 14 Ga. 150 c W10206581 OPTIONAL PARTS For Model: RF110AXSQ3 (Designer White) Illus. Part DESCRIPTION REFINISHING MATERIAL 799832 Kit, Porcelain Repair (White) 242756 Touch−Up Self−Clean(1/2 Pt)
