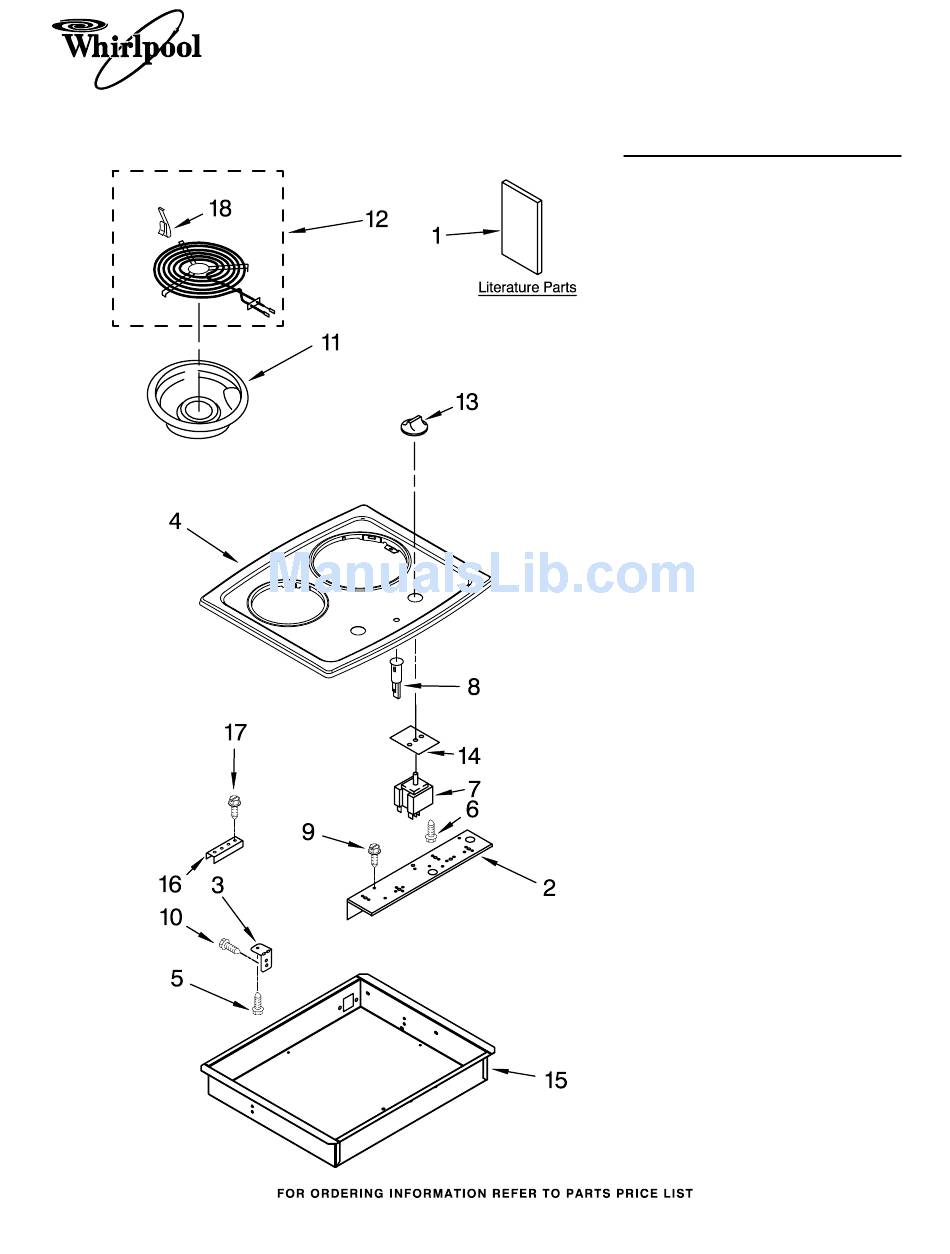

COOKTOP PARTS
For Models:RCS2012RS04
(Stainless)
1
20" ELECTRIC
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
8286310 Installation
Instructions
W10162164 Use & Care Guide
Safer Cooking Tips
9762761 English
W10065852 French
2
8286443 Bracket, Switch
Mounting
3
3192454 Bracket, Mounting
4 W10140169 Cooktop
5
3196160 Screw
6
3400855 Screw
7
Switch Infinite
3191472 Use W/8" Element
(Silver Shaft)
3191471 Use W/6" Element
(Blue Shaft)
8
4456181 Light, Indicator
9
3177991 Screw
10
3196537 Screw
11
Pan, Surface Unit
3195208 6"
3195209 8"
12
Element, Surface
8053265 6"
8053267 8"
13
8286043BL Knob, Control (2)
14
3183956 Seal, Switch
Shaft (2)
15 W10005700 Burner Box
16
4455917 Bracket, Mounting
17
3400093 Screw
18
3195917 Clip, Element
Part No. W10207233 Rev. A
