8−05 Litho in U.S.A. (cre)

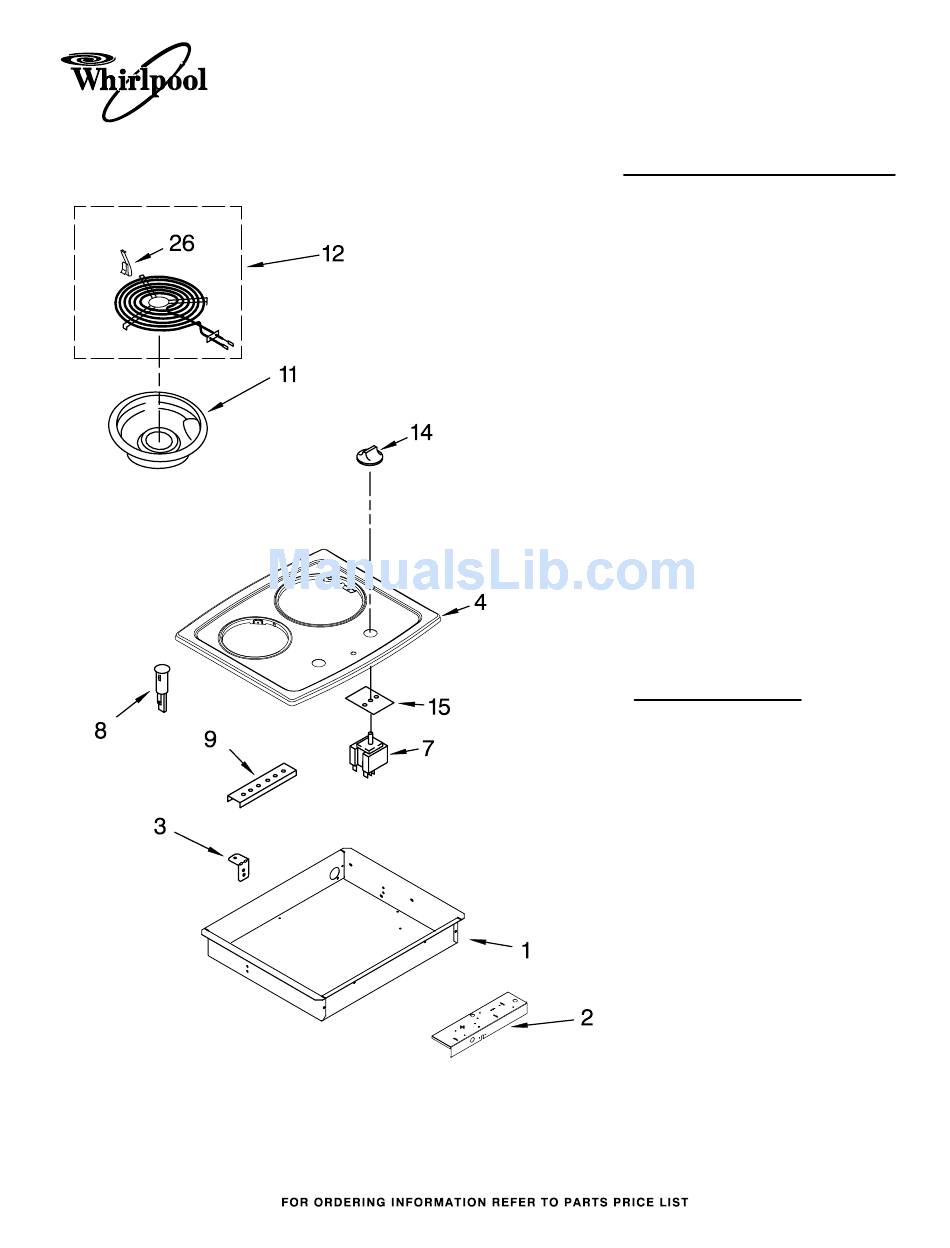

COOKTOP PARTS
For Models:RCS2002RS00
(Stainless Steel)
1
Illus.
Part
No.
No.
DESCRIPTION
1
8286376 Burner Box
2
8286402 Bracket, Switch
Mounting
3400855 Screw
3
3192454 Bracket, Mounting
3196537 Screw
4
Cooktop
8286389LM Stainless Steel
7
Switch Infinite
3191475 Use W/8" Element
(Yellow Shaft)
3191472 Use W/6" Element
(Blue Shaft)
3400855 Screw
8
3192213 Light, Indicator
9
4455917 Bracket, Mounting
3400093 Screw
11
Pan, Surface Unit
3195208 6"
3195209 8"
3400843 Screw
12
Element, Surface
3191460 6"
3191459 8"
14
8286043BL Knob, Control (2)
15
3183956 Seal, Switch
Shaft (2)
26
3195917 Clip, Element
LITERATURE PARTS
8286310 Installation,
Instructions
8286311 Use & Care Guide
3192350 Wire Diagram
3191638 Tips−Safer Cooking
Part No. 8186310
20"ELECTRIC
BUILT−IN
COOKTOP
