Whirlpool GLS3665RS0 Parts List

36" gas cooktop
Hide thumbs


Advertisement

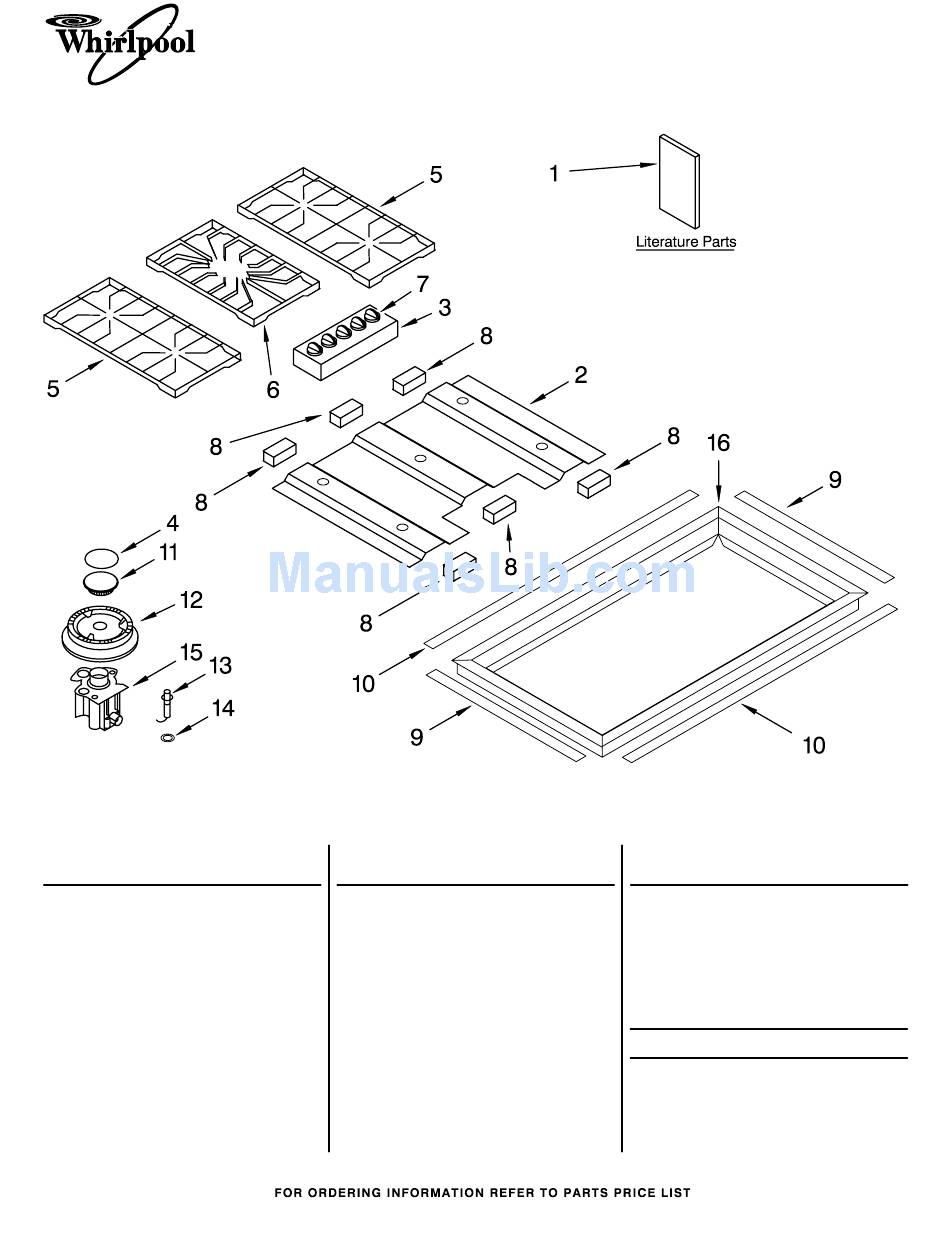

COOKTOP, BURNER AND GRATE PARTS
Illus.
Part
No.
No.
DESCRIPTION
1
Literature Parts
9761893 Installation
Instructions
9761890 Use & Care Guide
9762236 LP Conversion
Instructions
2
8190902 Cooktop
3
8190909 Panel, Control
4
Cap, Burner
8190894 RR − LF
8190893 RF − LR
8190895 Center
5
8190891 Grates (2)
6
8190980 Grate, Center
8−05 Litho in U.S.A. (jac)
For Models: GLS3665RS0
(Stainless Steel)
Illus.
Part
No.
No.
DESCRIPTION
7
8190908 Knob, Control (5)
8
8190903 Seal, Foam (6)
3/8 x 1/2 x 5.5"
9
8190905 Seal, Foam (2)
1/8 x 1/2 x 18"
10
8190981 Seal, Foam (2)
1/8 x 1/2 x 33"
11
Head, Burner
8190897 RR−LF
8190896 RF−LR
8190898 Center
12
Base, Burner
8190900 RR−LF
8190899 RF−LR
8190901 Center
1
36" GAS COOKTOP
Illus.
Part
No.
No.
DESCRIPTION
13
8190892 Ignitor, Surf (5)
14
8190904 Clip, Spring (5)
15
Holder, Orifice
8190931 RR−LF
8190930 RF−LR
8190932 Center
16
8190906 Frame, Top
Following Parts Not Illustrated
8190927 Harness, Wire
8190933 Ignitor Wire Kit
Part No. 8190974
