Whirlpool GBS277PRB01 Parts List

27" built-in electric single convection oven
Hide thumbs


Advertisement

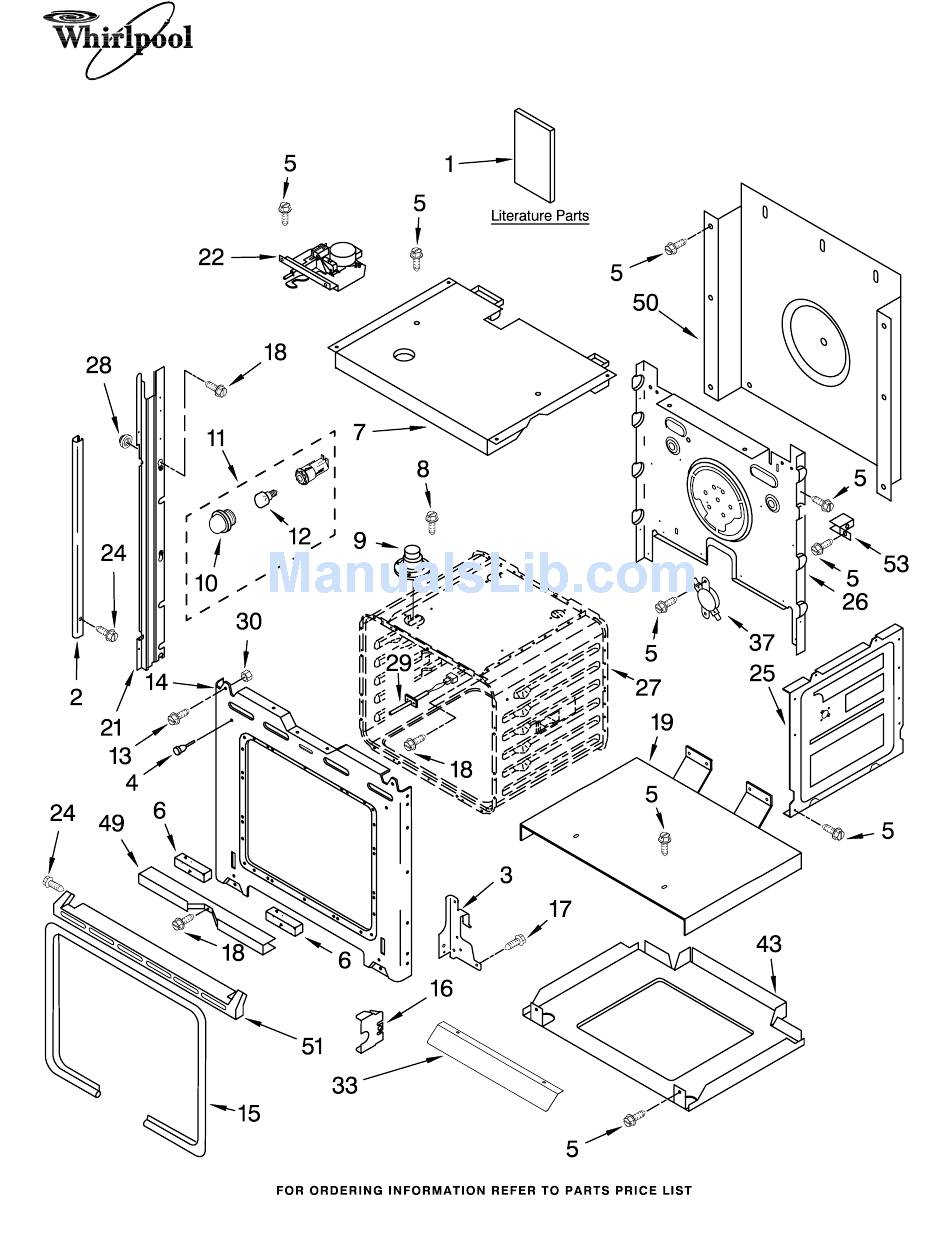

OVEN PARTS

27" BUILT−IN ELECTRIC
SINGLE CONVECTION OVEN
For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01
(GOLD LINE)
(Designer White)
(Black)
(Stainless Steel)
8−09 Litho in U.S.A. (cre)
1
Part No. 8186425 Rev. A

Advertisement

Table of Contents
loading

  Related Manuals for Whirlpool GBS277PRB01

  Summary of Contents for Whirlpool GBS277PRB01

  • Page 1: Oven Parts

    OVEN PARTS 27" BUILT−IN ELECTRIC SINGLE CONVECTION OVEN For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01 (GOLD LINE) (Designer White) (Black) (Stainless Steel) 8−09 Litho in U.S.A. (cre) Part No. 8186425 Rev. A...
  • Page 2 For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01 Illus. Part DESCRIPTION Literature Parts 8303648 Installation Instructions Owners Manual 8304075 English 8304076 French 8301758 Tech Sheet 8303946 Installation/ Undercounter 8301928 Installation/ Micro Trim Kit 3191638 Safer Cooking Tips 9759133 Safer Cooking Tips Trim, Side...
  • Page 3: Control Panel Parts

    For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01 8186425 CONTROL PANEL PARTS (Designer White) (Black) Illus. Part DESCRIPTION Control Panel 8302845 White 8302844 Black/Stainless Assy, Switch 8303180 Black 8303222 White 8303885 Assy, Control 8304162 Backer, Control 4449745 Screw 3400832 Screw 8302878 Trim−Panel (Use on S.Steel...
  • Page 4: Oven Door Parts

    For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01 Illus. Part DESCRIPTION 8303699 Door Liner 8303810 Nameplate 4449253 Glass, Inner 4451721 Insulation, Door 8303166 Bracket, Handle 4451040 Screw 9759224 Glass, Inner 4449809 Screw, 8−18 x 3/8 4449743 Screw OVEN DOOR PARTS (Designer White) (Black) Illus.
  • Page 5 For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01 8186425 INTERNAL OVEN PARTS (Designer White) (Black) Illus. Part DESCRIPTION 4449154 Screw 4456103 Element, Broil 4457277 Grill, Broiler 4457276 Pan, Broiler 3181534 Rack, Roasting 4448715 Rack, Oven 4452153 Element, Bake 4451583 Motor, Convection 4452226 Blade, Fan...
  • Page 6 For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01 Illus. Part DESCRIPTION 4451759 Vent, Exhaust 4455178 Elbow, Vent−Top 4457289 Blower 60MM 4455177 Elbow, Vent−Bottom 4449809 Screw, 8−18 x 3/8 3400080 Screw 4451985 Suppressor TOP VENTING PARTS (Designer White) (Black) Illus. Part DESCRIPTION 4449868 Block, Terminal...
  • Page 7: Optional Parts

    For Models: GBS277PRQ01, GBS277PRB01, GBS277PRS01 Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 261869 Cord Brown 72032 Black PAINT, SPRAY 350930 White 261900 Citrine White 830864 Black ADHESIVE 591014 Adhesive Loctite (1/3 oz.) 482338 Sealer, Silastic (3 oz.) 8186425 OPTIONAL PARTS...

This manual is also suitable for:

Gbs277prq01Gbs277prs01
