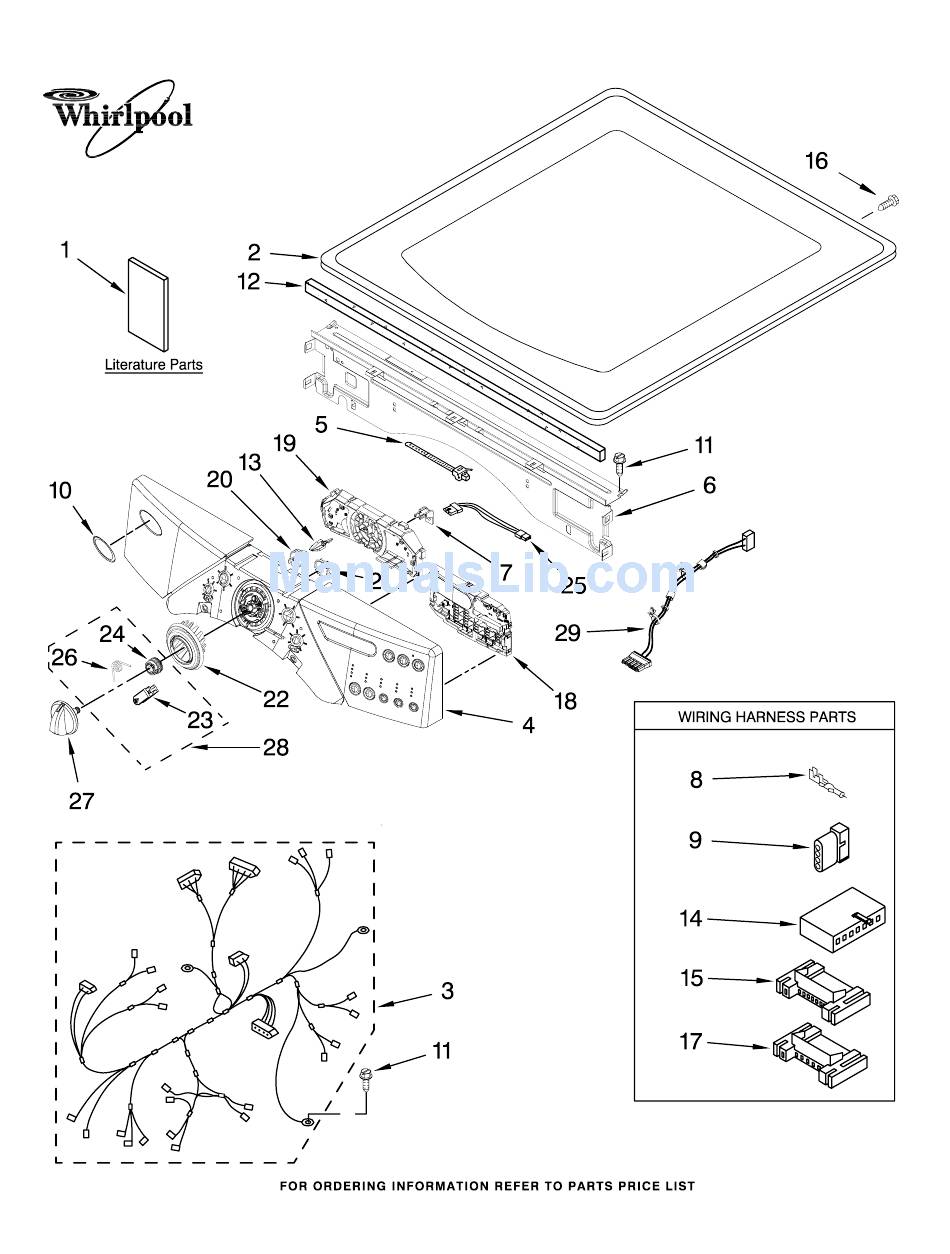

- Page 1 TOP AND CONSOLE PARTS 27" GAS DRYER For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 (White) (Aspen) (Ultimate Silver) (Black/Chrome) 2−08 LITHO IN U.S.A. (LAN) Part No. W10189037 Rev. A...
- Page 2 TOP AND CONSOLE PARTS For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 Illus. Part DESCRIPTION Literature Parts W10136970 Use & Care Guide W10177462 Tech Sheet W10139791 Guide, Quick Start W10139322 Sheet, Tip Steam Dry 8519251 White W10140290 Aspen W10114785 Ultimate Silver 8579997 Black/Chrome...
-
Page 3: Cabinet Parts
CABINET PARTS For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 (White) (Aspen) (Ultimate Silver) (Black/Chrome) W10189037... - Page 4 For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 Illus. Part DESCRIPTION 8317340 Cover, Terminal Block 3390814 Screw, 8−18 x 3/8 8533974 Screw, 10−32 x 5/8 (Ground) Panel, Side (R.H.) W10139003 White W10139013 Aspen W10139009 Ultimate Silver W10139010 Black/Chrome 3394881 Switch, Broken Belt 3357011 Screw,10−16 x 1/2...
- Page 5 BULKHEAD PARTS For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 (White) (Aspen) (Ultimate Silver) (Black/Chrome) W10189037...
- Page 6 For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 Illus. Part DESCRIPTION 8575324 Shaft, R.H. Thread 8066208 Clip−Spring 3394984 Door, Lint Screen 3406653 Harness, Sensor 3394346 Air Duct Assembly 697813 Seal, Outlet Housing 697814 Seal, Drum Front 3934666 Nut,3/8 x 16(R.H.) 9 W10128544 Cap−Plug...
-
Page 7: Burner Assembly
8576353 BURNER ASSEMBLY For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 (White) (Aspen) (Ultimate Silver) (Black/Chrome) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−153A W10189037... - Page 8 8576353 BURNER ASSEMBLY For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 (White) (Aspen) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8576353 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2...
-
Page 9: Door Parts
For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 Illus. Part DESCRIPTION Label, Hinge Hole W10085210 White W10085230 Silver 2 W10139920 Door Hinge Assembly 3 W10159996 Screw, 10−24 x 3/64 9742177 Screw, 8−18 x 5/8 5 W10048910 Screw−Plug 6 W10139457 Seal−Door Handle, Ring & Pad... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models: WGD9600TW1, WGD9600TA1, WGD9600TU1, WGD9600TB1 (White) (Aspen) Illus. Part PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black 8212605 Ultimate Silver W10157756 New Aspen PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 786020 Black 350938 Primer, Gray PAINT, BULK (1 qt.)
