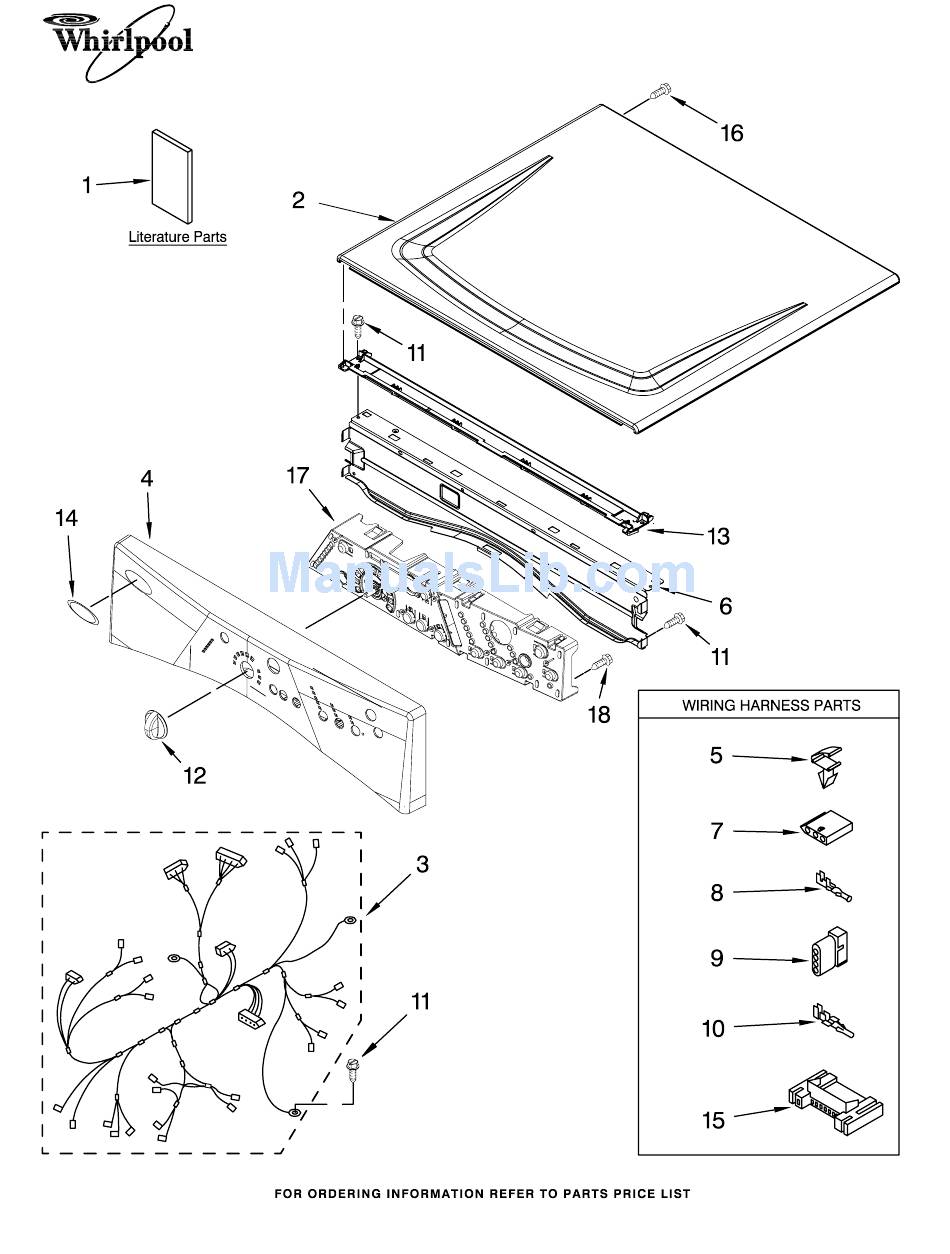

- Page 1 TOP AND CONSOLE PARTS 27" GAS DRYER For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 (White) (Black) (Ocean Sapphire) 10−09 Printed in U.S.A. (MP) (psw) Part No. W10177419 Rev. B...
- Page 2 TOP AND CONSOLE PARTS For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 (White) (Black) (Ocean Sapphire) Illus. Part DESCRIPTION Literature Parts W10151582 Use & Care Guide 8578904 Guide, Quick Start 8578834 Tech Sheet 8563730 White W10129703 Black W10174561 Ocean Sapphire 3 W10110973 Harness, Main...
-
Page 3: Cabinet Parts
CABINET PARTS For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 (White) (Black) (Ocean Sapphire) W10177419... - Page 4 For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 Illus. Part DESCRIPTION 8317340 Cover, Terminal Block 3390814 Screw, 8−18 x 3/8 8533974 Screw Ground Panel, Side (R.H.) 8565048 White W10112963 Black W10174559 Ocean Sapphire 3394881 Switch, Broken Belt 3357011 Screw, 10−16 x 1/2 Panel, Side (L.H.)
- Page 5 BULKHEAD PARTS For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 (White) (Black) (Ocean Sapphire) W10177419...
- Page 6 For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 Illus. Part DESCRIPTION 8575325 Shaft, R.H. Thread 3390647 Screw, 8−18 x 1/2 3 W10153413 Door, Lint Screen 3406653 Harness, Sensor 3394346 Air Duct Assembly 697813 Seal, Outlet Housing 697814 Seal, Drum Front 3934666 Nut,3/8 x 16(R.H.)
-
Page 7: Burner Assembly
8576353 BURNER ASSEMBLY For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 (White) (Black) (Ocean Sapphire) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES BA−153A W10177419... - Page 8 8576353 BURNER ASSEMBLY For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 (White) USE WITH TYPE 1 − NATURAL AND TYPE 4 LIQUEFIED PROPANE AND BUTANE GASES Illus. Part 8576353 Burner Assembly 688617 Tube, Burner 694298 Bracket, Ignitor 686590 Ignitor 3393909 Screw & Washer 343641 Screw, 10−16 x 1/2...
-
Page 9: Door Parts
For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 Illus. Part DESCRIPTION 8565119 Plug Strip 8578887 Door Hinge Assembly 3393258 Screw, 10−16 x 3/64 8534044 Screw, 8−18 x 1/2 Cover, Hinge 8571839 White W10129722 Black W10182078 Ocean Sapphire 8579663 Seal, Window 8534022 Screw, 8−18 x 1/16 8 W10159996 Screw, 10−24 x 3/64... - Page 10 OPTIONAL PARTS (NOT INCLUDED) For Model: WGD8300SW2, WGD8300SB2, WGD8300SE2 (White) Illus. Part DESCRIPTION PAINT, TOUCH−UP (1/2oz.) 72017 White 72032 Black W10202940 Ocean Sapphire PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350930 Black 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut)
