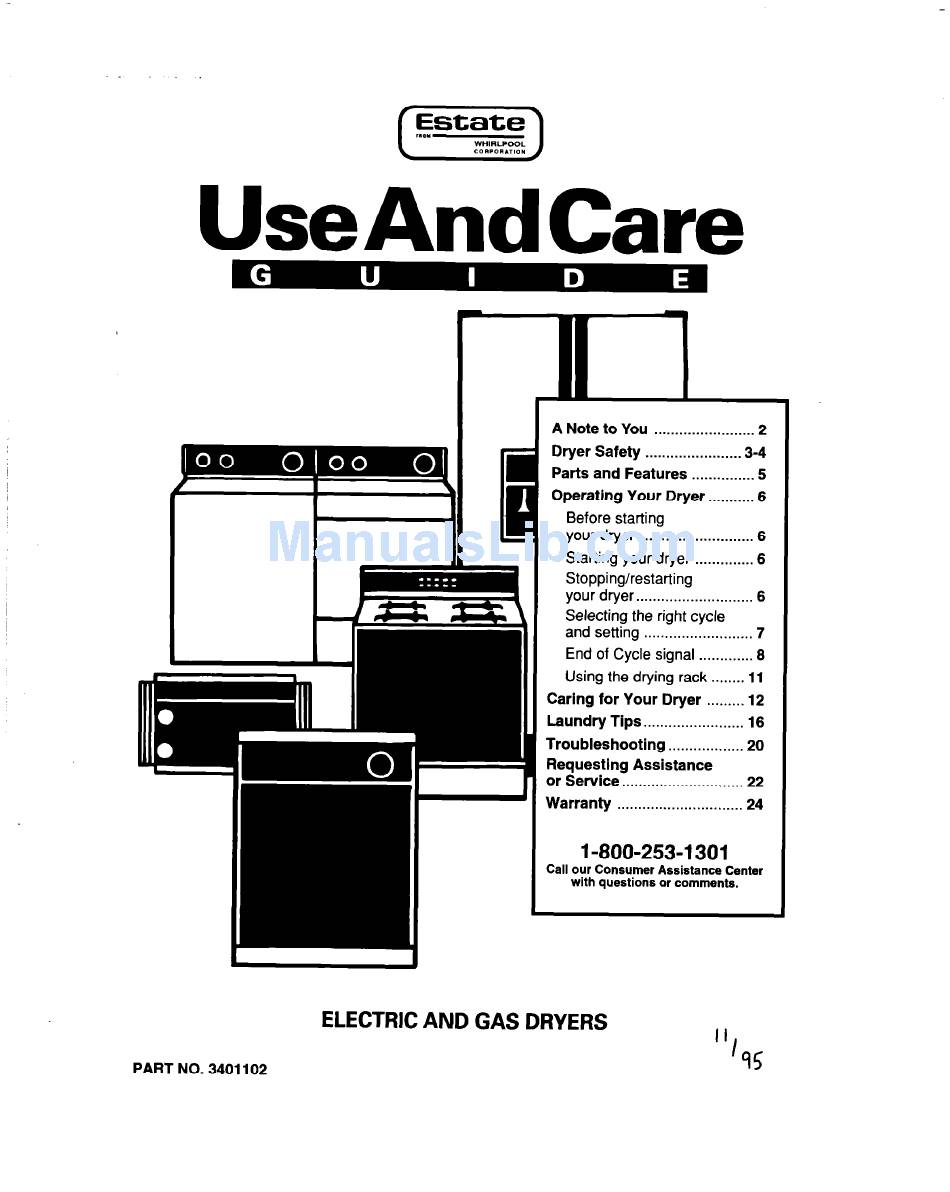

UseAndCare ELECTRIC AND GAS DRYERS PART NO. 3401102 A Note to You ... Dryer Safety ... 3-4 Parts and Features ... 5 Your Dryer ... 6 Operating Before starting your dryer..Starting your dryer ... 6 Stopping/restarting your dryer..Selecting the right cycle and setting ... -
Page 2: A Note To You
A Note to You Thank you for buying an ESTATE” ESTATE appliances give you all the functionality price. To ensure you enjoy years of trouble-free Guide. It contains valuable information about how to operate and maintain your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. -
Page 3: Dryer Safety
Dryer Safety Your safety is important to us. This guide contains safety statements under warning symbols. Please pay special attention to these symbols and follow any instructions given. Here is a brief explana- tion of the use of the symbol. IMPORTANT SAFETY - Do not store or use gasoline... - Page 4 Important Safetv Read all instructions before using your dryer. Dryer must be electrically grounded. See the Installation Instructions. Do not machine wash or machine dry items cleaned, washed, soaked in, or spotted with wax, paint, gasoline, oil, dry cleaning solvents, or other flammable fluids.
-
Page 5: Parts And Features
Parts and Features The parts and features of your dryer are illustrated below. Become familiar with all parts and features before using your dryer. Page references are included next to some features, Refer to those pages for more information about the features. NOTE: The drawings in this book may vary from your dryer model. -
Page 6: Operating Your Dryer
Operating Your Dryer The information in this section helps you learn to use your dryer efficiently and safely. Refer to “Laundry Tips” on page 16 for additional information on sorting, loading, and drying most types of washables. Before starting your dryer Before using your dryer, wipe the dryer drum with a damp cloth to remove dust from storing and shipping. -
Page 7: Selecting The Right Cycle And Setting
Selecting the right The following pages describe the cycles on your dryer. Refer to the charts on pages 9-l 0 for help in selecting drying cycles. Drying guidelines Always follow care label directions when they are available. Use the No Heat Fluff cycle, or line dry rubber, plastic, delicate, and heat-sensitive fabrics (see page 10). -
Page 8: End Of Cycle Signal
Damp Dry Cycle (on some models) Use Damp Dry to dry items to damp level or to dry items that do not require an entire drying cycle. Two examples are heavy cottons, such as jeans, which you do not want to become stiff, or cotton clothes which are easier to press when damp. - Page 9 Drying cycles chart Use the chart below to guide you when making drying selections. The chart sug- gests heat settings and drying times for various loads. NOTES: Use an Automatic cycle to dry most loads. Use a Timed cycle only if the recom- mended Automatic cycle is not available.
- Page 10 No Heat Fluff cycle, or line drying The chart below includes examples of items that require drying without heat. Use the No Heat Fluff cycle, or place the items on a line or rack to air dry. NOTES: Heat-sensitive fabrics should not be dried in the dryer.
-
Page 11: Using The Drying Rack
Using the drying rack (on some models) The drying rack lets you dry items that you may not want to tumble. The rack does not move, but the drum turns. 1. Fit rear legs of the rack into indentations -in the back wall of the dryer. Lower the front so the legs rest on the dryer opening. -
Page 12: Caring For Your Dryer
Caring for Your Dryer Proper care of your dryer can extend its life. This section explains how to care for your dryer properly and safely. Cleaning the lint screen Every load cleaning The lint screen is located under a lid on top of the dryer. - Page 13 Cleaning the dryer Garments which contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. Explosion Hazard Use nonflammable cleaner. Failure to do so can result In death, explosion, or fire. interior To clean dryer drum: 1.
- Page 14 Removing accumulated Lint can gather inside the dryer and be a fuel for fire. Lint should be removed every two to three years, or more often, depending on dryer usage. Cleaning should be done by a quali- fied person. If you have any questions or comments, please call our Consumer Assistance Center at l-800-253-1 301.
- Page 15 If your dryer is gas and has a full front panel, remove front panel as follows: Unplug the power supply cord or turn off the electrical power. Open lint screen lid. Remove two screws from lint screen area. Open top by pulling forward and up at each front corner (see View A).
-
Page 16: Laundry Tips
Laundry Tips This section provides information on preparing clothes for drying, drying guidelines, instructions for drying special-care items. NOTES: Refer to your washer Use and Care Guide for proper washing techniques laundry tips. *See pages 3 and 4 of this book for Important Safety Information. Sorting clothes Separate dark from light colors;... - Page 17 Using dryer fabric Dryer fabric softeners are recommended reducing static cling and for softening fabrics. Always follow package instructions carefully. Put one fabric softener sheet on top of the load before starting dryer. Do not add a fabric softener sheet after the drying cycle has started.
- Page 18 Drying special-care Most garments and household textiles have manufacturer’s instructions. Always follow care label directions include drying instructions for most types of washables. instructions for special-care washables. TEMS DRYING INSTRUCTIONS 31ankets and Machine drying knitted woolens is not recommended. Moolens when wet and allow to air dry.
- Page 19 DRYING INSTRUCTIONS ITEMS Knits, washable Do not overdry knits. Overdrying can cause shrinking and static cling. 1. Select cycle according to fabric and construction. 2. Turn synthetics and blends inside out when drying to avoid pilling. 3. Remove cotton and rayon knits while still slightly damp. Stretch into shape and lay flat to finish drying.
-
Page 20: Troubleshooting
Troubleshooting Most laundering problems are easily solved if you understand the cause. Check the following list for laundry problems you may have and their possible causes. Also refer to the next page for a dryer checklist which can help you solve some simple problems without calling for service. -
Page 21: Requesting Assistance Or Service
Common dryer problems Before calling for service, check these: Is the dryer door firmly closed? Are the controls set in an ON position? Did you firmly push the Start Button? Is lint screen clogged with lint? Is the power cord plugged in? •i!! Have you blown a fuse or tripped the circuit breaker? Is exhaust duct or outside exhaust hood clogged with lint? - Page 22 ESTATE appliance. To locate FSP replacement area, refer to Step 2 or call the Whirlpool Consumer Assistance Center number in Step 1. 4. If you are not satisfied...
-
Page 23: Or Service
LENGTH OF WARRANTY 1 WHIRLPOOL FSP@’ replacement FULL ONE-YEAR WARRANTY From Date of Purchase defects in materials or workmanship. provided by an authorized Whirlpool service company. WHIRLPOOL WILL NOT PAY FOR A. Service calls to: 1. Correct the installation of your dryer.
