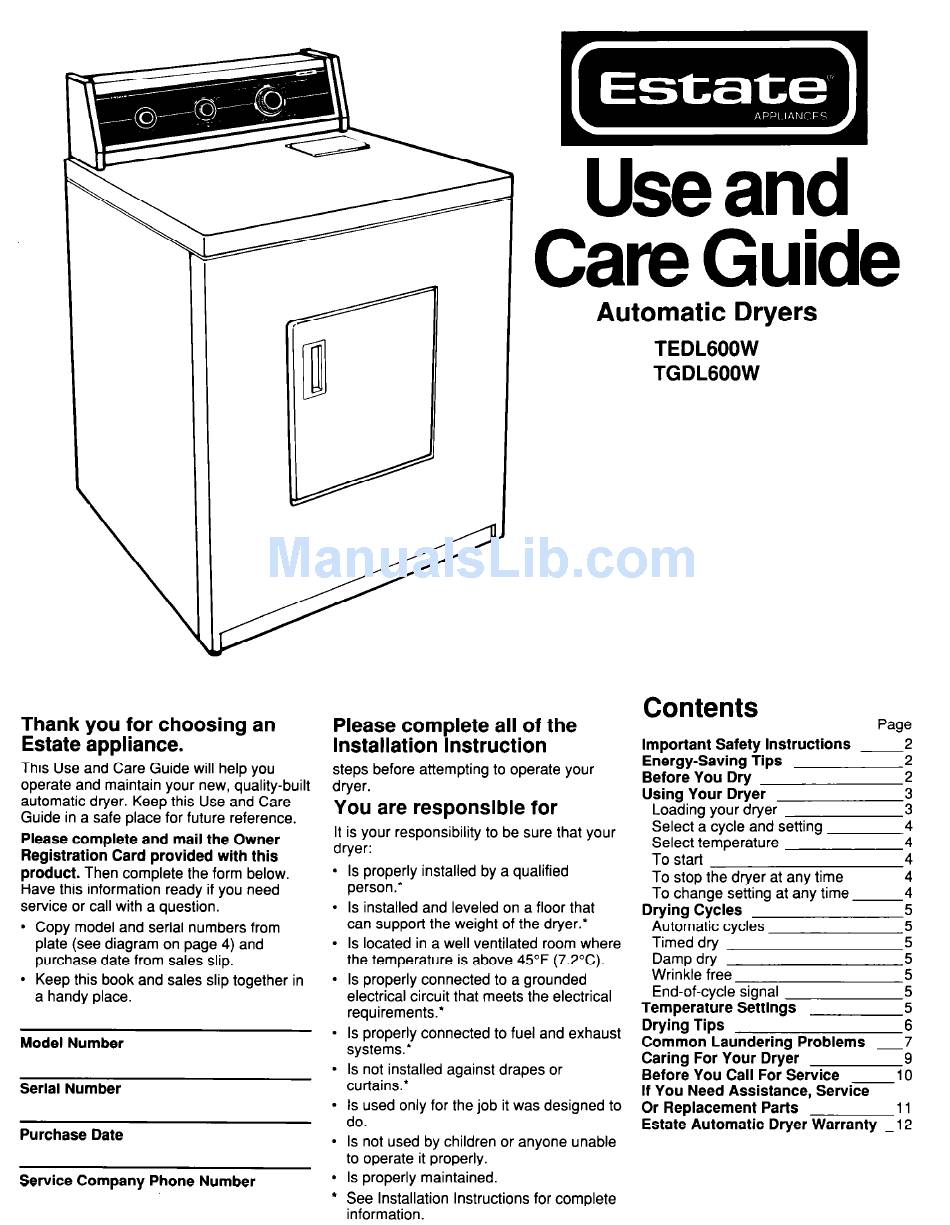

Use and
Thank you for choosing an
Estate appliance.
This Use and Care Guide will help you
operate and maintain your new, quality-built
automatic dryer. Keep this Use and Care
Guide in a safe place for future reference.
Please complete and mail the Owner
Registration Card provided with this
product.
Then complete the form below.
Have this information ready if you need
service or call with a question.
l
Copy model and serial numbers from
plate (see diagram on page 4) and
purchase date from sales slip.
l
Keep this book and sales slip together in
a handy place.
Model Number
Serial Number
Purchase Date
Service
Company
Phone
Number
Care Guide
Automatic
Dryers
TEDLGOOW
