Page 1: Table Of Contents

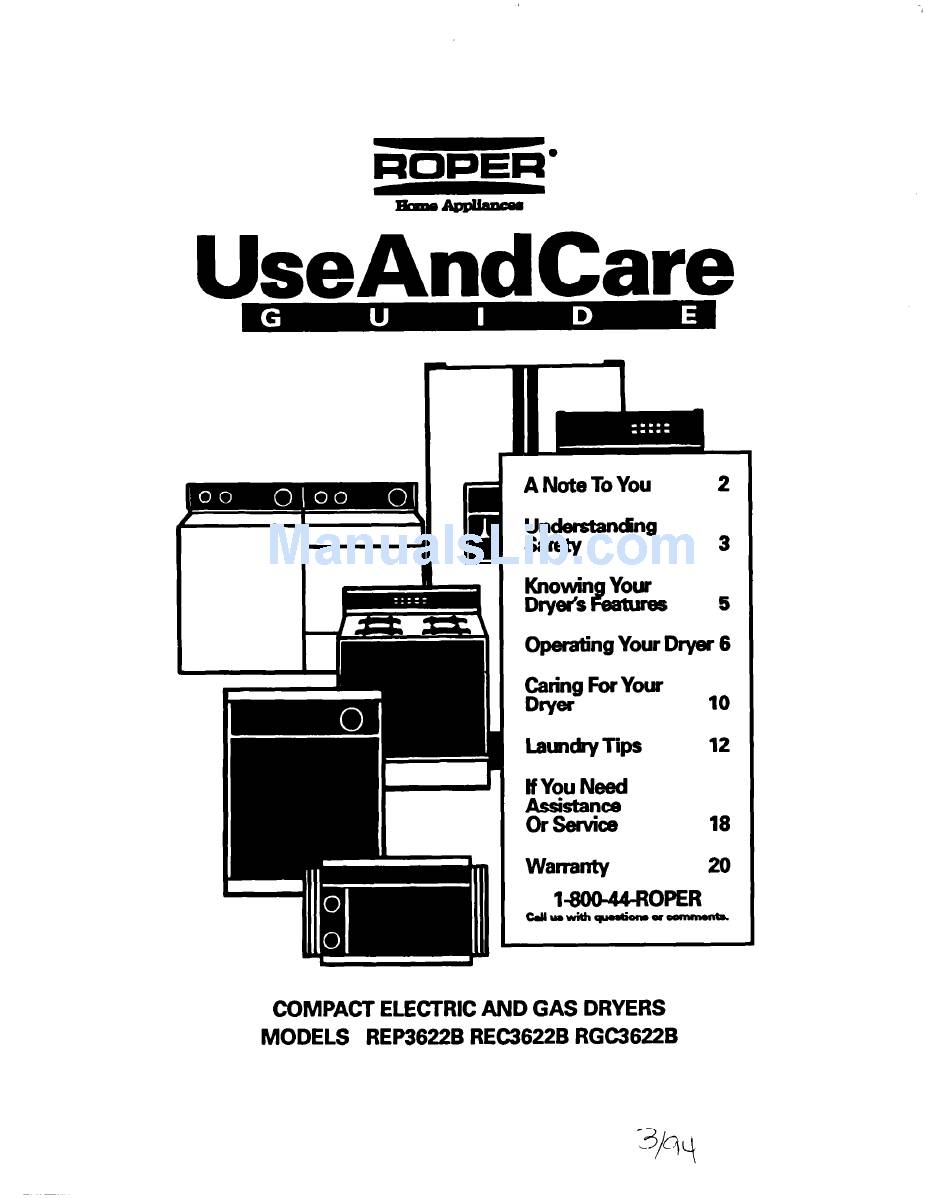

UseAndCare COMPACT ELECTRIC AND GAS DRYERS MODELS REP3622B REC3622B RGC3622B A Note To You Knowin Your Dryed!smms Operating Your Dryer 6 FOry- Laundry Tips If Yqu Need @!a: Warranty MOO4-ROPER cdlu8withqJodomwca#lmma... -
Page 2: A Note To You
A Note To You Thank you for buying a Rope@ You have purchased a quality, wo&claas gone into its manufacturing. Use thii Use and Care Guide to safely and efficiently operate and maintain your appliance. Complete and mail the Ownership Registration Card provided with your appliance. -
Page 3: Understanding Safety
Understanding For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal InJury or -Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance. - Page 4 IMPORTANT SAFEnr To reduce the rtsk of fire, electricel shock., or injury to persons when using your dryer, follow basic precsutions, including the following: Read all instructions before using your dryer. Do not machine wash or machine dry items cleaned, washed, soaked in, or spotted with wax, paint, gasoline, oil, dry cleaning solvents, and other flammable fluids.
-
Page 5: Knowin Your
KnowingYour The parts features of your dryer are illustrated below. Become familiar with all parts and features before using your dryer. NOTE: The drawings in this book may vary from your dryer model. They are designed to show the different features of all modele covered by this book. Your model may not include all features. Optional mounting kits... -
Page 6: Operating Your Dryer
Operating In This Section bfom starting &yr your 1...1... - ..-... 6 Stmding 01 mbpphg dryr Operating your dryer properly assures the best drying results. This section gives you important information to help you to select a cycle, time, and temperature. Before starting Refer to the information below, and “Laundry... -
Page 7: Selecting A Cycle
Selecting a cycle Use pages 7 to 0 to find information about drying cycles that may be on your model. To Sebot I cycle: 1. Turn the Cycle Control Knob either way to a desired time or setting. 2. Stop when the indicator points to the cycle you want. - Page 8 Using the Automatic Perm. PresJReg. cycle Use the Penn. Press/Peg. cycle to dry permanent press and some synthetic fabrfcs. Your dryer senses the dryness of the load and automatically shuts off when the selected dryness is reached. For the first few loads: 1.
- Page 9 FABRICS Foam Rubber-Pillows, bras, stuffed toys Plastk+Shower curtains, tablecloths Rubber-backed rugs Olefin, Polypropylene, Sheer nylon ‘Reset fir cycle as needed to complete drying. MODELS REC3622B RGC3622B REP3622B CYCLE 45-55 min 90-l 05 mir Tmed D@ng Perm. PressIReg. Penn. Press&g. Perm. Press/Reg.
-
Page 10: Caring For Your Dryer
Caring For Your Dryer In This Section MainSay ..--...- Dryers require regular maintenance. Follow the suggestions below to maintain your dryer properly. Maintenance-every Cleaning the lint screen The lint screen is located inside the dryer drum, on the back wall. Clean tt before eacJ’t load A screen blocked by lint can increase drying time. - Page 11 Cleaning the dryer interior Garments which contain unstable dyes, such as denim blue jeans or brightly colored cotton items, may discolor the dryer interior. If you want to remove stains from dryer drum, use powdered laundry detergent. 1. Make a paste with detergent and very warm water.
-
Page 12: Laundry Tips
Laundry Tips In This Section Before you dry ..........12 Drying special-care itsms ... -
Page 13: Drying Special-Care Items
Drying special-care Most garments and household textiles label directions when they are available. General drying instructions for some special washables are included in this section. Heat-sensitive fabrics, plastic, rubber, or some stuffed items require drying without heat. Use Air cycle or line dry. See Warning on page 7. Heat-sensltlve If shoes can be machine laundered: fabrics... - Page 14 Wash and dry small items in a mesh bag or pillowcase for convenient Diapers, baby handling. clothes 1. Dry according to manufacturer’s instructions. 2. Remove diapers and cotton knit items while still slightly damp. They will feel softer, shrink less, and be easier to fold. Remove from dryer while still slightly damp.
-
Page 15: Saving Energy
1. Unplug power supply cord or turn off electrical power supply. 2. Clean lint screen. Voltage requirements Model REC3622B operates on 240 or 206 volt household current. Models REP3622B and RGC3622B operate on 120 volt household current. NOTE: Electric dryers using 206 or 120 volts require longer drying times than dryers using 240 volts. - Page 16 Solving laundering Most laundering problems are easily solved. Check the following list for problems you may have and possible causes. If you need additional help, check the “Assistance or Service” section of this book PROBLEM CHECK IF Dryer fabric softeners were used Undiluted washer fabric softener was used...
- Page 17 PROBLEM CHECK IF Items are oven&fed =*ldno Fabric type and quality is suitable for dryiig slow drying There is a large amount of moisture in the load to be dried Cold rinse water ia used Room air tempemture is below 45°F (7%) Dryer is exhausted according to Installation lnstructlons Lint screen is full...
-
Page 18: If You Need Assistance Or Service
If You Need Assistance Or Service 1. Before calling for assistance Is the power cord plugged in? Is lint screen clogged with lint? Is exhaust duct or outside exhaust hood clogged with lint? •l!l - Have you blown a fuse or trfpped the circuit breaker? If you need more help, check the chart below. - Page 19 . . . ment parts tram FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality whenever you need a replacement part for your Ropep appliance. FSP replacement parts will fit right and work...
-
Page 20: Dryer Warranty
E. Repairs to parts or systems caused by unauthorized modifications made to the appliance. This Roper appliance ia warranted by Whirlpool Corpomtion. Under no circumstances shall it be liable under this warranty for incidental or consequential damages and all implied warranties are limited to the same time period stated in the express warranties for Roper Brand Appliances.
