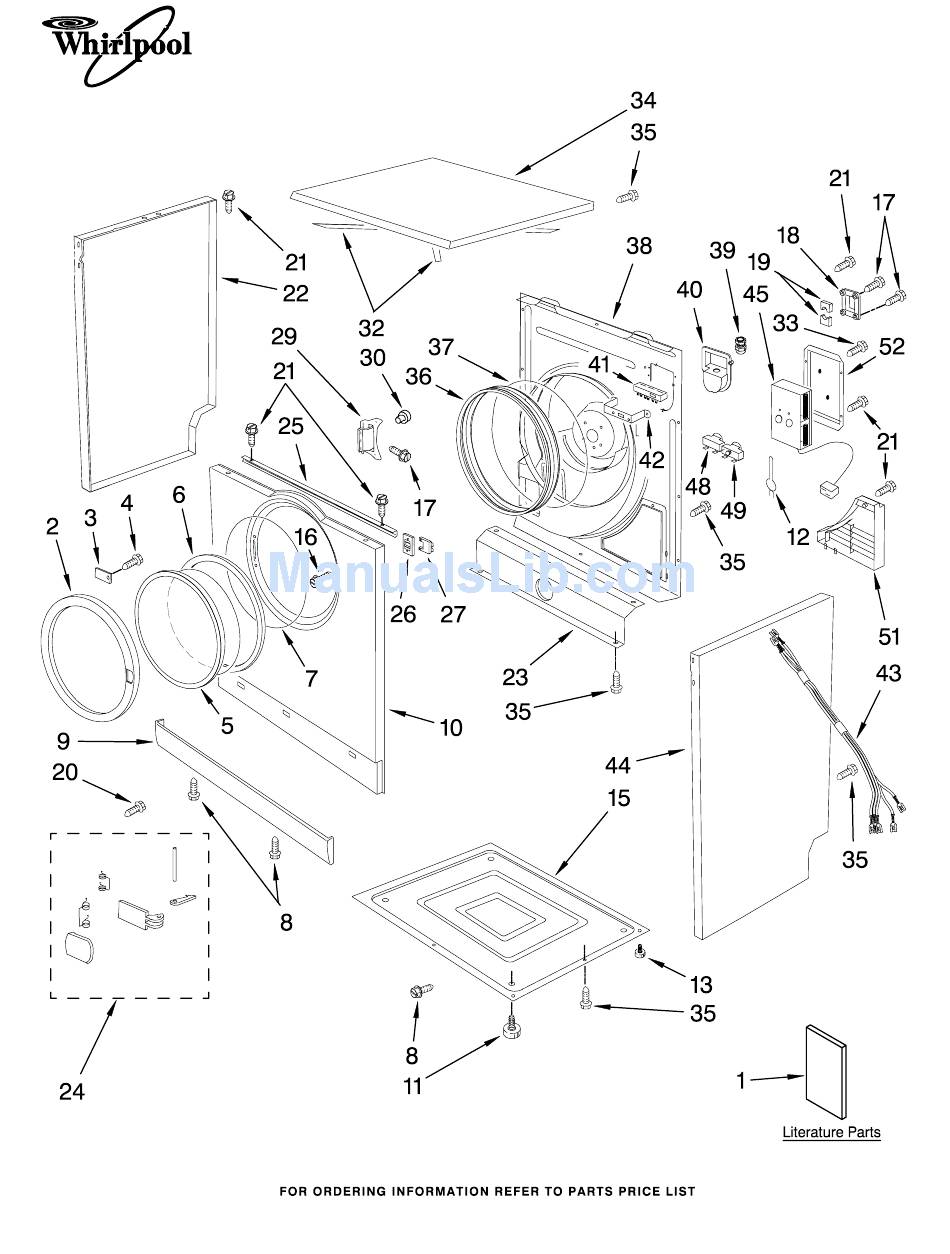

- Page 1 CABINET AND DOOR PARTS COMPACT ELECTRIC DRYER For Model: LEW0050PQ3 (White) 8−06 Litho in U.S.A. (djc) Part No. W10113986...
- Page 2 (Part Not A Serviceable Item) 8182479 Foot, Adjustable 8183097 Spring, Thermostat 8182459 Screw, Cabinet 8182480 Base 8182401 Screw, Door Catch 8183089 Screw, Drum Support For Model: LEW0050PQ3 (White) Illus. Part DESCRIPTION 8182534 Cover, Drum Shaft Support 8182533 Support, Drum Shaft...
-
Page 3: Control Panel Parts
CONTROL PANEL PARTS For Model: LEW0050PQ3 (White) W10113986... - Page 4 CONTROL PANEL PARTS For Model: LEW0050PQ3 (White) Illus. Part DESCRIPTION 8182338 Screw 8182521 Kit, Control Panel (Includes Illus. 4, 5 & 12) 8182576 Switch & Button Assembly (Start) 8182395 Switch & Button Assembly (On/Off) 8183107 Timer & Indicator Light Assembly...
- Page 5 DRUM AND MOTOR PARTS For Model: LEW0050PQ3 (White) W10113986...
- Page 6 8182692 Seal, Front Drum 8182471 Drive Motor (Includes Bracket & Capacitor) Capacitor (Part Not A Serviceable Item) 8182499 Support, Arm (Brush) For Model: LEW0050PQ3 (White) Illus. Part DESCRIPTION 8182494 Spring, Arm 8182501 Pin, Arm 8182498 Arm, Brush Holder 8182500 Brush, Detector...
- Page 7 OPTIONAL PARTS (NOT INCLUDED) W10113986 For Model: LEW0050PQ3 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 8182452 Stack Kit PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut)
