CABINET AND DOOR PARTS
COMPACT
ELECTRIC DRYER
For Model: LEW0050PQ2
(White)
1
Part No. 8180821
8−06 Litho in U.S.A. (djc)
Previous
Page
Next
Page
1
2
3
4
5
Advertisement
Table of Contents
Related Manuals for Whirlpool LEW0050PQ2
Dryer Whirlpool LEW0050PQ Job Aid And Service Manual
24" electric dryer (48 pages)
Dryer Whirlpool LEW0050PQ0 Cabinet Parts
Compact electric dryer cabinet and door parts list (7 pages)
Dryer Whirlpool LEW0050PQ1 Cabinet Parts
Compact electric dryer cabinet and door parts (7 pages)
Dryer Whirlpool LEW0050PQ3 Cabinet Parts
Compact electric dryer cabinet and door parts (7 pages)
Dryer Whirlpool LER4634PT Installation Instructions Manual
29 in. (73.7 cm) electric dryer (24 pages)
Dryer Whirlpool LEQ8000JQ User Instructions
User instructions (16 pages)
Dryer Whirlpool LER3624PQ User Instructions
User instructions (16 pages)
Dryer Whirlpool LER5636PQ Installation Instructions Manual
29 in.(73.7cm) electric dryer (24 pages)
Dryer Whirlpool LEV4634JQ Installation Instructions Manual
Installation instructions (9 pages)
Dryer Whirlpool LE3000XM Use And Care Manual
Automatic dryers (8 pages)
Dryer Whirlpool LE3000XK Use And Care Manual
Whirlpool corporation dryer use & care guide le3000xk, lg3001xk (8 pages)
Dryer Whirlpool LE2OOOXS Use And Care Manual
Automatic dryers (12 pages)
Dryer Whirlpool LE3000XP Use & Care Manual
Automatic dryers (12 pages)
Dryer Whirlpool LE3000XS Use And Care Manual
Automatic dryers (13 pages)
Dryer Whirlpool LE3005XP Use & Care Manual
Automatic dryers (12 pages)
Dryer Whirlpool LE3300XP Use & Care Manual
Estate series automatic dryers (12 pages)
Summary of Contents for Whirlpool LEW0050PQ2
Page 1

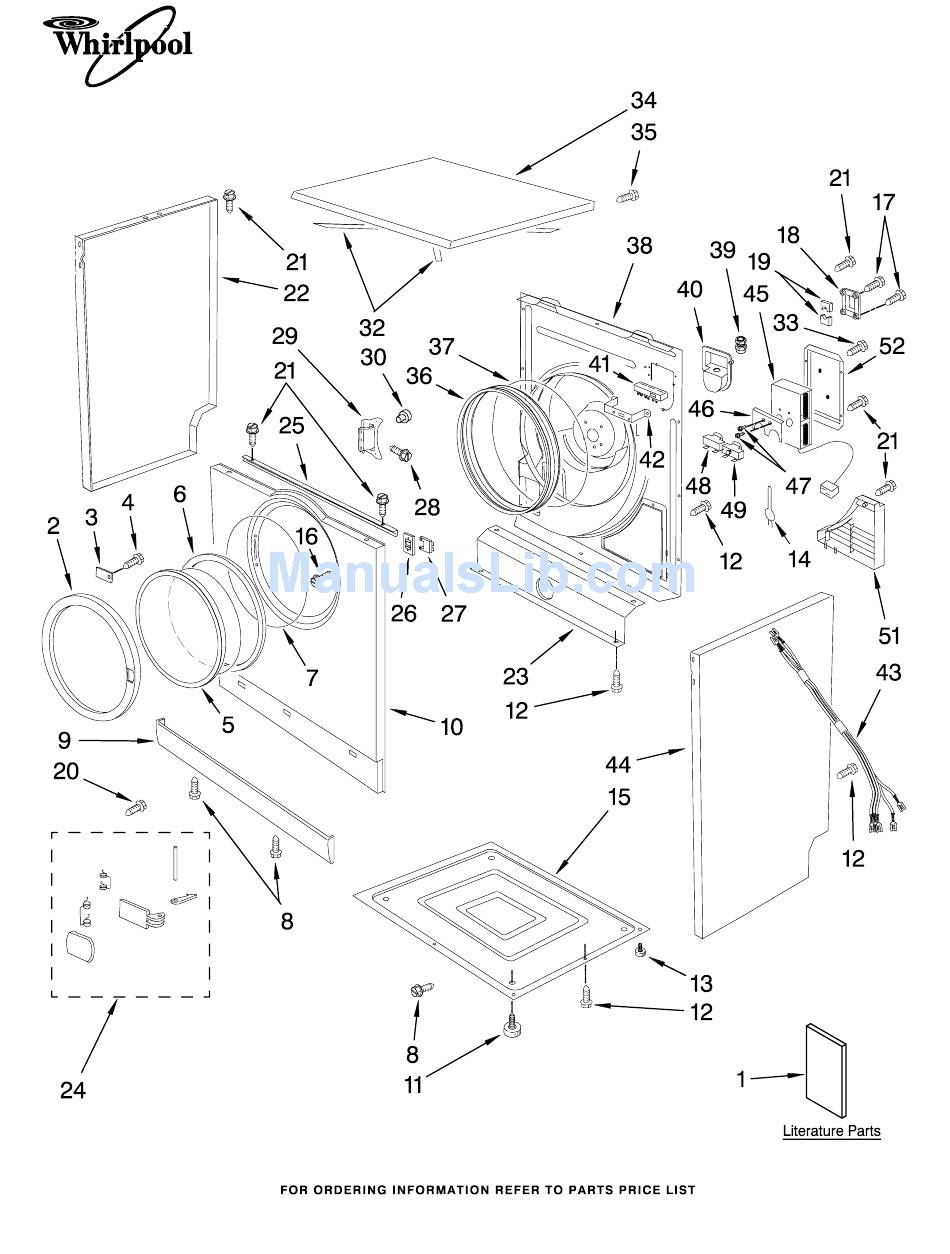

CABINET AND DOOR PARTS COMPACT ELECTRIC DRYER For Model: LEW0050PQ2 (White) Part No. 8180821 8−06 Litho in U.S.A. (djc)
Page 2
8182338 Screw 8182459 Screw, Cabinet 8183097 Spring, Thermostat 8182480 Base 8182401 Screw, Door Catch 8182490 Screw, Drum Support 8182534 Cover, Drum Shaft Support For Model: LEW0050PQ2 (White) Illus. Part DESCRIPTION 8182533 Support, Drum Shaft 8182412 Screw, Door Handle 8182323 Screw...
Page 3: Control Panel Parts
CONTROL PANEL PARTS For Model: LEW0050PQ2 (White) 8180821...
Page 4
CONTROL PANEL PARTS For Model: LEW0050PQ2 (White) Illus. Part DESCRIPTION 8182338 Screw 8182521 Kit, Control Panel (Includes Items 4, 5 & 12) 8182576 Switch & Button Assembly (Start) 280112 Switch & Button Assembly (On/Off) 8183107 Timer & Indicator Light Assembly...
Page 5
DRUM AND MOTOR PARTS For Model: LEW0050PQ2 (White) 8180821...
Page 6
8182631 Housing, Outer 8182492 Insert Pad, Drum Seal 8182692 Seal, Front Drum 8182471 Drive Motor (Includes Bracket & Capacitor) Capacitor (Not Serviced) For Model: LEW0050PQ2 (White) Illus. Part DESCRIPTION 8182499 Support, Arm (Brush) 8182494 Spring, Arm 8182501 Pin, Arm 8182498 Arm,...
Page 7
OPTIONAL PARTS(NOT INCLUDED) 8180821 For Model: LEW0050PQ2 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 8182452 Stack Kit PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut)
×
