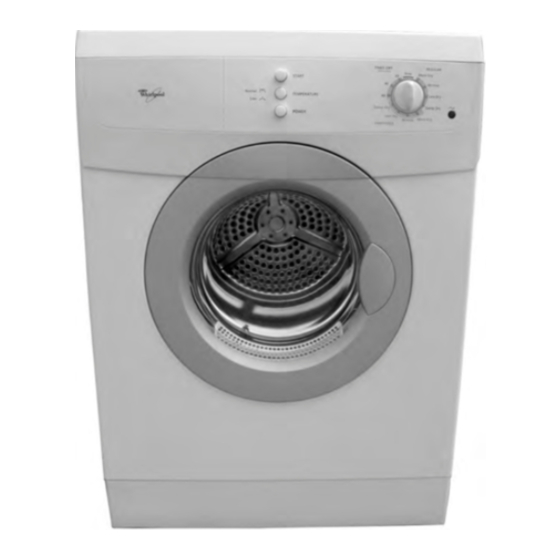

Whirlpool LEW0050PQ1 Cabinet Parts

Compact electric dryer cabinet and door parts
Hide thumbs


Advertisement

CABINET AND DOOR PARTS
COMPACT
ELECTRIC DRYER
For Model: LEW0050PQ1
(White)
4−05 Litho in U.S.A. (djc)
Part No. 8180552
1

Advertisement

Table of Contents
loading

  Related Manuals for Whirlpool LEW0050PQ1

  Summary of Contents for Whirlpool LEW0050PQ1

  • Page 1 CABINET AND DOOR PARTS COMPACT ELECTRIC DRYER For Model: LEW0050PQ1 (White) 4−05 Litho in U.S.A. (djc) Part No. 8180552...
  • Page 2 (Part Not A Serviceable Item) 8182479 Foot, Adjustable 8182573 Screw 8182459 Screw, Cabinet 8182480 Base 8182401 Screw, Door Catch 8182490 Screw, Drum Support For Model: LEW0050PQ1 (White) Illus. Part DESCRIPTION 8182534 Cover, Drum Shaft Support 8182533 Support, Drum Shaft 8182412 Screw,...
  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Model: LEW0050PQ1 (White) 8180552...
  • Page 4 CONTROL PANEL PARTS For Model: LEW0050PQ1 (White) Illus. Part DESCRIPTION 8182573 Screw 280109 Kit, Control Panel (Includes Illus. 4, 5 & 12) 280110 Switch & Button Assembly (Start) 280112 Switch & Button Assembly (On/Off) 8182522 Timer & Indicator Light Assembly...
  • Page 5 DRUM AND MOTOR PARTS For Model: LEW0050PQ1 (White) 8180552...
  • Page 6 8182487 Seal, Front Drum 8182471 Drive Motor (Includes Bracket & Capacitor) Capacitor (Part Not A Serviceable Item) 8182499 Support, Arm (Brush) For Model: LEW0050PQ1 (White) Illus. Part DESCRIPTION 8182494 Spring, Arm 8182501 Pin, Arm 8182498 Arm, Brush Holder 8182500 Brush, Detector...
