Whirlpool LEW0050PQ0 Cabinet Parts
Whirlpool LEW0050PQ0 Cabinet Parts

Whirlpool LEW0050PQ0 Cabinet Parts

Compact electric dryer cabinet and door parts list

Advertisement

Quick Links

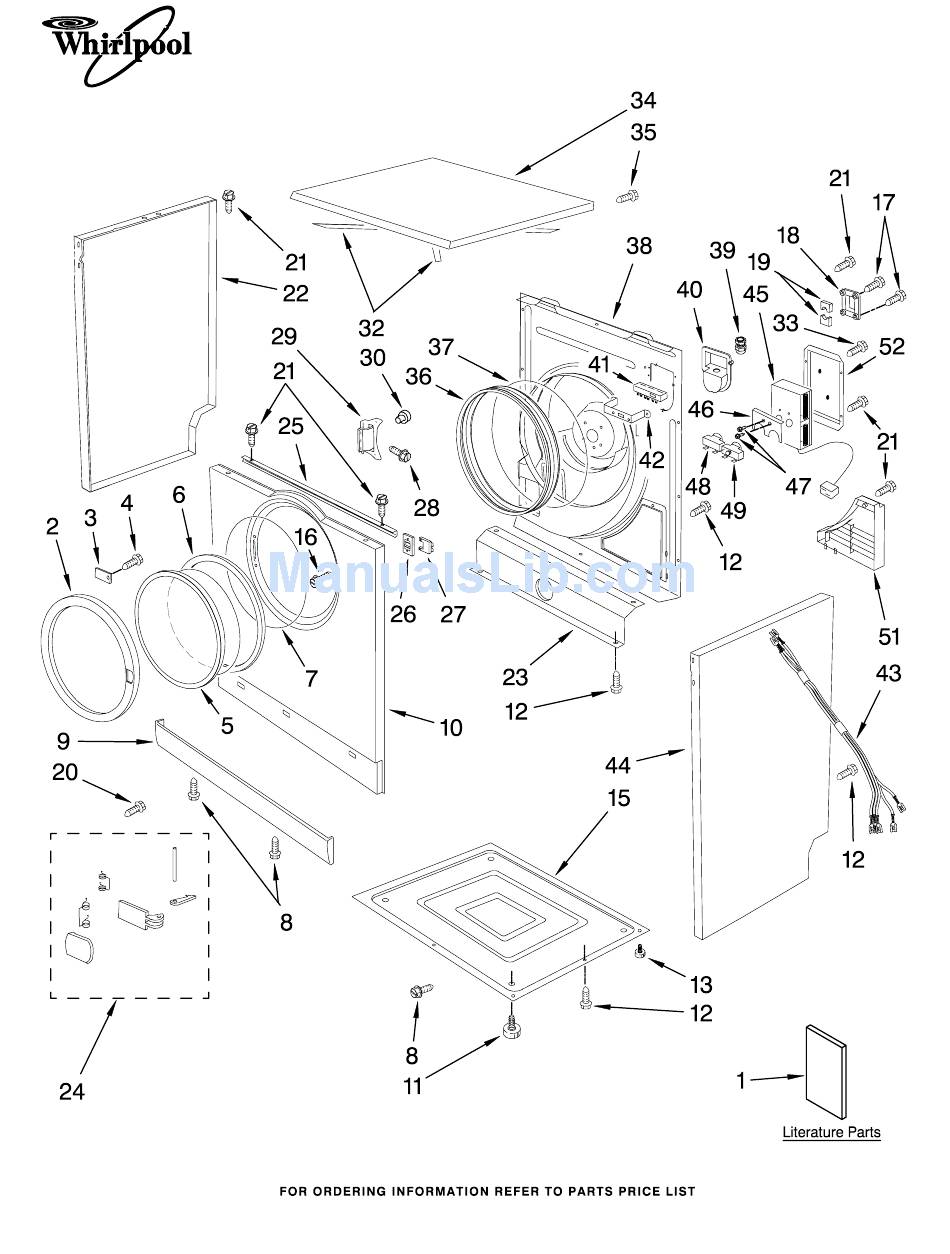

CABINET AND DOOR PARTS
COMPACT
ELECTRIC DRYER
For Model: LEW0050PQ0
(White)
1
Part No. 8180594
4−05 Litho in U.S.A. (rcg)

Advertisement

loading
Need help?

Need help?

Do you have a question about the LEW0050PQ0 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Whirlpool LEW0050PQ0

  • Page 1 CABINET AND DOOR PARTS COMPACT ELECTRIC DRYER For Model: LEW0050PQ0 (White) Part No. 8180594 4−05 Litho in U.S.A. (rcg)
  • Page 2 (Part Not A Serviceable Item) 8182479 Foot, Adjustable 8182573 Screw 8182459 Screw, Cabinet 8182480 Base 8182401 Screw, Door Catch 8182490 Screw, Drum Support For Model: LEW0050PQ0 (White) Illus. Part DESCRIPTION 8182534 Cover, Drum Shaft Support 8182533 Support, Drum Shaft 8182412 Screw,...
  • Page 3: Control Panel Parts

    CONTROL PANEL PARTS For Model: LEW0050PQ0 (White) 8180594...
  • Page 4 CONTROL PANEL PARTS For Model: LEW0050PQ0 (White) Illus. Part DESCRIPTION 8182573 Screw 280109 Kit, Control Panel (Includes Illus. 4, 5 & 12) 280110 Switch & Button Assembly (Start) 280112 Switch & Button Assembly (On/Off) 8182522 Timer & Indicator Light Assembly...
  • Page 5 DRUM AND MOTOR PARTS For Model: LEW0050PQ0 (White) 8180594...
  • Page 6 8182492 Insert Pad, Drum Seal 8182487 Seal, Front Drum 8182471 Drive Motor (Includes Bracket & Capacitor) Capacitor (Part Not A Serviceable Item) For Model: LEW0050PQ0 (White) Illus. Part DESCRIPTION 8182499 Support, Arm (Brush) 8182494 Spring, Arm 8182501 Pin, Arm 8182498 Arm,...
  • Page 7 OPTIONAL PARTS(NOT INCLUDED) 8180594 For Model: LEW0050PQ0 (White) Illus. Part DESCRIPTION ACCESSORY PARTS 8182452 Stack Kit PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350938 Primer, Gray 350930 White PAINT, BULK (1 qt.) 799344 White (Uncut)
