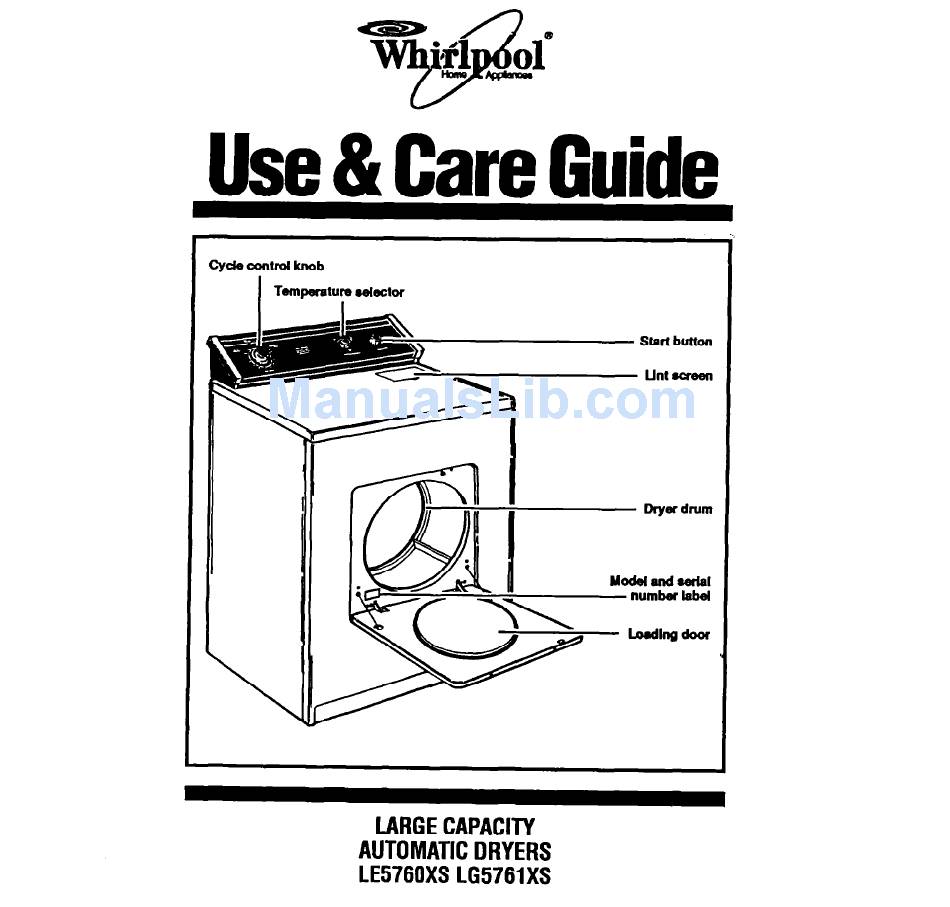

- Page 1 Use & Care Guide Start button Unt screen LARGECAPACITY AUTOMATICDRYERS LE5760XS LG5761XS...
-
Page 2: Table Of Contents
You should wipe out the dryer drum with a damp doth before using to remove dust from storing or shipping. Thank you for buying a Whirlpool appliance. Please complete and mail the Owner Registration Card provided with this product. Then complete the form below. -
Page 3: Important Safety Lnatructlons
Important Safety Instructions To reduce the rlsk of fire, electrkal sho& Injury to persons when uslng your dryer, follow bask precautkns, Read all lnstructkns before uslng the dryer. NEVER dry items cleaned, washed, spotted soaked in or with wax, paint, gasoline or flammable flubs in the dryer. -
Page 4: Starting Your Dryer
Operating Instructions Starting your dryer Be sure to refer to the chart below and the Dryer Guide for proper sorting, bading and control setting information before starting your dryer. NOTE: Do not overdry. Overdrying can cause shrinkage, static ding, and damage mrne fabrics. - Page 5 1. !Mect a cycle by turning the Cycle Control Knob either way. Stop when the indicator on the knob’s outer ring points to the cycle and setting you want. See pages 6-7 for further cycle information. 2. Set the Temperature Selector on the desired temperature setting.
-
Page 6: The Automatic Cycles
Operating instructions Continued The automatic cycles The automatic cycles albw you to select the degree of dryness you prefer for the clothes being dried. The automatic DRY-MISEFPcontrol is a thermostat that senses the dryer air temperature. The dryer automati- cally shuts off when the selected dryness is reached. -
Page 7: Timed Drying
TIMED DRYING Use the TIMED DRYING cycle for any bad you want to dry by time. This cycle is designed for small bads, large bulky items or items to he fluffed or dusted using the Fluff Air temperature setting. Turn the Cycle Control Knob to the number of minutes you want from 10 to 60. -
Page 8: Caring For Your Dryer
Caring For Your Dryer Product and Fabric Damage Hazard Do not run the dryer wtth the lint scrB8n kose, damaged, blocked or mlsslng. Dolng so can cau~ overheatlng and damage to both the dryer and fabrics. Cleaning the lint screen The lint screen is located under a lid on top of the dryer. -
Page 9: Cleaning The Dryer
Gleaning me aryer ElectrIcal Shock and Personal Injury Hazard Turn off the electrical power before cleaning the Interbr. Make sure the dryer Is cool. Failure to do so could result In elect&al shock or Injury. Fire Hazard Use non-flammable cleaner. Failure to do so could result In an expbsbn. -
Page 10: Lint Removal
Caring For Your Dryer Contlnued Ebotrk with back panel ranoved lanker Gas dryer with bwer front access panel removed Lint removal Lint can gather inside the dryer and be a fuel for fire, It is recommended the lint be removed every 2 to 3 years, or more often, depending on dryer usage. - Page 11 Renlove~8 lfyowchywbgasandhasafullfront before opedng top panesranoveffontpm3lasfolkurs: 1. Unplug the power supply cord or turn off the electrical power. 2. Cpen lint screen lid. Remove two screws in lint screen area. 3. Cpen top by pulling forward and up at each front corner (see view A). Rest raised top against wall behind dryer (top is hinged at rear).
- Page 12 United States. To locate the authorized Whirlpool service company in your area, call our Consumer Assistance Center telephone number (see Step 2) or look in your telephone directory Yellow Pages...
- Page 13 If you need FSPB replacement Parts*- FSP is a registered trademark of Whirlpool Corporation for quality parts. Look for this symbol of quality when- ever you need a replacement part for your Whirlpool appliance. FSP replace- ment parts will fit right and work right,...
- Page 14 Notes...
- Page 15 Notes...
-
Page 16: Warranty
Alter checking “Service and Assistance,’ additional help can be found by calling our Consumer Assistance Center telephone number, 1-600-253-1301, from anywhere in the U.S. @ Registered Trademark / SM Service Mark of Whirlpool Corporation Part No. 3395415 01992 Whirlpool Corporation DR006 service company.
