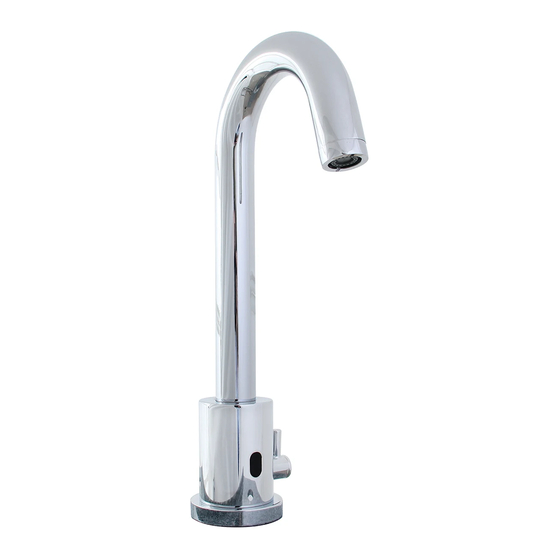

Speakman SF-9102 Instructions

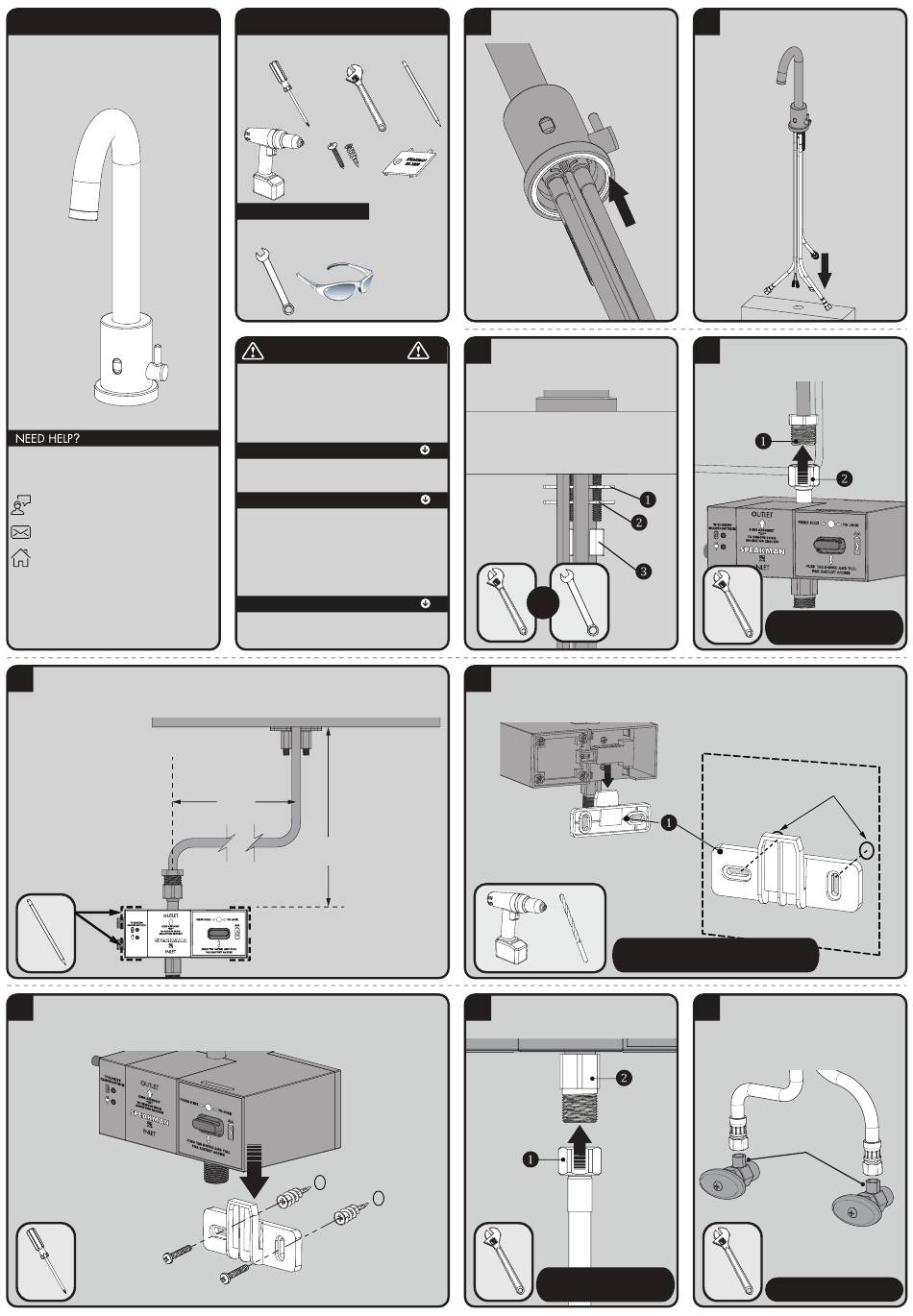

INSTRUCTIONS FOR MODELS
SF-9102
SF-9202
For additional assistance or service please contact:
SPEAKMAN
®
800-537-2107
customerservice@speakman.com
www.speakman.com
92-SF-9102-02
5
Place the Solenoid Assembly against the desired mounting surface while ensuring adequate clearance for
servicing of all connections. If using the optional A/C Adapter, consider the distance to the nearest electrical
outlet. Solenoid Assembly should be mounted so the inlet and outlet ports are aligned vertically. Mark location
of Solenoid Assembly on the mounting surface using a pencil.
7
After securing the Bracket to the mounting surface, align and slide Solenoid Assembly over Mounting Bracket.
TOOLS AND SUPPLIES
Phillips Adjustable
Screwdriver Wrench
Drill Mounting
Hardware
(not included)
HELPFUL TOOLS & SUPPLIES:
3/8" Safety
Wrench Glasses
IMPORTANT
• Do not over-tighten any connections or damage
may occur.
• Be sure to read instructions thoroughly before
beginning installation.
• This faucet has an operating range of 20-80 psi.
SAFETY TIPS
Cover your drain to prevent loss of parts. Be sure to
wear eye protection while cutting pipe.
MAINTENANCE
Your new Speakman Product is designed for years of
trouble-free performance. Keep it looking new by
cleaning it periodically with a soft cloth. The use of harsh
chemicals and abrasives may damage the finish and
void the product warranty. Please be sure to only use
approved cleaners. Please contact Speakman for any
clarification of acceptable cleaners.
WARRANTY
Warranty information can be found at:
www.speakman.com
10-7/8"
(275mm)
MAX
LEFT OR RIGHT
OF CENTER
9-7/16"
(240mm)
MAX
1
Verify that the Rubber Gasket is in position and
aligned to the base of the Faucet.
Pencil
Aerator
Wrench
(included)
3
From below, install Rubber Washer (1), Metal
Washer (2), and secure with Mounting Nuts (3).
Align Faucet to desired position and wrench
tighten Mounting Nuts (3).
OR
6
Remove Mounting Bracket (1) from Solenoid Assembly. Using the previously marked location on mounting
surface, align Mounting Bracket (1) horizontally to approximate position and mark the mounting locations with a
pencil. If mounting on drywall and not to stud, use the appropriate anchors and fasteners for application.
Recommend screw in easy anchor or equal for drywall.
8
Assemble Solenoid "INLET" Supply Hose (1) to
the "INLET" connection (2) of Solenoid. Wrench
tighten.
DRY CONNECTION ONLY.
DO NOT USE ANY SEALANT
ON THIS CONNECTION
2
Place Hose and Sensor Wire carefully, one at a
time, thru hole in mounting surface. Lower Faucet
into position.
4
Assemble the Solenoid "OUTLET" Hose of the
Faucet (1) to the "OUTLET" connection (2) of
Solenoid. Wrench tighten.
DRY CONNECTION ONLY.
DO NOT USE ANY SEALANT
ON THIS CONNECTION
IMPORTANT NOTE
Verify that all hoses are free from bends or kinks.
9
Ensure the water supplies are turned off. Make
connections with the Hot and Cold hoses of the
faucet to water supplies. The inlet threads of the
faucet are 9/16"-24 UNF and will accept a
3/8" Compression Fitting. Wrench Tighten.
Accepts a 3/8"
Compression
Fitting
SUPPLY STOPS NOT INCLUDED
