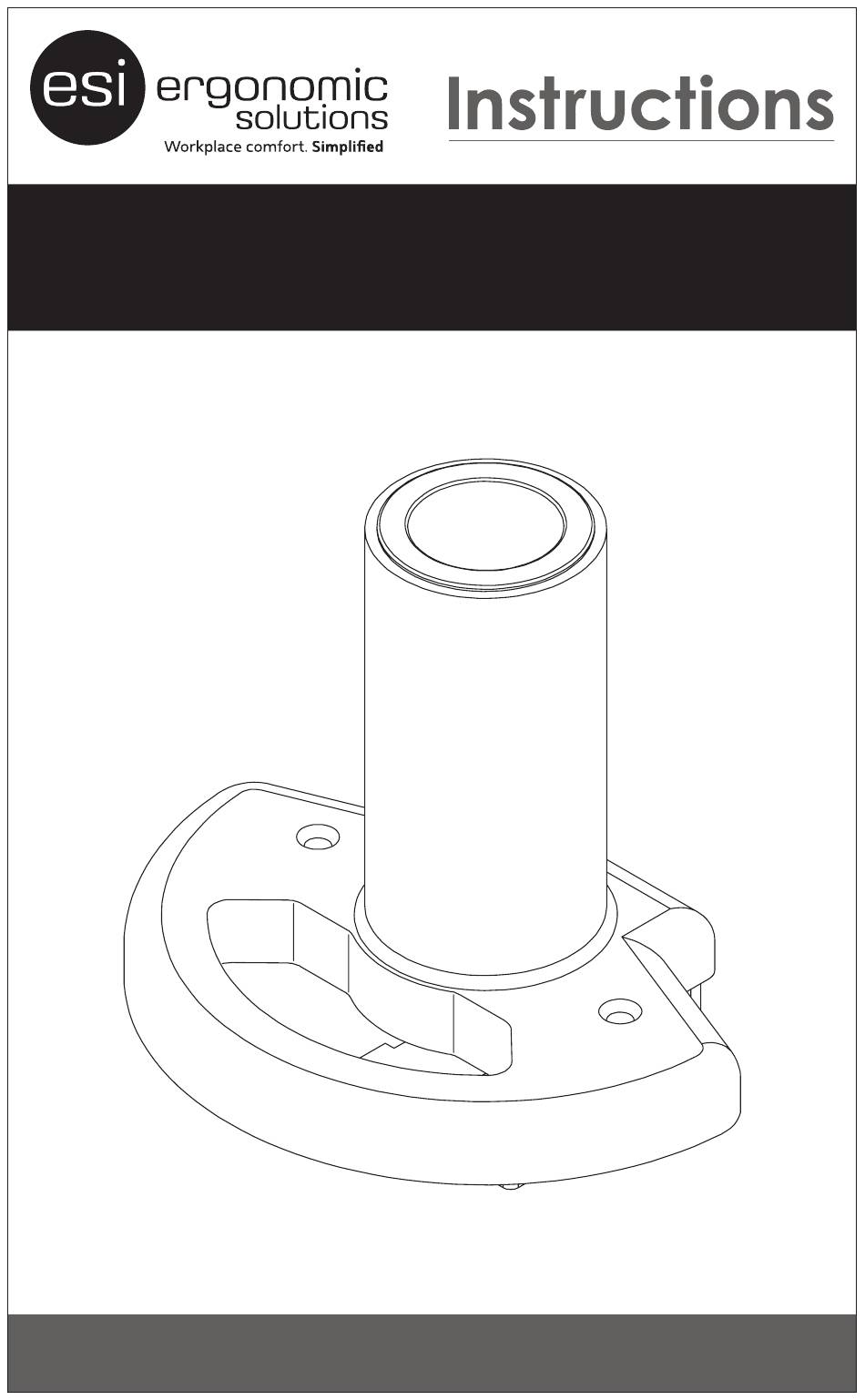

- Page 1 E-SMT MONITOR ARM ADAPTER FOR ALLSTEEL STRIDE Model E-SMT-SLV ® E-SMT Rev A 2/17 ASSEMBLY/ADJUSTMENT...
- Page 2 Stride benching systems. After the E-SMT ® installation is complete, follow the instructions that came with the Edge or Evolve system. The E-SMT can work with the EDGE single monitor arm and the EVOLVE single, dual or triple configurations. PARTS AND TOOLS PROVIDED...
- Page 3 E-SMT MONITOR ARM ADAPTER Clamp Base Assembly to Table 1. Press the base plate to the underside of the EDGE-SMT mount. 2. Adhere the clamp pad to the bottom of the grommet mount plate. 3. Position the base assembly on the table edge.
- Page 4 800.833.3746 esiergo.com © 2017 ESI Ergonomic Solutions. All rights reserved. E-SMT Rev A 2/17...
