CommScope FOSC-ACC-B-TRAY-12-RBN Installation Instruction

3-13/16"
A/B Ribbon Tray
Fiber Optic Splice Closure
Trays: A/B Ribbon Size
I N S T A L L A T I O N
1.0 General Product Information
Important: Read and follow all safety precautions and warnings documented in
the appropriate closure installation instructions.
The FOSC A & B Closure ribbon splice tray is designed for use in CommScope'
FOSC 400 A, FOSC 400 B, FOSC 450 A, FOSC 450 BS, FOSC 450 B and Air FOSC and
FTerm AF
closures and related products.

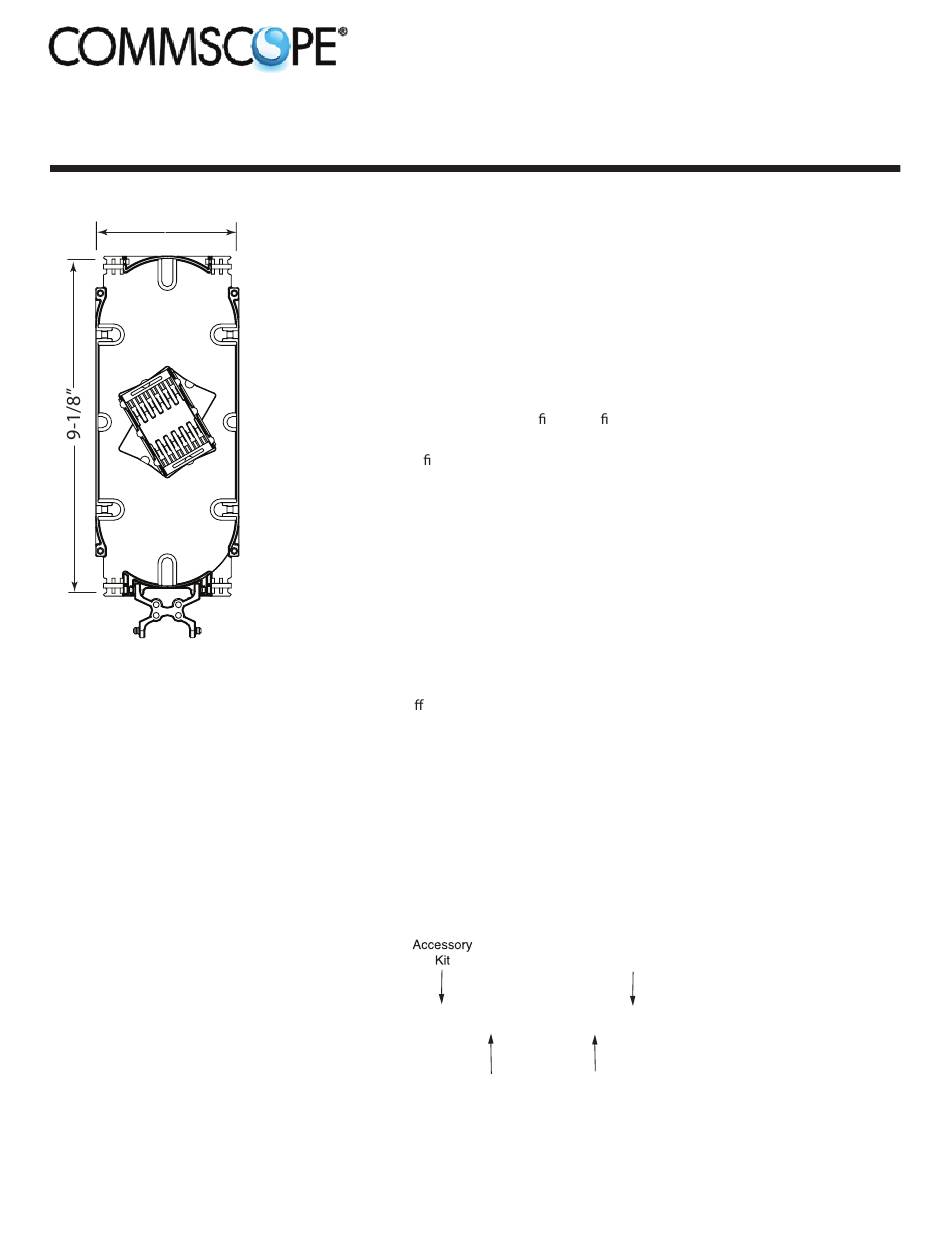

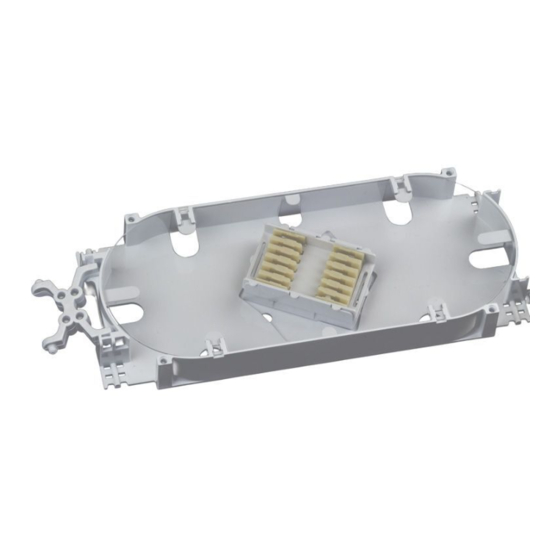

The trays are typically equipped with two splice modules attached to a stack module to
accommodate 144 mass fusion bers (12 ber ribbon x 12 splices). To accommodate
ribbon slack storage, A and B ribbon trays are twice the height of the standard
CommScope ber organizer trays, thereby occupying two standard tray positions in a
closure.
2.0 Kit Contents
The kit contents may vary depending on version purchased.
• Splice tray with cover
• 2 splice modules and module holder
• Spiral tubing
• Ribbon holders
. Loose bu er tube wrap
. Tie wraps
3.0 Tray Ordering Information
3.1 Description Key
FOSC ACC A/B TRAY 12 RBN
Fits A and B
Size Closures
1
I N S T R U C T I O N
Tray Style:
Ribbon
Mass Fusion
Splice Capacity: 12
