Summary of Contents for Whirlpool ACU124XD0

  • Page 1: Table Of Contents

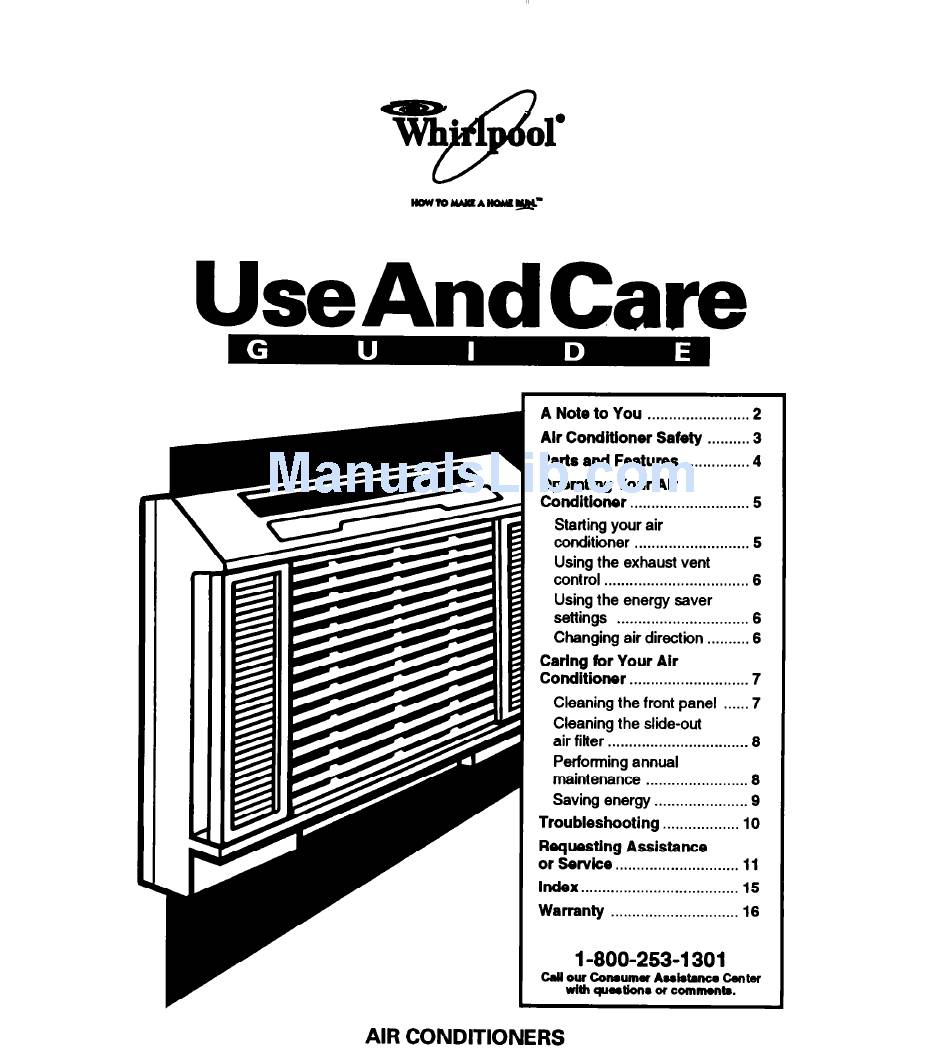

    -. wh nawTouua*naur~- UseAndCare AIR CONDITIONERS 01’ A Note to You ... 2 Alr Conditioner Safety ..3 Parts and Features ..4 Operating Your Air Conditioner ... 5 Starting your air conditioner Using the exhaust vent control ... Using the energy saver settings Changing air direction ...
  • Page 2: A Note To You

    Keep this book and the sales slip together Our Consumer Assistance number is toll-free 24 hours appliance. Whirlpool Air Conditioners Registration Card provided with your information. Model Number Serial Number Purchase Date Dealer Name Dealer Address...
  • Page 3: Air Conditioner

    Air Conditioner Your safety is important This guide contains statements under warning symbols. Please pay special attention to these symbofs and follow any instructions given. Here is a brief explana- tion of the use of the warning symbol. IMPORTANT SAFElY reduce the risk of fire, electrical shock, or injury when using your air conditioner, Read ail instructions...
  • Page 4: Parts And Features

    Parts and Features This section contains captioned illustrations with where all parts and features are located and what they kd information on specifii parts or features quickly, page references are included. Control (PP. 5,6) Adjustable direction (P. 5) of your appliance. Use them to become familiar like.
  • Page 5: Operating Your Air Conditioner

    Operating Your Air Conditioner To obtain the best possible results from your air conditioner, properly. This section tells you how to set the controls and how to direct the cooled air. Starting your air conditioner 1. Set Exhaust Control to CLOSED for maximum cooling performance.
  • Page 6: Using The Exhaust Vent Control

    Using the exhaust The Exhaust Vent Control draws stale or smoky air from the room or circulates existing room air. To exhaust room air: 1. Set Exhaust Vent Control to OPEN. 2. Set Fan Control to desired setting (ENERGY SAVER or NORMAL FAN). If no coding is desired, set Fan Control to FAN ONLY.
  • Page 7: Caring For Your Air Conditioner

    Caring for Your Air Conditioner Proper care of your air conditioner helps ensure longer life of the unit and lower operating costs. Follow these instructions carefully. Cleaning the front 1. Disconnect power cord from receptacle. 2. Remove the front panel for cleaning. Remove the two screws from the bottom edge of the front panel.
  • Page 8: Cleaning The Slide-Out Air Filter

    Cleaning the slide-out The filter is cleanable. A clean filter helps remove dust, lint, and other particles from air. Check every two weeks to see if filter needs cleaning. 1. Remove filter by sliding it up and out the top of the front panel. 2.
  • Page 9: Saving Energy

    4. Wrap the motor, electrical control box, and the compressor terminal box in plastic film to make sure no water or other liquid gets inside. Water or other liquids could damage the insulation and cause serious mechanical problems. 5. Clean and hose out the base, coils, and condensate pans.
  • Page 10: Troubleshooting

    Troubleshooting Listed in the chart below are the most common problems consumers conditioners. Please read through this chart before calling for service. It couM save you the cost of a service call. PROBLEM CHECK THE FOLLOWING Air conditioner Is the unit plugged into a live circuit with proper voltage? won’t run Has the time-delay fuse blown or circuit breaker tripped? Is the Fan Control set to OFF?
  • Page 11: Requesting Assistance

    Whirlpool appliance. To locate FSP replacement parts in your area, refer to Step 2 or call the Whirlpool Consumer Assistance Center number in Step 1. 4. If you are not satisfied...
  • Page 12: Index

    Index This index is alphabetical. Look for the word or phrase you are interested in, then look for the page number. TOPIC AIRFLOW Directing ..........CLEANING Air filter .
  • Page 13: Warranty

    E. Repairs to parts or systems caused by unauthorized appliance. Service under the full warranties must be provided by an authorized Whirlpool service company. WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR INCIDENTAL QUENTlAL DAMAGES.
