Use and Care Manual
UNIT PARTS
PORTABLE
AIR CONDITIONER
For Model: ACP102PS2
2−07 Litho In U.S.A. (dmm)
1
Part No. W10115118
Advertisement
Related Manuals for Whirlpool ACP102PS2
Summary of Contents for Whirlpool ACP102PS2
-
Page 1: Unit Parts

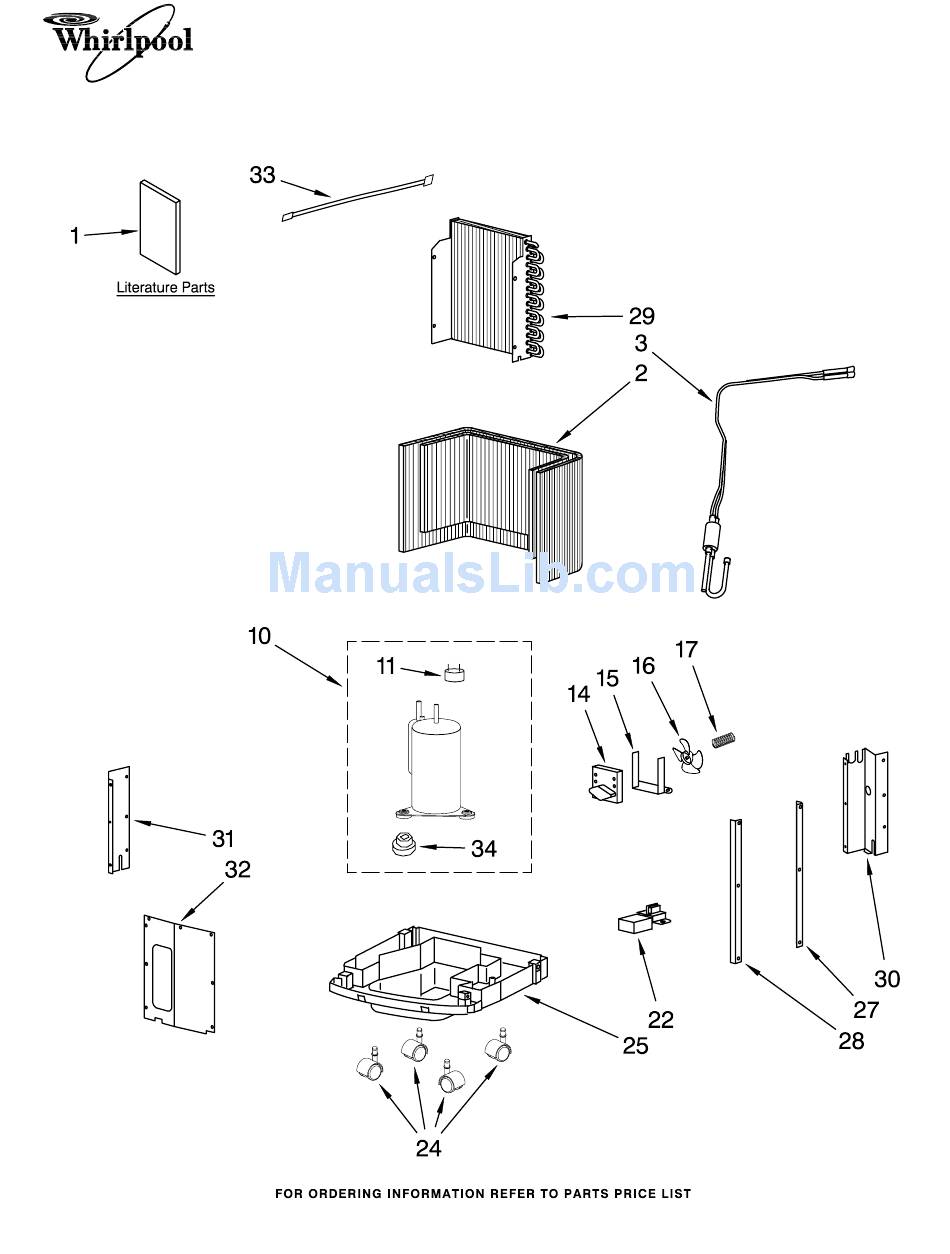

UNIT PARTS PORTABLE AIR CONDITIONER For Model: ACP102PS2 2−07 Litho In U.S.A. (dmm) Part No. W10115118... - Page 2 UNIT PARTS For Model: ACP102PS2 Illus. Part DESCRIPTION Literature Parts 8215247 Guide, Use & Care 8215248 Diagram, Wiring 8215210 Condenser 8215225 Tube Restrictor Assembly 8215197 Compressor, Assembly 8215198 Overload 8215206 Motor, Fan 8215207 Base, Motor 8215208 Fan 8215209 Spring 8215204 Switch, Level...
- Page 3 AIRFLOW AND CONTROL PARTS For Model: ACP102PS2 W10115118...
- Page 4 AIR FLOW AND CONTROL PARTS For Model: ACP102PS2 Illus. Part DESCRIPTION 8215249 PC−Board, Control 8215087 LCD Cover 8215168 Overlay 8215177 Motor, Upper 8215176 Plate, Motor 8215173 Wheel Blower, Upper 8215089 Board, Terminal 8215174 Housing, Air 8215179 Louver Assembly 8215170 Base, Louver...
-
Page 5: Cabinet Parts
CABINET PARTS For Model: ACP102PS2 W10115118... - Page 6 CABINET PARTS For Model: ACP102PS2 Illus. Part DESCRIPTION 8215231 Control, Remote 8215190 Panel, Front 8215212 Panel, Rear 8215229 Connector 8215223 Clip 8215224 Grille, Air 8215185 Connector, Square 8215228 Connector 8215227 Exhaust Tube 8215230 Connector Square 8215222 Filter 8215178 Left Panel...
