Installation Requirements; Tools And Parts; Location Requirements - Whirlpool ACM122XR0 Use And Care Manual

WARNING:
To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow these basic precautions:
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.

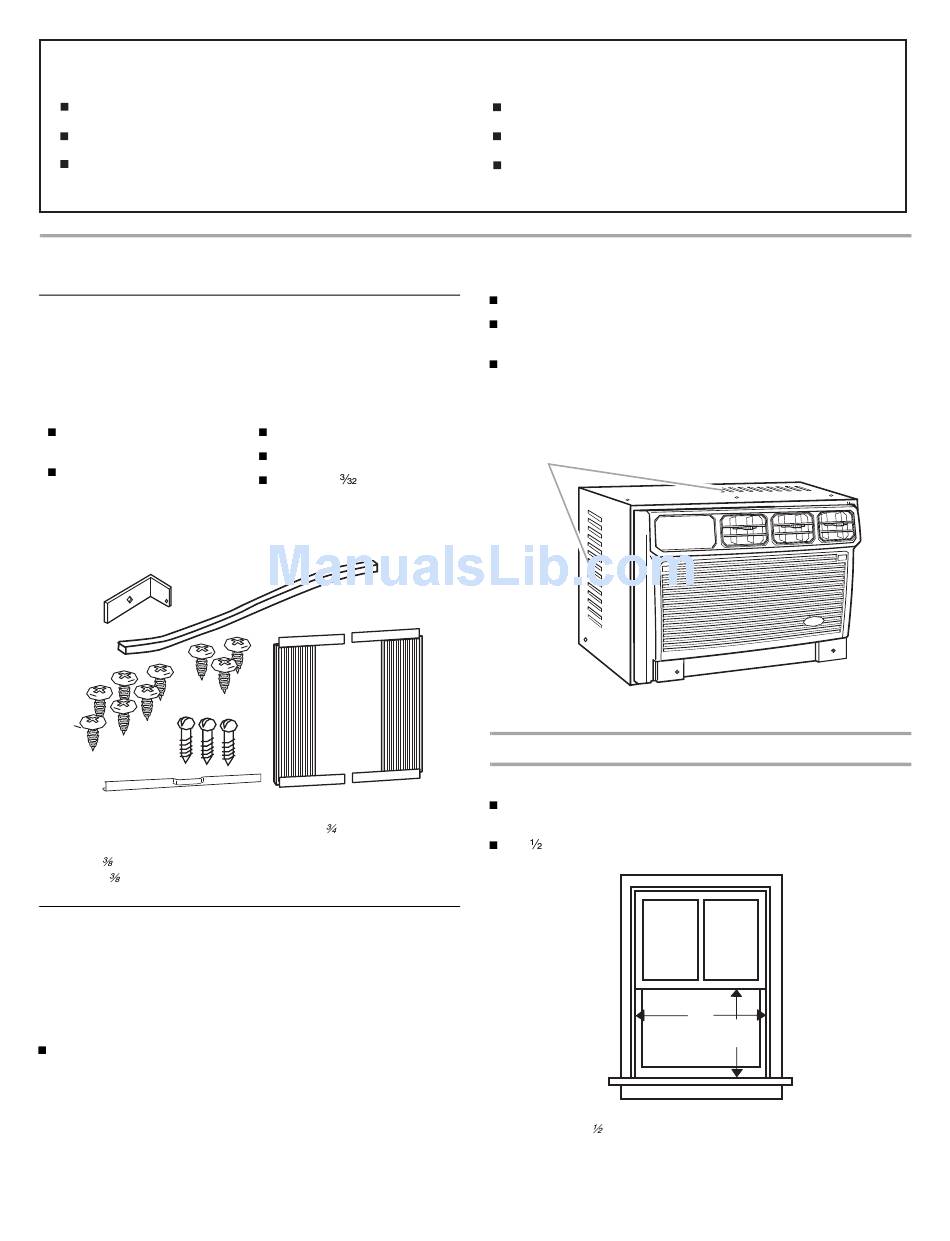

Tools and Parts

Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Tools needed
Flat-blade and Phillips
screwdrivers
Level
Parts supplied
Check that all parts are included in parts package.
A
C
G
A. Window-lock bracket
B. Foam seal
C. #8 x " pan-head screws (6)
D. #10 x " pan-head screws (3)

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.
Check the location where air conditioner will be installed. Proper
installation is your responsibility. Make sure you have everything
necessary for correct installation.
The location should provide:
Grounded electrical outlet within 4 ft (122 cm) of where the
power cord exits the air conditioner.
NOTE: Do not use an extension cord.
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS

INSTALLATION REQUIREMENTS

Scissors
Tape measure
Drill and " or smaller bit
B
D
F
E
E. #8 x " round-head
screws (3)
F. Side curtains (2)
G. Top channel
Do not use an extension cord.
Unplug air conditioner before servicing.
Use two or more people to move and install air conditioner.
Free movement of air in room to be cooled.
A large enough opening for the air conditioner. Installation
parts are supplied for double-hung windows.
Adequate wall support for weight of air conditioner. Air
conditioner weighs 81 lbs (36.7 kg) to 91 lbs (41.28 kg).
NOTE: Cabinet louvers must not be obstructed. Air must be able
to pass freely through the cabinet louvers.
A
A. Cabinet louvers
Window installation
Window opening measurements:
26" (66 cm) minimum to 38" (96.5 cm) maximum opening
width.
15 " (39.4 cm) minimum opening height.
A. 26" (66 cm) minimum, 38" (96.5 cm) maximum
B. 15 " (39.4 cm) minimum
A
B
