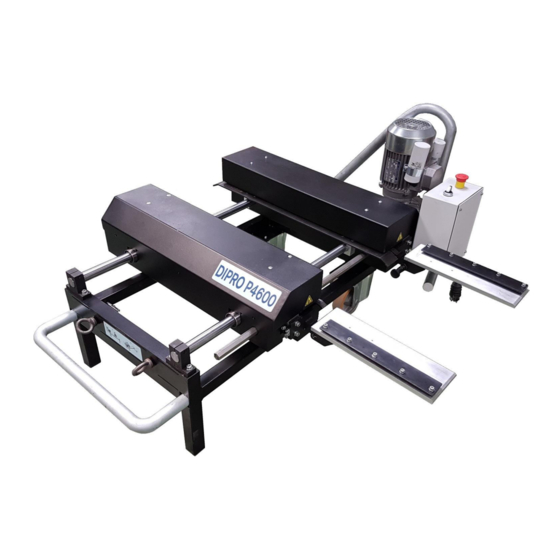

- Page 1 DIPRO-P4600 Standing seam profiling machine Ref 220V: 084746 Ref 110V: 084745...
-
Page 3: Table Of Contents
Table of contents GENERAL INFORMATION ......................5 GENERAL CHARACTERISTICS ....................6 FUNCTIONS ..........................7 A. Type of profile........................... 7 B. Adjustable dimensions ......................7 C. Type of tray ..........................7 D. Inside tray width ........................8 DESCRIPTION ..........................8 A. Overview ..........................8 B. -
Page 5: General Information
Keep this leaflet for future reference. ACKNOWLEDGEMENTS DIMOS would like to thank you for choosing this product and hopes that its use will fully satisfy you. WARRANTY See the DIMOS Terms and Conditions of Sale (www.dimos.fr) -
Page 6: General Characteristics
2. GENERAL CHARACTERISTICS Dipro 4600 0,9 m Length overall (transport) 1,2 m Length overall (use) 1,23 m Width 0,73 m Height 160 kg Weight 0.75 kW Motor power 220V mono (or 110V) Voltage 10 m / min. Profiling speed 75 dB Noise emitted less than Capabilities By default, the DIPRO-4600 profiling machine is factory set for thicknesses from 0.4 mm to 0.8mm. -
Page 7: Functions
3. FUNCTIONS Type of profile Underclock Overclock Adjustable dimensions Be sure to respect the profile dimensions during production. Problems may occur during crimping if the dimensions are not respected. Type of tray The profiles are generally performed in a single operation when, for example, manufacturing Profile No.1 parallel trays. -
Page 8: Inside Tray Width
It is possible to make special profiles with two consecutive passes Inside tray width Inside tray width approximately 78 mm appears when profiling a standard tray. Example: - Width of the sheet metal strip 650 mm (1) - Width at bottom of tray 572 mm (2) 4. -
Page 9: Control Panel
Control panel Forward (with auto hold function) Starting the profiling train Reverse Stop Stops all operating modes of the Profiling machine 1 pressure Stop / Emergency stop Prevents startup if engaged Clockwise Reset rotation... -
Page 10: Getting Ready To Profile
5. GETTING READY TO PROFILE Place of installation The DIPRO P4600 profiling machine can be used both in a workshop and on site. Do not expose your machine to the effects of weather Power The power supply is directly on the 220 V, 50 Hz network as standard single phase. (References 084746) Operation on a 110V network requires the purchase of a specific model. -
Page 11: Please Read Before Use
The sheets must not be scratched or cut. Wearing gloves and safety shoes is required to handle the sheets and trays. 6. Please read before use IT IS FORBIDDEN To profile a sheet with a length of less than 800 mm. ... -
Page 12: Preparing For Profiling
7. PREPARING FOR PROFILING Before use, make sure that the characteristics of the sheet used correspond to the profiling capacity of the machine (see "GENERAL CHARACTERISTICS - DETAILED CHARACTERISTICS" chapter 3). Lower the input guides, using the A4 locking bolts. ... -
Page 13: Profiling
8. PROFILING Start-up ▪ On the control panel check that: - Stop / Emergency stop not initiated ▪ Flip the switch on . The metal sheet will be profiled continuously. A test strip is preferable to check all dimensions of the profile, before starting production. ▪... -
Page 14: Profiling In Two Passes
Profiling in two passes Some trays must be done in two runs. To do this you have to perform the profiling twice: one on each side of the sheet metal. The width of the input sheet guides must be adapted so that only one of the profiling trains forms the sheet. The second train turns freely. -
Page 15: Adjusting The Profiling Machine
ADJUSTING THE PROFILING MACHINE DIMOS machines are all set up in the factory. It is strongly discouraged to change the settings of the profiles. Before changing settings, please contact your supplier. Adjusting underclock and overclock profiles: The under and overclocks must be at the right height for perfect subsequent crimping. -
Page 16: Maintenance
MAINTENANCE General guidelines - Observe the operating instructions of the machine: Always unplug the machine as soon as you leave your workstation. - Do not insert foreign objects into the machine. - Respect the machine’s maintenance schedule. - Regularly check the correct operation of your machine: check the general condition, if there are no broken parts, if the profiling rollers are not dirty, if everything is mounted correctly. -
Page 17: Handling
Handling For all handling, do not forget: To raise the input guides To close and lock the roll-forming banks Wheels The profiling machine is equipped with wheels Use them for short distances, on flat surfaces. Transport It is possible to handle the machine with a forklift or with straps. When using the lifting eyes, you must check that they are tight. -
Page 18: Electric Diagram
ELECTRIC DIAGRAM... -
Page 19: Compliance Statement
COMPLIANCE STATEMENT DISPOSAL The Dipro 4600 does not contain hazardous materials or anything which requires special treatment when it is disposed of.
