Summary of Contents for Westinghouse LTV-20v2
-
Page 2: Important Product Safety Instructions
IMPORTANT PRODUCT SAFETY INSTRUCTIONS Follow and obey all warnings and instructions marked on your product. For your safety, please read all the safety and operating instructions before you operate this product. Keep this user’s manual for future reference. Overloading Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in fire or electronic shock. -
Page 3: Table Of Contents
Table of Contents IMPORTANT PRODUCT SAFETY NTENNA NSTALLATION LCD D LEANING THE ISPLAY ...4 AFETY UIDELINES FCC C OMPLIANCE TATEMENT INSTALLATION...5 1. I NSERT EMOTE ONTROL 2. R ...5 OVERS 3. C ONNECT NTENNA ABLE 4. C ONNECT POWER CABLES 5. -
Page 4: Power Lines
Antenna Installation Safety Outdoor Antenna Grounding If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANS/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. -
Page 5: Safety Guidelines
Safety Guidelines Warning: This device must be operated with the original power supply, part number: ADP-60CF A. CAUTION: The socket-outlet should be installed near the equipment and should be easily accessible. CAUTION: Use a power cable that is properly grounded. Always use the appropriate AC cord that is certified for the individual country. -
Page 6: Installation

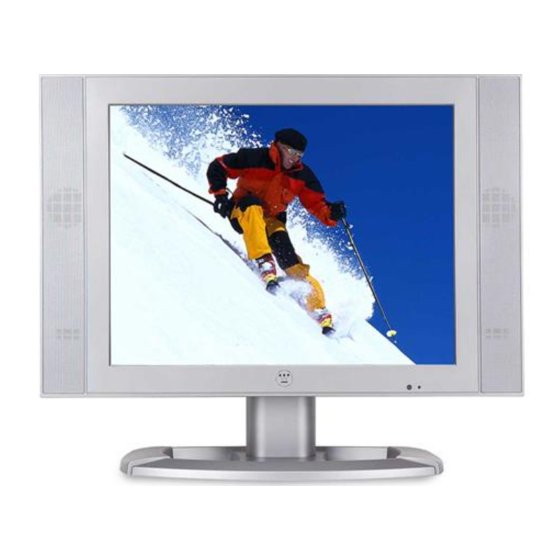

Installation Congratulations on your purchase of a Westinghouse 20” LCD TV display. Relax as you, your friends and family will soon be enjoying movies, broadcasts, and/or popular games on this wonderful direct-view liquid crystal display. Package Contents Your LCD TV package includes: LCD TV Display •... -
Page 7: Connect Antenna, Cable, Video, S-Video, And/Or Ypbpr Cables
3. Connect Antenna, Cable, Video, S-Video, and/or YPbPr Cables Connect video and audio cables from compatible devices to the back panel of the LCD TV. -
Page 8: Connect Power Cables
4. Connect power cables Connect the power cord to the LCD TV and then to a properly grounded AC outlet. 5. Turn Power On Press the power button on the top of the LCD TV display. Or press the power button on the remote control. -
Page 9: Programming Channels
6. Programming Channels 1. Select TV as the input using the TV button (17) on the remote. 2. Push TV/CATV button (14) to select the type of antenna or cable system attached to the TV. 3. Push CH. SCAN (6) to automatically search and remember channels. -
Page 10: Controls & Connections
Controls & Connections This section describes the front panel controls, rear and side connectors, and remote control in more detail. Front View of the Product Use the buttons on the front panel control (or included remote control) to display and adjust the On Screen Display (OSD). -
Page 11: Rear View Of The Product
Rear View of the Product Service port AV-1 A. S-Video Input (black) Connect to VCR or camcorder B. Left (white) and right (red) audio inputs Audio inputs are shared between the video and s-video inputs C. Video Input (yellow) Connect to a VCR or game consoles AV-2 D. -
Page 12: Remote Control
Remote Control The Remote Control should be used within 5 meters of the LCD TV. 1. POWER Switch the power between on & off 2. DISP Display the source & channel information 3. MUTE Switch the sound between on & off 4. -
Page 13: Osd Functions
OSD Functions This section describes each on-screen display (OSD) command. All the function settings for your LCD TV display are controlled either via the remote control or using the top control keys on the front panel. To display the OSD main menu, press the Menu button on the front control keys or the MENU/EXIT key on the remote control. -
Page 14: Source Input: Tv Or Av Or S-Video
Source Input: TV or AV or S-Video Main Picture Menu Function Name Brightness Adjust the Brightness of TV Contrast Adjust the Contrast of TV Sharpness Adjust the Video Sharpness Adjust the Video Hue level Saturation Adjust the Video Saturation level Aspect Ratio Select TV display for 4:3 “normal”... - Page 15 PIP function is enabled. POP function is enabled. Function Name SUB SCREEN Choose sub screen source, If main screen (input) shown is TV, AV or S-VIDEO, then sub screen will have input selection of COMPONENT (YPbPr). If main screen (input) shown is COMPONENT (YPbPr), then sub screen will have input choices of TV, AV or S-VIDEO MODE Select multi screen type: “OFF”...
-
Page 16: Osd Menu
OSD Menu Function Name H-POSITION V-POSITION TRANSPARENCY LANGUAGE DEFAULT Explanation Adjust OSD on horizontal position Adjust OSD on vertical position Adjust OSD on transparency level Choose OSD language: English, Spanish, French, Traditional Chinese Recall factory default setting. When this function is executed, the screen will show the message Figure 4. -
Page 17: Tv Menu
TV Menu Function Name Selection included Stereo, Sap, Mono, Dual INPUT SIGNAL TV Selection are either STD (standard cable), HRC (HRC cable), IRC (IRC cable) or Air (Antenna) AUTO SCAN Channel Auto scan (Right arrow key to execute) SET CHANNEL Channel selection CHANNEL Channel selection to be added or deleted... -
Page 18: Parental Control Menu
Parental Control Menu To access the PARENTAL CONTROL menu (figure 5) enter your password (default is 0000), then press OK key to confirm selection. If the wrong password is entered, then refer to figure 6. Figure 5. Key-In Password Password Edit Menu Function Name PASSWORD EDIT OLD: _ _ _ _... -
Page 19: Tv Rating Menu
TV Rating Menu Set the TV Ratings to block selected TV channels MOVIE Rating Menu Set the Movie Ratings to block selected Movie channels. Function Name TV RATING TV Y: TV Y7: TV G: TV PG: TV 14: TV MA: MOVIE RATING PG 13: NC 17:... -
Page 20: Source Input: Component
Source Input: Component The component input video settings can be adjusted and saved separately from TV, Video and S-Video inputs. Main Picture Menu Function Name Brightness Brightness adjustment Contrast Contrast adjustment Sharpness Adjust the Video Sharpness Adjust the Video Hue level Saturation Adjust the Video Saturation level Aspect Ratio... -
Page 21: Appendix
Appendix This section lists the product specifications and common problems with corresponding solutions. Specifications Panel Type Surface treatment Anti-reflective coating + Anti-glare coating Viewing Angles Input Signal Video Audio Speaker Output Power Voltage Operating Conditions Temperature Humidity Altitude Storage Conditions Temperature Humidity Altitude... -
Page 22: Troubleshooting
Troubleshooting No power • Make sure DC power button is ON (Green LED) Make sure AC power cord is securely connected to the AC socket • • Plug another electrical device (like a radio) to the power outlet to verify that the outlet is supplying the proper voltage Power is ON but no screen image Adjust brightness and contrast...
