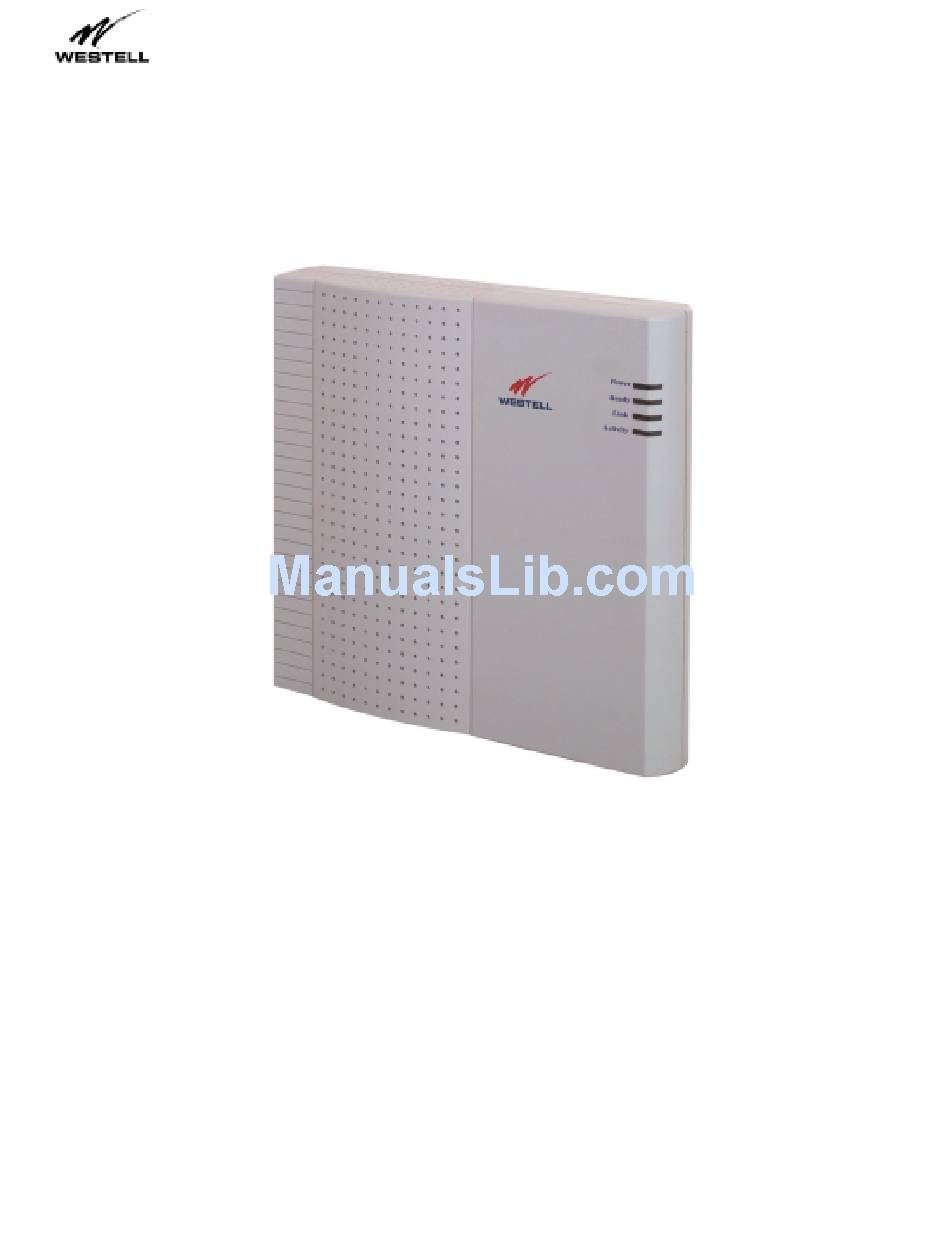

Page 1: Installation Guide
Model # 36R515 Part # 030-300108 Rev. D Revision Date 12/2000 ADSL Modem Installation Guide ADSL Modem Installation Guide... - Page 2 Installation Instructions Westell ADSL Modem 1. Package Inspection and Contents... 2 2. Safety ... 2 3. Installation... 3 4. Product Specifications ... 6 Appendix ... 7 Product Assistance and General Inquiries ... 9 1. Package Inspection and Contents Inspection Upon receipt, thoroughly inspect the unit for damage. If the unit was damaged during transit, report the damage immediately to the Verizon Online Customer Support.
-
Page 3: Installation
3. Installation Before you connect the modem, you must have an available Ethernet card (either 10Base-T or set to run at 10 Megabits per second) installed in your computer. Refer to the Ethernet card manufacturer’s instructions for installing and configuring your Ethernet card. See the Appendix in this guide to make sure you have an Ethernet card installed. - Page 4 Modem Indicator Lights The Modem indicator lights (see picture below) are used to verify the unit’s operation and status. The tables below describe what the lights mean. Connections are located on the side of the ADSL Modem Power Indicator State Description Power ON Steady Green...
- Page 5 Mounting the ADSL Modem on a wall (Optional) To mount the ADSL modem on a wall: Obtain two pan-head screws (one #8 and one #6) and two #4 – #8 wall anchors. (Not provided.) With the ADSL modem held up against the wall where it is to be mounted, mark the upper keyhole slot and screw location.
-
Page 6: Product Specifications
4. Product Specifications IMENSIONS Height – 7.5 in (19 cm) Width – 7.78 in (19.76 cm) Depth – 1.9 in (4.82 cm) EIGHT Approx. 2.30 lbs (1.04 kg) with power supply NVIRONMENTAL Ambient Operating Temperature – +32 to +113°F (0 to +45°C) Relative Humidity –... -
Page 7: Appendix
Appendix Before you can connect the Westell ADSL modem to your computer, your computer must have an IMPORTANT: Ethernet card. The Ethernet card must be: Installed and available Either a 10Base-T (10 Megabits per second) card, or configured to 10 Megabits per second. Follow the instructions below for your operating system to find out if an Ethernet card is installed, available, and set to the correct speed. - Page 8 Your Ethernet card is available Ethernet jack on your computer and find out if it is empty. The jack looks the same as the jack marked ETHERNET on the back of the Westell modem. If your card is a 10Base-T card (10 Megabits per second), or if it is set to 10 Megabits per second, you can install the Westell ADSL modem—see the instructions under “Installation”...
-
Page 9: Product Assistance And General Inquiries
Apple Macintosh An Ethernet card is built into iMac, G3 Power Mac, and G3 PowerBook computers. To activate this card and find out if it is available: Click the icon, then Apple Search for Apple Ethernet NB Click Apple Ethernet NB Restart. - Page 10 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
