Setup Instructions

Spiderlite TD5 3 Light Window Light Kit PLUS
Style Series: 4899

Description

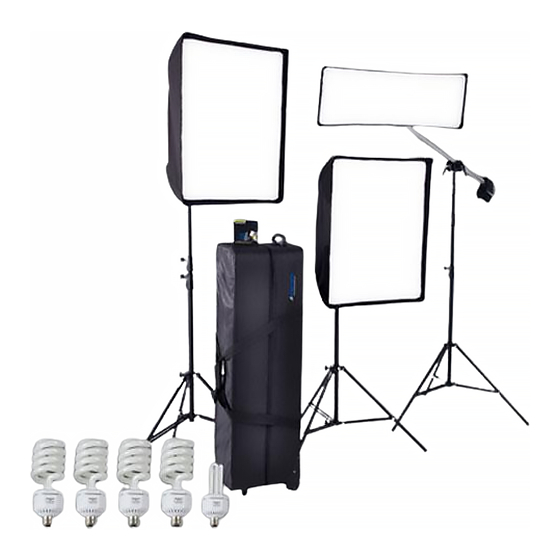

This three light complete studio kit provides a main light, a fill light and a hair light. Create the natural look of
window light using two 24" x 32" Soft Boxes mounted onto two Spiderlite TD5s. Add an accent light or hair light
using the Spiderlite TD3 mounted on a 6' boom arm. Powerful 50-watt fluorescent lamps not only stay cool to the
touch, but provide over 8,000 hours of use. The heavy-duty stands and location carry case complete the kit.
Instructional DVD included featuring Master Photographer James Schmelzer.

Product Contains

[2] Spiderlite TD5s
[2] Tilter Brackets
[1] Spiderlite TD3
[2] 24" x 32" Silver Soft Boxes
[1] 12" x 36" Strip Bank
[1] TD3 Adapter Ring
[1] 6' Boom Arm
[8] 50-watt fluorescent Lamps
[2] 20-watt fluorescent Lamps
[3] 30-watt fluorescent Lamps
[3] 10' Heavy-Duty Light Stand
[1] Deluxe Wheeled Case
[1] Instructional DVD - Volume 2

INSTRUCTIONS

Set up the included light stand(s) and adjust to your required height using the turn knobs located on the
stem of the stand. Secure each knob to lock into place.
Attach the boom arm to one light stand. The boom arm will need adjusted once the light is attached for
proper counterweight distribution.
Questions? Please call 800.886.1689 or email
.
©F.J. Westcott Company
info@fjwestcott.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4899 and is the answer not in the manual?

Questions and answers

Summary of Contents for Westcott 4899

  • Page 1: Setup Instructions

    Page 1 of 2 Setup Instructions Spiderlite TD5 3 Light Window Light Kit PLUS Style Series: 4899 Description This three light complete studio kit provides a main light, a fill light and a hair light. Create the natural look of window light using two 24"...
  • Page 2 Insuring the unit is not plugged in, place your (5) lamps into the (5) sockets located on the Spiderlite TD5. If you are using the (5) pack of Westcott’s new 50-watt Daylight Balanced Fluorescent lamps, the smaller 20-watt lamp included goes into the center socket. This lamp must be inserted first. The (4) remaining 50-watt lamps will go into the (4) outer sockets.
