MASTER
BEDROOM
BEDROOM
KITCHEN
DINING
ROOM
1 INCH
BRANCH
LINES
MODEL RCP-1
RESIDENTIAL
CONTROL
PANEL
ELEVATION
BATH BEDROOM
SECOND FLOOR
BATH DEN
FIRST FLOOR
BEAM
BASEMENT

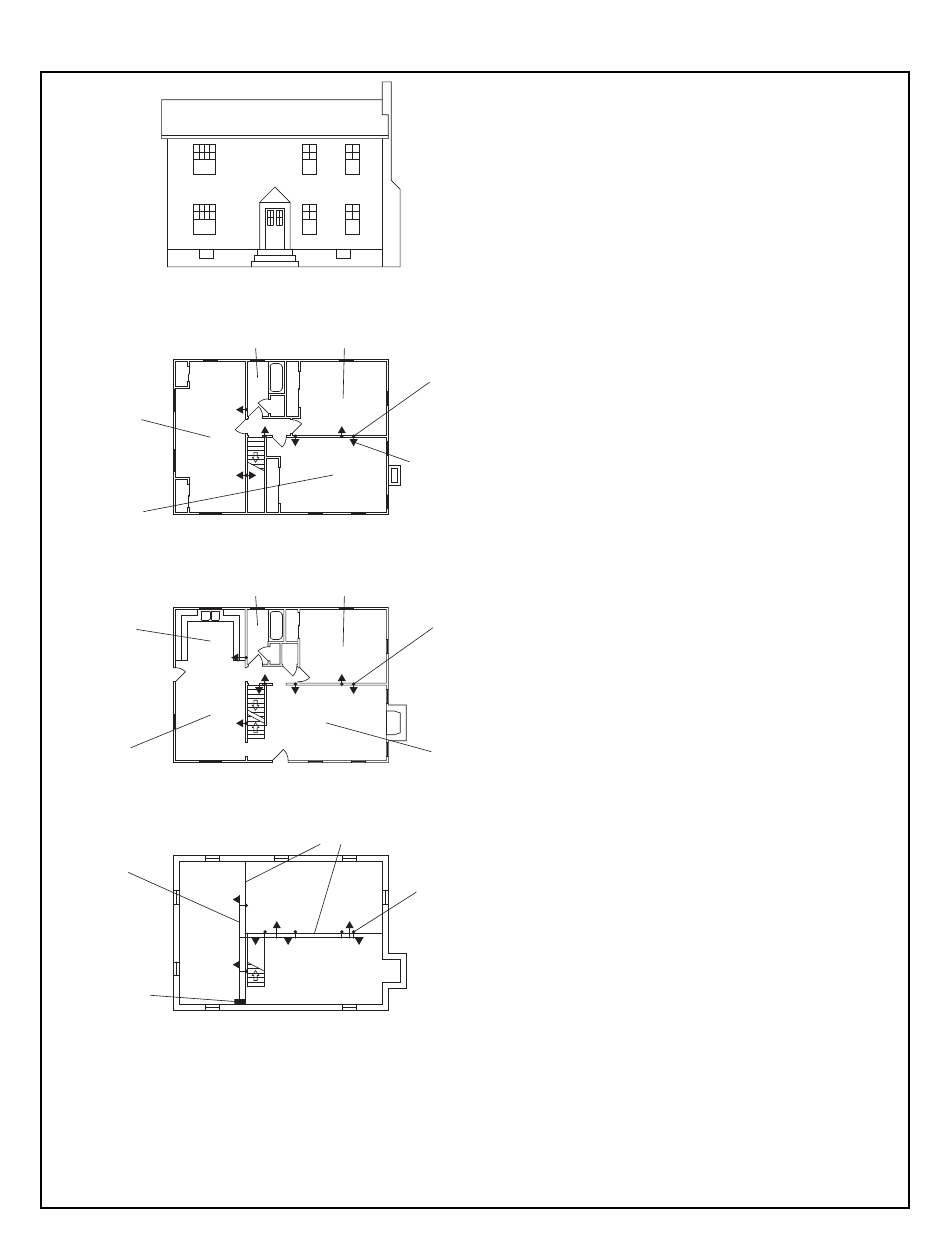

SAMPLE DRY PIPE SYSTEM LAYOUT
1870 SQ. FT. HOUSE
Specifications
• Living Space: 1870 sq. ft
• Air Temperature: 0°F
• Pipe & Fittings: 1 in. CPVC
• System Volume: 8.6 gal
• Sprinklers: Horizontal Sidewall
TY1334, K=4.2
• Coverage Area: 14 ft x 14 ft
• Model RCP-1 Panel Outlet Flow: 32.1 GPM
• Initial Air Pressure: 14 psi
• Water Delivery Time with a 1 in. Model RCP-1
Panel and water source to the Panel inlet as
follows:
SIX
1 INCH RISERS
- 50 psi static/45 psi residual /
FROM FIRST
32.1 GPM flow: 8.7 seconds
FLOOR
- 60 psi static/55 psi residual /
32.1 GPM flow: 7.4 seconds
- 70 psi static/65 psi residual /
REMOTE
32.1 GPM flow: 6.7 seconds
SPRINKLER
FOR MAXIMUM
• Water Delivery Time with a 1-1/2 in. Model RCP-1
15-SECOND
Panel and water source to the Panel inlet as
WATER
follows:
DELIVERY
- 50 psi static/45 psi residual /
32.1 GPM flow: 6.9 seconds
- 60 psi static/55 psi residual /
SIX
32.1 GPM flow: 6.1 seconds
1 INCH RISERS
- 70 psi static/65 psi residual /
UP AND
32.1 GPM flow: 5.4 seconds
DOWN
NOTES:
1. A dry system is used to facilitate seasonal shut down of the house.
Consequently an air temperature of 0°F was used for this example.
2. Horizontal Sidewall Sprinklers are used to allow the system to com-
pletely drain.
3. The Model RCP-1 Panel outlet flow is based on the least available
water flow to hydraulically support the two most remote sprinklers at
16 GPM each.
4. Water delivery to the most remote sprinkler is calculated assuming the
LIVING
highest possible initial air pressure based on a 10 to 14 psi automatic
ROOM
air supply.
5. This example is for reference only. Volumes and delivery times vary
depending on the size of the living space and system piping layout
and design, as well as available water supply. Designers should reflect
system layout and available water supply as accurately as possible for
SIX
determining water delivery times.
1 INCH RISERS
UP TO FIRST
AND SECOND
FLOORS
FIGURE 1
