Cutler-Hammer VCP-W Instructions Manual

Electrical ground and test device (simple) con-edison customer interlocked version per con edison specification eo-2022
Hide thumbs Also See for VCP-W:
Table of Contents

Advertisement

Quick Links

Download this manual

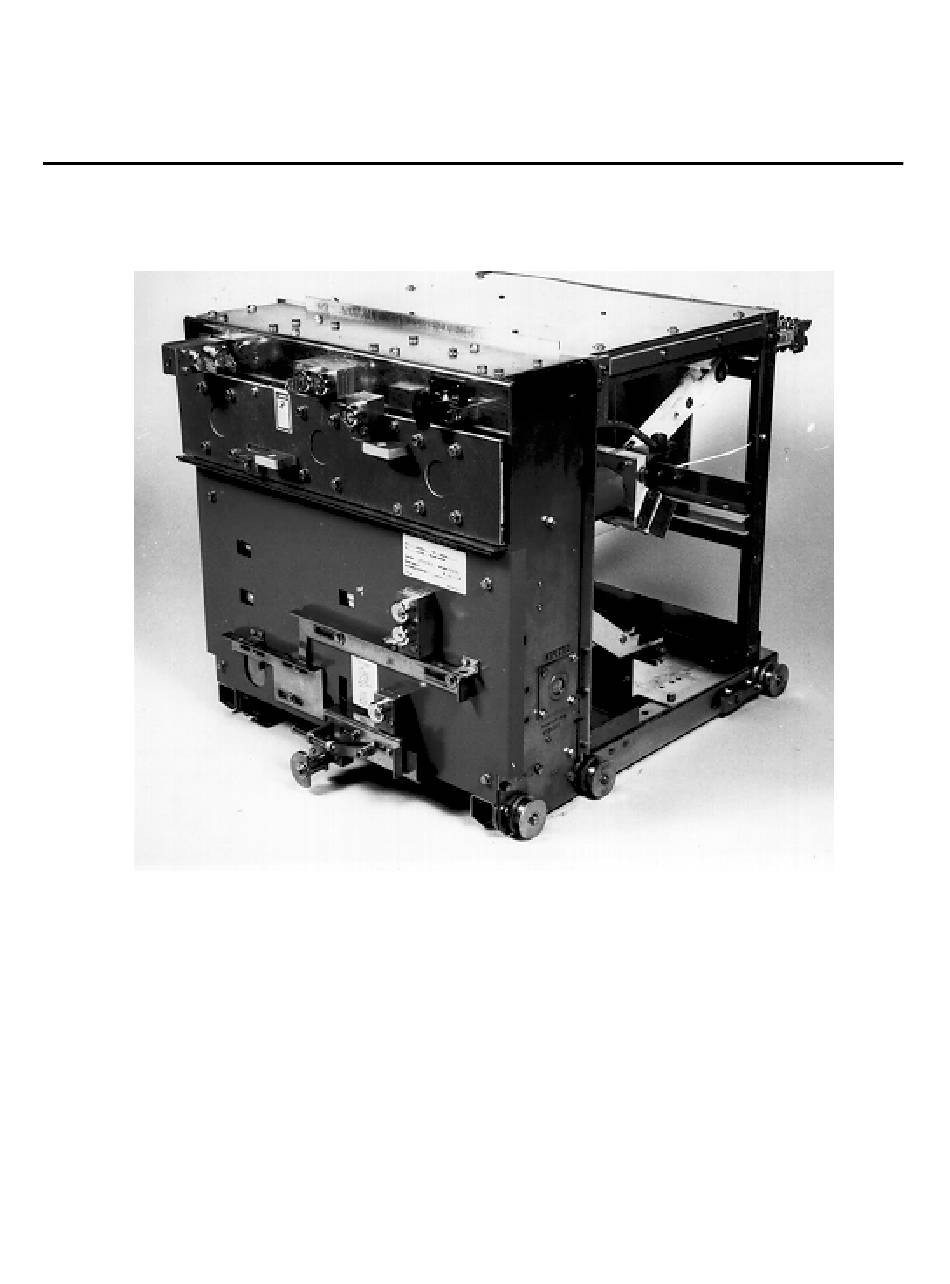

Instructions for the Type VCP-W
Electrical Ground and Test Device (Simple)
Con-Edison Customer Interlocked Version
Per Con Edison Specification EO-2022
I.L. 4A35310B
____________________________________________________________
Cutler-Hammer, Inc.
Cutler-Hammer Products
Electrical Distribution Products Operations
Coraopolis, Pa. 15108
Effective March 1999
____________________________________________________________

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VCP-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cutler-Hammer VCP-W

Summary of Contents for Cutler-Hammer VCP-W

  • Page 1 Instructions for the Type VCP-W Electrical Ground and Test Device (Simple) Con-Edison Customer Interlocked Version Per Con Edison Specification EO-2022 I.L. 4A35310B ____________________________________________________________ Cutler-Hammer, Inc. Cutler-Hammer Products Electrical Distribution Products Operations Coraopolis, Pa. 15108 Effective March 1999 ____________________________________________________________...

  • Page 2: Table Of Contents

    I.L. 4A35310B The VCP-W Electrical Ground and Test Device (Simple) Con Ed Customer Interlocked Version Contents: Page Number Introduction ....................1 Description ....................1 2.1 Power Grounding Switch Operation ..........3 2.1.1 Closing..................3 2.1.2 Opening ..................3 2.2 VCP-W Interlocks and Safety Features ..........3 2.3 Con Edison Interlocks- Basic Elements Description......

  • Page 3: Introduction

    The Electrical Ground and Test Device is a drawout element that can be inserted into a circuit breaker compartment in the same manner as a type VCP-W circuit breaker, see Figure 2.0.1. Vac Clad-W switchgear is a two-high arrangement. In the lower compartment the top terminals normally connect to the main bus and the bottom terminals normally connect to the incoming line or feeders.
  • Page 4 I.L. 4A35310B FIGURE 2.0.1.G & T DEVICE FIGURE 2.0.2 LOWER COMPARTMENT G & T DEVICE FIGURE 2.0.3 UPPER COMPARTMENT FIGURE 2.0.4. GROUND SWITCH G & T DEVICE CLOSED FIGURE 2.1.1.1. MANUAL “PUSH TO OPEN” FIGURE 2.1.2.1. MANUAL “PUSH TO BUTTON COVERED OPEN”...

  • Page 5: Power Grounding Switch Operation

    Figure 2.1.2.2. The “OPEN” push-button must be depressed. For safety reasons, the switch is prevented from opening in less than 20 seconds after closing. 2.2 VCP-W INTERLOCKS AND SAFETY FEATURES The device is designed to provide as many interlocks and safety features as practical for the personnel performing any of the operations described earlier.

  • Page 6: Con Edison Interlocks- Basic Elements Description

    G & T device "OPEN". In the Cutler-Hammer design, the K2 lock function is not needed. It is not possible for an operator of the G & T device to manually charge the closing springs or to manually close the device to ground. Therefore, the K2 lock will be a two cylinder transfer key lock for consistency with the Con Ed operating procedure, see Figure 2.3.2.
  • Page 7 I.L. 4A35310B FIGURE 2.1.2.2 REMOTE OPERATING STATION FIGURE 2.3.1 KEY LOCK K1 INTERLOCK FIGURE 2.3.2 KEY LOCK K2 INTERLOCK FIGURE 2.3.3 KEY LOCK K3 INTERLOCK FIGURE 2.3.4 KEY LOCK K4 INTERLOCK FIGURE 2.3.5 KEY LOCK K5 INTERLOCK ____________________________________________________________________________________________ March 1999...

  • Page 8: Operation

    "OPEN"/"CLOSE" push-button station, See Figure 2.3.6. In the Cutler-Hammer design, the selector switch functions as described below. In the "OFF" position, the G & T device is electrically disabled. The selector switch is padlockable in the "OFF" position. This provides the padlockable function for the Key Locks K1 and K2.
  • Page 9 See Figure 3.2.7. Remember, the G & T device is longer than the standard VCP-W breaker. Optional use of a ramp for the BOTTOM (floor level) switchgear compartment. Engage the ramp onto the fixed rails of the switchgear bottom compartment. Push the G & T device onto the ramp checking to insure the wheels of the G &...
  • Page 10 I.L. 4A35310B 10. Key KC is removed from Key Lock K3 and is inserted into Key Lock K2 and is rotated, See Figures 3.2.11 and 3.2.12. Key KC is now held captive in Key Lock K2 and Key KB is now available. 11.

  • Page 11: Applying Grounds To The Incoming Feeder

    I.L. 4A35310B APPLYING GROUNDS TO THE INCOMING FEEDER FIGURE 3.2.1 INSERT KEY KU IN KEY LOCK K1 FIGURE 3.2.2 REMOVE KEY KB FROM LOCK K1 AND ROTATE FIGURE 3.2.3 INSERT KEY KB IN FIGURE 3.2.4 REMOVE KEY KC FROM KEY LOCK K2 AND ROTATE KEY KC KEY LOCK K2 FIGURE 3.2.5 INSERT KEY KC IN KEY LOCK K3 AND FIGURE 3.2.6 LEVERING LATCH HANDLE IS...
  • Page 12 I.L. 4A35310B APPLYING GROUNDS TO THE INCOMING FEEDER CONT. FIGURE 3.2.7 G & T DEVICE ON EXTENSION RAILS FIGURE 3.2.8 G & T DEVICE ON RAMP FIGURE 3.2.9 G & T DEVICE LEVERED IN TO THE CONNECT POSITION FIGURE 3.2.10 LEVERING DEVICE LOCKED FIGURE 3.2.11 REMOVE KEY KC FROM KEY LOCK K3 FIGURE 3.2.12 INSERT KEY KC IN KEY LOCK K2 AND ROTATE.
  • Page 13 I.L. 4A35310B APPLYING GROUNDS TO THE INCOMING FEEDER (CONT) FIGURE 3.2.13 REMOVE KEY KB FROM KEY FIGURE 3.2.14 INSERT KEY KB IN KEY LOCK K2 LOCK K1 AND ROTATE KEY KU FIGURE 3.2.15 VERIFY THAT THE SELECTOR SWITCH FIGURE 3.2.16 INSERT REMOTE OPERATING IS IN THE “OFF”...
  • Page 14 I.L. 4A35310B APPLYING GROUNDS TO THE INCOMING FEEDER CONT. FIGURE 3.2.19 TURN SELECTOR SWITCH TO “OFF” POSITION FIGURE 3.2.20 REMOVE REMOTE OPERATING STATION PLUG FIGURE 3.2.21 ROTATE KEY KU AND REMOVE KEY KB FROM KEY LOCK K1 ____________________________________________________________________________________________ March 1999...
  • Page 15 I.L. 4A35310B REMOVING GROUNDS FROM THE INCOMING FEEDER The Key KB, which is used to start the process of removing the grounds from the incoming feeder, is obtained from the lock box on the premises. Key KB is inserted into Key Lock K1 and Key KU is rotated, See Figure 3.3.1. The switch which is associated with Key Lock K1 closes.
  • Page 16 I.L. 4A35310B 15. Key KC is removed from Key Lock K3 and is inserted into Key Lock K2 and is rotated, see Figures 3.3.14 and 3.3.15. Key KC is now held captive in Key Lock K2 and Key KB is now available. 16.

  • Page 17: Removing Grounds From The Incoming Feeder

    I.L. 4A35310B REMOVING GROUNDS FROM THE INCOMING FEEDER FIGURE 3.3.1 INSERT KEY KB IN KEY LOCK FIGURE 3.3.2 VERIFY THAT THE SELECTOR K1 AND ROTATE KEY KU SWITCH IS IN THE “OFF” POSITION FIGURE 3.3.3 INSERT REMOTE OPERATING STATION FIGURE 3.3.4 TURN SELECTOR SWITCH TO STATION PLUG “OPEN”...
  • Page 18 I.L. 4A35310B REMOVING GROUNDS FROM THE INCOMING FEEDER CONT. FIGURE 3.3.7 REMOVE REMOTE OPERATING FIGURE 3.3.8 ROTATE KEY KU AND REMOVE STATION PLUG KEY KB FROM KEY LOCK K1 FIGURE 3.3.9 INSERT KEY KB IN KEY LOCK FIGURE 3.3.10 REMOVE KEY KC FROM KEY K2 AND ROTATE KEY KC LOCK K2 FIGURE 3.3.11 INSERT KEY KC IN KEY LOCK...
  • Page 19 I.L. 4A35310B FIGURE 3.3.13 G & T DEVICE ON EXTENSION FIGURE 3.3.14 REMOVE KEY KC FROM KEY RAILS LOCK K3 FIGURE 3.3.15 INSERT KEY KC IN KEY LOCK K2 FIGURE 3.3.16 REMOVE KEY KB FROM KEY LOCK AND ROTATE FIGURE 3.3.17 INSERT KEY KB IN KEY LOCK FIGURE 3.3.18 REMOVE KEY KU FROM KEY LOCK K1 K1 AND ROTATE KEY KU ____________________________________________________________________________________________...
  • Page 20 Install the extension rails in the breaker compartment. Lift the G & T device and load it on the extension rails with extreme care, see Figure 3.4.7. Remember, the G & T device is longer than the standard VCP-W breaker.
  • Page 21 I.L. 4A35310B The umbilical cord of the Remote Operating Station is inserted into the receptacle on the front of the G & T device, see Figure 3.4.16. The Remote Operating Station consists of "OPEN" and "CLOSE" push- button switches. The three position "OPEN/OFF/CLOSE" Selector Switch is then moved from the "OFF" position to the "CLOSE"...
  • Page 22 I.L. 4A35310B Key KU is rotated in Key Lock K1. The G & T device is locked in the “OPEN” position by electrically disabling the G & T device’s “CLOSE” circuit. Key KB is now available in Key Lock K1. Key KB is removed from Key Lock K1 and is locked in the lock box on the premises, see Figure 3.4.35 The G &...

  • Page 23: Procedure For Testing Of The Incoming Feeder

    I. L. 4A35310B PROCEDURE FOR TESTING OF THE INCOMING FEEDER FIGURE 3.4.1 INSERT KEY KU IN KEY FIGURE 3.4.2 REMOVE KEY KB FROM KEY LOCK K1 AND ROTATE KB FROM KEY LOCK K1 FIGURE 3.4.3 I INSERT KEY KB IN KEY LOCK FIGURE 3.4.4 REMOVE KEY KC FROM KEY K2 AND ROTATE KEY KC LOCK K2...
  • Page 24 I. L. 4A35310B PROCEDURE FOR TESTING OF THE INCOMING FEEDER CONT. FIGURE 3.4.7 G&T DEVICE ON EXTENSION FIGURE 3.4.8 G&T DEVICE ON RAMP RAILS FIGURE 3.4.9 G&T DEVICE LEVERED IN TO FIGURE 3.4.10 LEVERING IN DEVICE - LOCKED THE CONNECT POSITION FIGURE 3.4.11 REMOVE KEY KC FROM KEY LOCK K3 FIGURE 3.4.12 INSERT KEY KC IN KEY...
  • Page 25 I. L. 4A35310B PROCEDURE FOR TESTING OF THE INCOMING FEEDER CONT. FIGURE 3.4.13 REMOVE KEY KB FROM KEY FIGURE 3.4.14 INSERT KEY KB IN KEY LOCK K1 LOCK K2. AND ROTATE KEY KU FIGURE 3.4.15 VERIFY THAT THE SELECTOR FIGURE 3.4.16 INSERT REMOTE OPERATING SWITCH IS THE “OFF”...
  • Page 26 I. L. 4A35310B PROCEDURE FOR TESTING OF THE INCOMING FEEDER CONT. FIGURE 3.4.19 TURN SELECTOR SWITCH TO FIGURE 3.4.20 ROTATE KEY KU AND REMOVE “OFF” POSITION KEY KB FROM KEY LOCK K1 FIGURE 3.4.22 CLOSED LOCKING DEVICE MOVED TO THE RIGHT AND LOCKED BY ROTATING KEY KD FIGURE 3.4.21 INSERT KEY KB IN KEY LOCK K4 FIGURE 3.4.23 REMOVE KEY KD FROM KEY FIGURE 3.4.24 INSERT KEY KD IN KEY LOCK K5...
  • Page 27 I. L. 4A35310B PROCEDURE FOR TESTING OF THE INCOMING FEEDER CONT. FIGURE 3.4.25 OPEN TEST PORT SHUTTER FIGURE 3.4.26 PROBES INSTALLED & LOCKED IN PLACE FIGURE 3.4.27 REMOVE KEY KD FROM FIGURE 3.4.28 INSERT KEY KD IN KEY LOCK K4 KEY LOCK K5 AND ROTATE FIGURE 3.4.29 REMOVE KEY KB FROM KEY...
  • Page 28 I. L. 4A35310B PROCEDURE FOR TESTING OF THE INCOMING FEED CONT. FIGURE 3.4.31 TURN SELECTOR SWITCH TO “OPEN” FIGURE 3.4.32 PUSH “OPEN” PUSH-BUTTON POSITIONS FIGURE 3.4.33 TURN SELECTOR TO “OFF” POSITION FIGURE 3.4.34 REMOVE REMOTE OPERATING STATION PLUG FIGURE 3.4.35 ROTATE KEY KU AND REMOVE KEY KB FROM KEY LOCK K1 ____________________________________________________________________________________________ March 1999...
  • Page 29 I. L. 4A35310B 3.5 PROCEDURE FOR REMOVING THE TEST PROBES The Key KB, which is used to start the process of removing the Test Probes, is obtained from the lock box on the premises. Key KB is inserted into Key Lock K1 and Key KU is rotated, see Figure 3.5.1. The switch which is associated with Key Lock K1 closes.
  • Page 30 I. L. 4A35310B 17. The three position "OPEN/OFF/CLOSE" Selector Switch on the front of the G & T device is moved from the "OFF" to the "OPEN" position, see Figure 3.5.16. 18. Use the Remote Operating Station to "OPEN" the G & T device via the "OPEN" push-button switch from the safest distance, see Figure 3.5.17.

  • Page 31: Procedure For Removing The Test Probes

    I. L. 4A35310B PROCEDURE FOR REMOVING THE TEST PROBES FIGURE 3.5.1 INSERT KEY KB IN KEY LOCK K1 FIGURE 3.5.2 VERIFY THAT THE SELECTOR AND ROTATE KEY KU SWITCH IS IN THE “OFF” POSITION FIGURE 3.5.3 INSERT REMOTE OPERATING FIGURE 3.5.4 TURN SELECTOR SWITCH STATION PLUG TO “CLOSE”...
  • Page 32 I. L. 4A35310B PROCEDURE FOR REMOVING THE TEST PROBES CONT FIGURE 3.5.7 ROTATE KEY KU AND REMOVE FIGURE 3.5.8 INSERT KEY KB IN KEY KEY KB FROM KEY LOCK K1 LOCK K4 FIGURE 3.5.9 CLOSED LOCKING DEVICE MOVED FIGURE 3.5.10 REMOVE KEY KD FROM TO THE RIGHT &...
  • Page 33 I. L. 4A35310B PROCEDURE FOR REMOVING THE TEST PROBES CONT FIGURE 3.5.13 INSERT KEY KD IN KEY LOCK FIGURE 3.5.14 REMOVE KEY KB FROM KEY K4 AND ROTATE LOCK K4 FIGURE 3.5.15 INSERT KEY KB IN KEY LOCK FIGURE 3.5.16 TURN SELECTOR SWITCH TO K1 AND ROTATE KEY KU “OPEN”...
  • Page 34 I. L. 4A35310B PROCEDURE FOR REMOVING THE TEST PROBES CONT FIGURE 3.5.19 REMOVE OPERATING FIGURE 3.5.20 ROTATE KEY KU AND REMOVE STATION PLUG KEY KB FROM KEY LOCK K1 FIGURE 3.5.21 INSERT KEY KB IN KEY FIGURE 3.5.22 REMOVE KEY KC FROM LOCK K2 AND ROTATE KEY KC KEY LOCK K2 FIGURE 3.5.23 INSERT KEY KC IN KEY LOCK...
  • Page 35 I. L. 4A35310B PROCEDURE FOR REMOVING THE TEST PROBES CONT FIGURE 3.5.25 G&T DEVICE ON FIGURE 3.5.26 REMOVE KEY KC FROM EXTENSION RAILS KEY LOCK K3 FIGURE 3.5.27 INSERT KEY KC IN FIGURE 3.5.28 REMOVE KEY KB FROM KEY LOCK K2 AND ROTATE KEY LOCK K2 FIGURE 3.5.29 INSERT KEY KB IN KEY FIGURE 3.5.30 REMOVE KEY KU FROM...

  • Page 36: Appendix A - Front View

    I. L. 4A35310B Key Lock K1 (Keys KU and KB Floor Tripper Key Lock K2 (Keys KB and KC) K3 Levering Screw Interlock Probe Test Port Code Plate Test Port Padlock (Probes Inserted) Key Lock K3 (Key KC) Manual Trip Button Closed Locking Device Operations Counter Closed Locking Device Padlock...

  • Page 37: Appendix B- Side View - Lower Terminal

    I. L. 4A35310B Key Lock K1 (Keys KU and KB) Key Lock K4 (Keys KB and KD) Test Port Padlock (Probes Selector Switch Padlock Inserted) Manual Trip Prevent Padlock Selector Switch K3 Levering Screw Interlock Key Lock K5 (Key KD) Key Lock K3 (KC) Lever Latch Handle Closed Locking Device...

  • Page 38: Appendix C - Side View - Upper Terminal

    I. L. 4A35310B Key Lock K1 (Keys KU and KB) Key Lock K4 (Keys KB and KD) Test Port Padlock (Probes Inserted) Selector Switch Padlock Manual Trip Prevent Padlock Selector Switch K3 Levering Screw Interlock Key Lock K5 (Key KD) Key Lock K3 (KC) Lever Latch Handle Closed Locking Device...

  • Page 39: Appendix D - Control Scheme - Power Trip

    I. L. 4A35310B KEY INTERLOCK CONTACT (NORMALLY CLOSED, ELECTRICALLY ENABLED) CLOSED KEY INTERLOCK CONTACT (NORMALLY CLOSED, OPEN IN THE EXTENDED BOLT POSITION SELECT OPEN SWITCH CONTACT SELECT CLOSE SWITCH CONTACT ANTI PUMP RELAY CHARGING MOTOR LIMIT SWITCH (SHOWN - SPRING DISCHARGED) SHUNT TRIP COIL TIME DELAY RELAY: SEALS IN TO COMPLETE CHARGING AND CLOSING, 20 SECONDS DELAY ON DROPOUT, BLOCK TRIPPING FOR 20...

  • Page 40: Appendix E - Switchgear Code Plate Requirements

    I. L. 4A35310B APPENDIX E - SWITCHGEAR CODE PLATE REQUIREMENTS ____________________________________________________________________________________________ March 1999...
  • Page 41 I. L. 4A35310B NOTES ____________________________________________________________________________________________ March 1999...
  • Page 42 I. L. 4A35310B NOTES ____________________________________________________________________________________________ March 1999...
