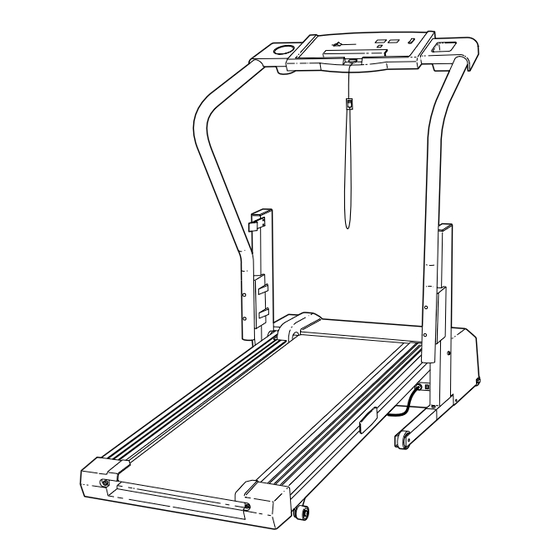

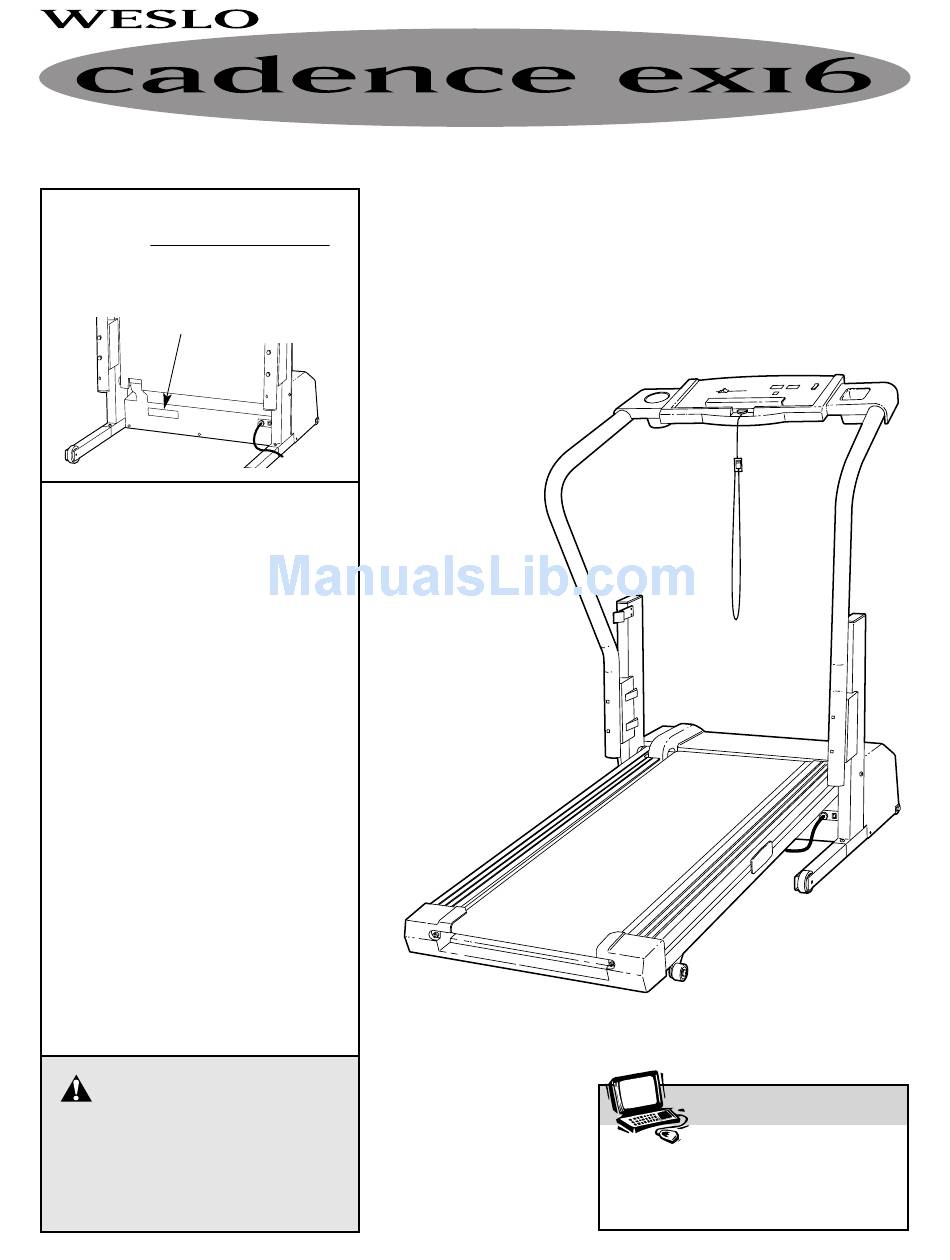

Model No. WLTL39201
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal
QUESTIONS?
If you have questions, or if there
are missing or damaged parts,
we will guarantee complete satis-
faction through direct assistance
from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
®
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Weslo WLTL39201
Summary of Contents for Weslo WLTL39201
- Page 1 ® Model No. WLTL39201 Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? If you have questions, or if there are missing or damaged parts, we will guarantee complete satis- faction through direct assistance from our factory.
-
Page 2: Table Of Contents
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 7. To purchase a surge suppressor, see your local WESLO dealer or call 1-800-806- 3651 and order part number 146148. 12. Failure to use a properly functioning surge suppressor could result in damage to the con- trol system of the treadmill. - Page 3 14. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 4 if the tread- mill is not working properly.) 15.
-
Page 4: Before You Begin
The model number of the treadmill is WLTL39201. The serial number can be found on a decal attached to the tread- mill (see the front cover of this manual for the location). -
Page 5: Assembly
ASSEMBLY Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the included allen wrench and your own phillips screwdriver Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. - Page 6 4. Attach the Left Handrail (4) to the left Handrail Spacer (3) and the left Upright (38) with two Handrail Bolts (1), two Handrail Washers (80), and two Internal Washers (2) as shown. Do not tighten the Handrail Bolts yet. Note: If you are 5’...
-
Page 7: To Plug In The Power Cord
(see drawing 1 at the right). To purchase a surge sup- pressor, see your local WESLO dealer or call 1-800-806-3651 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). -
Page 8: Battery Installation
DIAGRAM OF THE CONSOLE Speed Control CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turning on the power. • Always wear the clip (see the drawing above) while using the treadmill. When the key is removed from the console, the walking belt will stop. - Page 9 Reset the speed control. Slide the speed control to the RESET position. Note: Each time the walking belt is stopped, the speed control must be moved to the RESET position before the walking belt can be restarted. Start the walking belt. After you have moved the speed control to the RESET position, slowly slide it to the right until the walking belt begins to move at slow speed.
-
Page 10: How To Fold And Move The Treadmill
HANDRAIL HEIGHT ADJUSTMENT The Handrails (4, 32) can be adjusted to either of two heights. Before adjusting the Handrails, remove the key and unplug the power cord. Remove the four Console Screws (5). While a second per- son holds the Console Base (87), remove the Handrail Bolts (1), Handrail Washers (80), and Internal Washers (2). -
Page 11: How To Move The Treadmill
HOW TO MOVE THE TREADMILL Before moving the treadmill, convert the treadmill to the storage position as described on page 10. Make sure that the storage latch is locked fully over the catch. 1. Hold the upper ends of the handrails. Place one foot near one of the wheels as shown. -
Page 12: Troubleshooting
MAINTENANCE AND TROUBLE-SHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a. - Page 13 PROBLEM: The walking belt is off-center or slips when walked on SOLUTION: a. If the walking belt is off-center, first remove the key and UNPLUG THE POWER CORD. If the walking belt has shifted to the left, use the allen wrench to turn the left rear roller bolt clockwise 1/2 of a turn;...
-
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems. The following guidelines will help you to plan your exercise program. For more detailed exercise informa- tion, obtain a reputable book or consult your physician. -
Page 15: Exercise Frequency
EXERCISE FREQUENCY To maintain or improve your condition, complete three workouts each week, with at least one day of rest SUGGESTED STRETCHES The correct form for several basic stretches is shown in the draw- ings at the right. Move slowly as you stretch—never bounce. 1. -
Page 16: Ordering Replacement Parts
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING in the center of this manual). WESLO is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase. - Page 17 REMOVE THIS EXPLODED DRAWING AND PART LIST FROM THE MANUAL Save this EXPLODED DRAWING and PART LIST for future reference. Note: Specifications are subject to change without notice. For information about ordering replacement parts, see the back cover of the User’s Manual.
- Page 18 PART LIST—Model No. WLTL39201 Key No. Qty. Description Handrail Bolt Handrail Star Washer Handrail Spacer Left handrail Console Screw Key/Clip Incline Wire Harness Latch Screw Speed Potentiometer Speed Control Console Assembly Battery Cover Wire Harness Clip Belt Guide Screw Console Rack Screw...
- Page 19 EXPLODED DRAWING—Model No. WLTL39201 R0202A...
