Model No. WLTL29820
Serial No.
Write the serial number in the
space above for future reference.
Serial Number
Decal
QUESTIONS?
If you have questions, or if there
are missing parts, we will guar-
antee complete satisfaction
through direct assistance from
our factory.
TO AVOID DELAYS, PLEASE
CALL DIRECT TO OUR TOLL-
FREE CUSTOMER HOT LINE.
The trained technicians on our
Customer Hot Line will provide
immediate assistance, free of
charge to you.
CUSTOMER HOT LINE:
1-800-999-3756
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
USER'S MANUAL
Visit our website at
www.weslo.com
new products, prizes,
fitness tips, and much more!
Advertisement
Table of Contents
Related Manuals for Weslo WLTL29820
Summary of Contents for Weslo WLTL29820

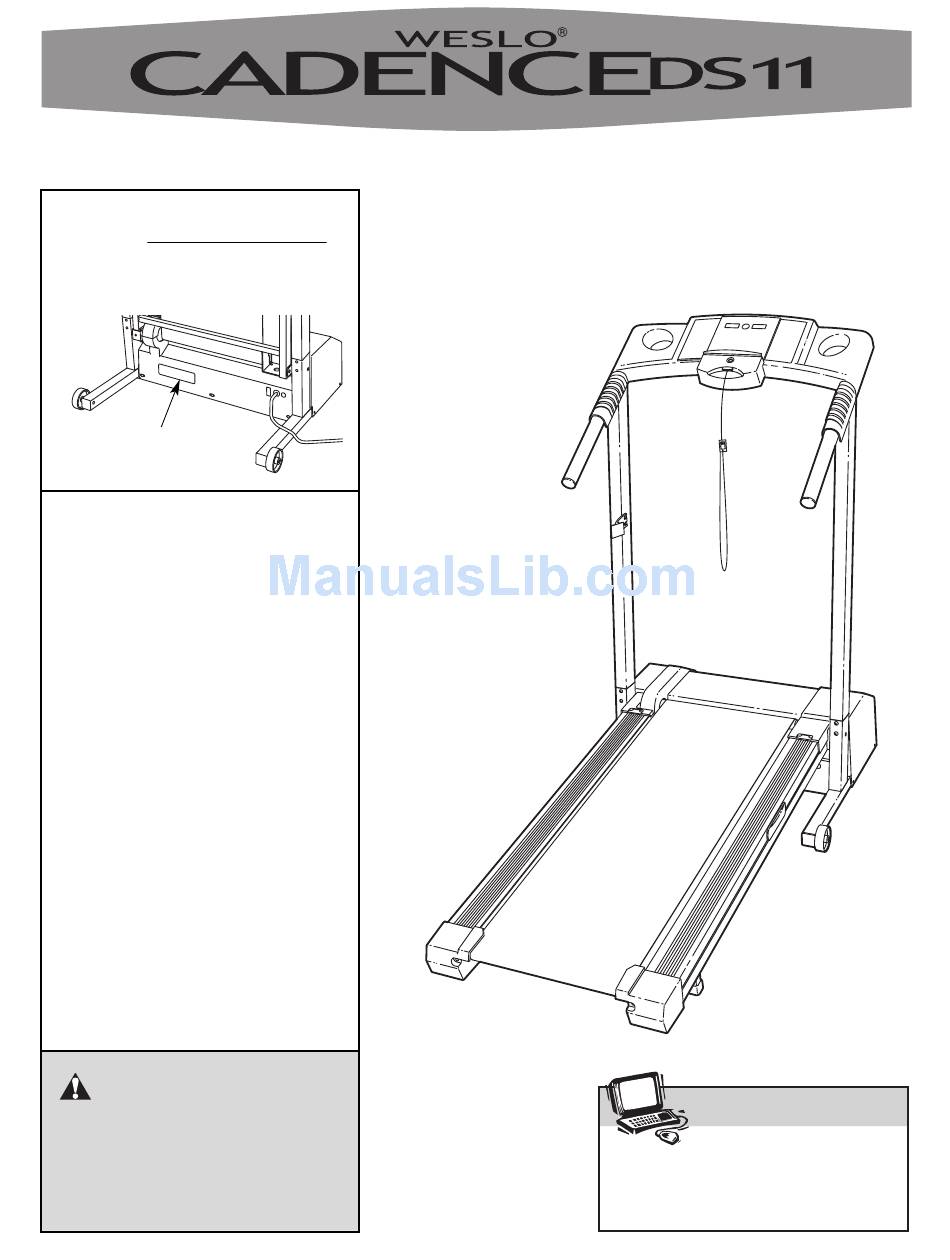

- Page 1 Model No. WLTL29820 Serial No. Write the serial number in the space above for future reference. Serial Number Decal QUESTIONS? If you have questions, or if there are missing parts, we will guar- antee complete satisfaction through direct assistance from our factory.
-
Page 2: Table Of Contents
11. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. To purchase a surge suppressor, see your local WESLO dealer or call 1-800-806- 3651 and order part number 146148. 12. Failure to use a properly functioning surge suppressor could result in damage to the con- trol system of the treadmill. - Page 3 16. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed. 17. Never leave the treadmill unattended while it is running. Always remove the key and unplug the power cord when the treadmill is not in use.
-
Page 4: Before You Begin
The model number of the treadmill is WLTL29820. The serial num- ber can be found on a decal attached to the treadmill (see the front cover of this manual for the location). -
Page 5: Assembly
ASSEMBLY Assembly requires two persons. Set the treadmill in a cleared area and remove all packing materials. Do not dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is coated with high-performance lubricant. During shipping, a small amount of lubricant may be transferred to the top of the walking belt or the shipping carton. - Page 6 3. Insert a Plastic Shim (9) into each side of the post on the right side of the Base (38). Next, hold the Right Upright (15) so the lower end is turned as shown, and insert it into the Base. Make sure that the Wire Harness (53) does not fall into the top of the Right Upright.
- Page 7 6. Insert the Battery Cover (12) into the Console Base (87), with the hinges in the position shown. The Battery Cover should pivot down, away from the Console Base. 7. Hold the Console (11) near the Console Base (87). Touch the Right Handrail (94) to discharge any static. Locate the two wires in the Wire Harness (53) that have L-shaped connectors on the ends.
-
Page 8: Operation And Adjustment
(see drawing 1 at the right). To purchase a surge sup- pressor, see your local WESLO dealer or call 1-800-806-3651 and order part number 146148. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup- pressor (TVSS). -
Page 9: Diagram Of The Console
DIAGRAM OF THE CONSOLE CAUTION: Before operating the console, read the following precautions. • Do not stand on the walking belt when turning on the power. • Always wear the clip (see the drawing below) while using the treadmill. When the key is BATTERY INSTALLATION The console requires two... -
Page 10: How To Fold And Move The Treadmill
Follow the steps below to operate the console. Insert the key fully into the console. Inserting the key will not turn on the displays. The displays will turn on when the ON/RESET button is pressed or when the walking belt is started. Note: If you just installed batteries, the displays will already be on. -
Page 11: How To Fold/Move Treadmill
HOW TO FOLD AND MOVE THE TREADMILL HOW TO FOLD THE TREADMILL FOR STORAGE Before folding the treadmill, unplug the power cord. CAUTION: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower or move the treadmill. 1. -
Page 12: Maintenance And Troubleshooting
MAINTENANCE AND TROUBLESHOOTING Most treadmill problems can be solved by following the steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, please call our Customer Service Department toll- free at 1-800-999-3756, Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). PROBLEM: The power does not turn on SOLUTION: a. - Page 13 PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that meets all of the specifications described on page 8. b. If the walking belt is overtightened, treadmill perfor- mance may decrease and the walking belt may become damaged.
-
Page 14: Conditioning Guidelines
CONDITIONING GUIDELINES WARNING: Before beginning this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems. The following guidelines will help you to plan your exercise program. For more detailed exercise informa- tion, obtain a reputable book or consult your physician. - Page 15 Training Zone Exercise After warming up, increase the intensity of your exer- cise until your pulse is in your training zone for 20 to 60 minutes. (During the first few weeks of your exer- cise program, do not keep your pulse in your training zone for longer than 20 minutes.) Breathe regularly and deeply as you exercise—never hold your breath.
-
Page 16: Ordering Replacement Parts
• The KEY NUMBER and DESCRIPTION of the desired part(s) (see the PART LIST and the EXPLODED DRAWING in the center of this manual) WESLO is a registered trademark of ICON Health & Fitness, Inc. ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of ninety (90) days from the date of pur- chase. -
Page 17: Part Identification Chart
PART IDENTIFICATION CHART Remove this chart and use it to identify small parts during assembly. Save this chart and the EXPLODED DRAWING/PART LIST for future reference. 3/4” Screw (5)–8 Star Washer (2)–6 (May be an internal Star Washer) Wheel Bolt (41)–2 1”... - Page 18 PART LIST—Model No. WLTL29820 Key No. Qty. Description Front Endcap Screw Star Washer Plastic Tie Left Handrail 3/4” Screw Key/Clip Handrail Washer Incline Leg Shim Wire Cover Console Battery Cover Reed Switch Left Upright Right Upright 1” Bolt Cage Nut...
