33

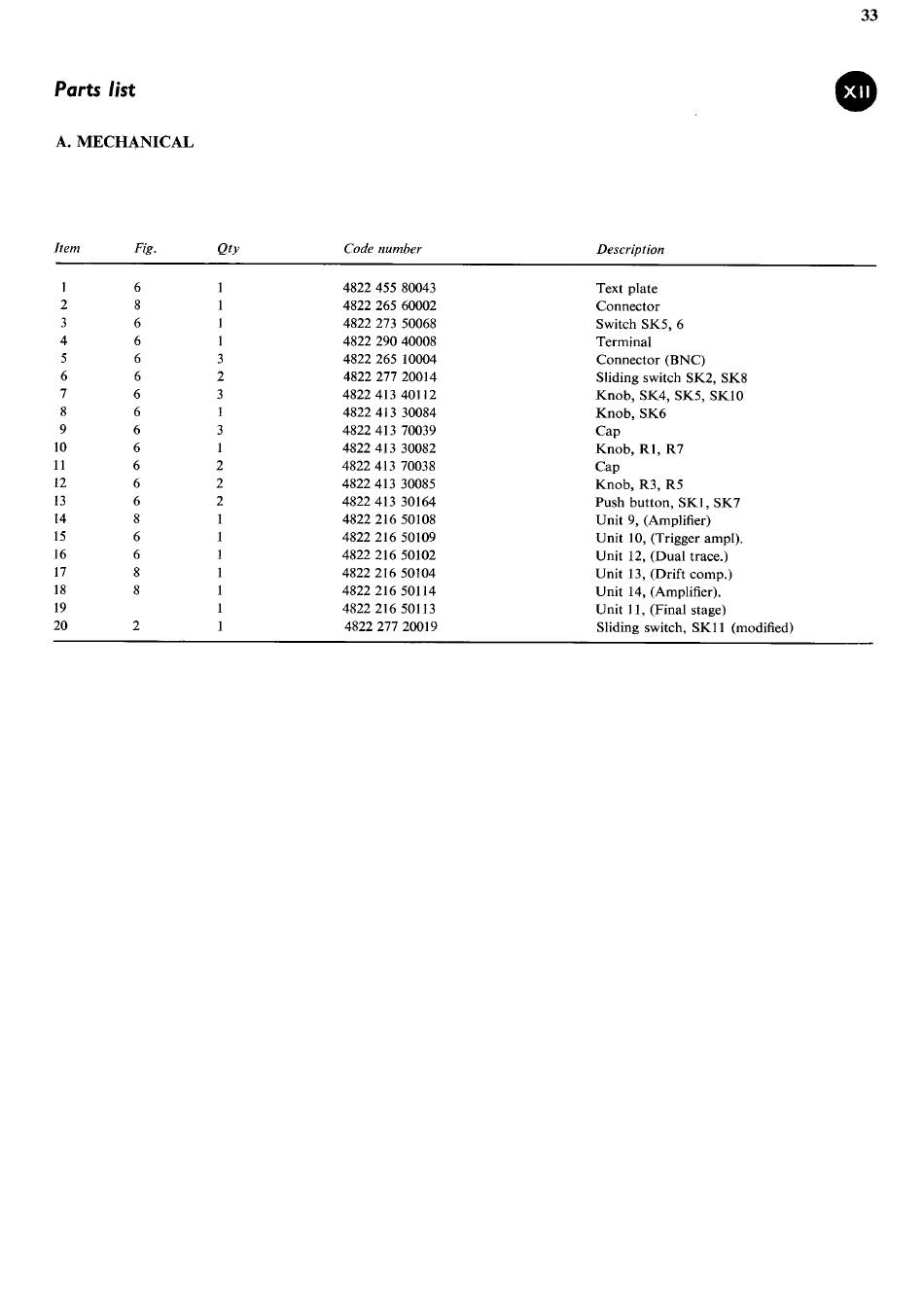

Parts 1 ist
A. MECHANICAL
Item
Fig.
Qty
Code number
Description
1
6
1
4822 455 80043
Text plate
2
8
1
4822 265 60002
Connector
3
6
1
4822 273 50068
Switch SKS, 6
4
6
1
4822 290 40008
Terminal
5
6
3
4822 265 10004
Connector (BNC)
6
6
2
4822 277 20014
Sliding switch SK2, SK8
7
6
3
4822 413 40112
Knob, SK4, SKS, SK10
8
6
1
4822 413 30084
Knob, SK6
9
6
3
4822 413 70039
Cap
10
6
1
4822 413 30082
Knob, R1, R7
11
6
2
4822 413 70038
Cap
12
6
2
4822 413 30085
Knob, R3, RS
13
6
2
4822 413 30164
Push button, SKI, SK7
l4
8
1
4822 216 50108
Unit 9, (Amplifier)
15
6
1
4822 216 50109
Unit 10, (Trigger amply.
16
6
1
4822 216 50102
Unit 12, (Dual trace.)
17
8
1
4822 216 50104
Unit 13, (Drift comp.)
18
8
1
4822 216 50114
Unit 14, (Amplifier).
19
1
4822 216 50113
Unit 11, (Final stage)
20
2
1
4822 277 20019
Sliding switch, SK11 (modified)
