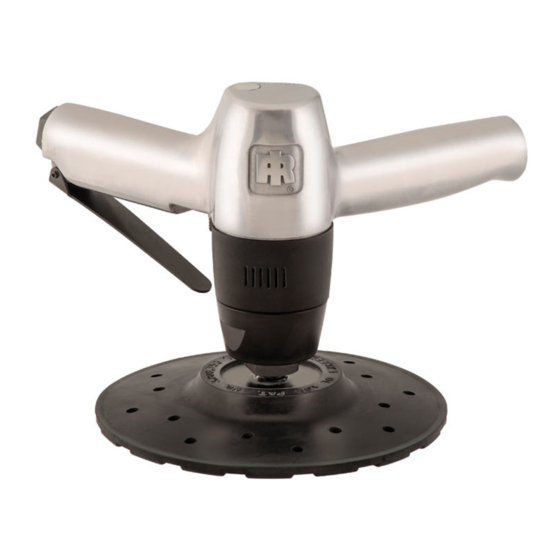

Ingersoll-Rand 7S30L Maintenance Information
Air sanders
Hide thumbs
Also See for 7S30L:
- Operation and maintenance manual (21 pages) ,
- Product information (57 pages) ,
- Product information (57 pages)
Subscribe to Our Youtube Channel
Related Manuals for Ingersoll-Rand 7S30L
Summary of Contents for Ingersoll-Rand 7S30L
- Page 1 16575045 Edition 1 August 2008 Air Sanders 7S30L, 7S48L, 7S60L and 7P24L Models Maintenance Information Save These Instructions...
- Page 2 WARNING Always wear eye protection when operating or performing maintenance on this tool. Always turn off the air supply and disconnect the air supply hose before installing, removing or adjusting any accessory on this tool or before performing any maintenance on this tool. Note: When reading the instructions, refer to exploded diagrams in parts Information Manuals when applicable (see under Related Documentation for form numbers).
- Page 3 Disassembly of the Throttle NOTICE Remove the Inlet Bushing (7) and withdraw the Valve Spring Do not remove the Rear Rotor Bearing (3) unless you have a Spacer (10), Throttle Valve Spring (9) and the Throttle Valve (8). new Bearing on hand for replacement. The old Bearing will be Remove the Throttle Lever Pin (5B), Throttle Lever (5A) and damaged during the removal process.
- Page 4 Assembly of the Tool 11. Using an assembly dowel 3/32” in diameter x 10” long (2.3 mm x 254 mm), align the dowel groove in the Front End Grasping the handle of the Motor Housing in a vise with the Plate, Cylinder, Rear End Plate and Gasket.
- Page 5 Troubleshooting Guide Trouble Probable Cause Solution Low power or low free speed Low air pressure at the Inlet Check the air pressure at the Inlet. The pressure must not exceed 90 psig (6.2 bar/620 kPa). Plugged Inlet Bushing Screen Clean the Screen in a clean, suitable, cleaning solution. If it cannot be cleaned, replace it.
- Page 6 Notes:...
- Page 7 Notes:...
- Page 8 www.irtools.com © 2008 Ingersoll Rand Company...
